Frymaster BIH52 Series - Filter Box Components

4-28

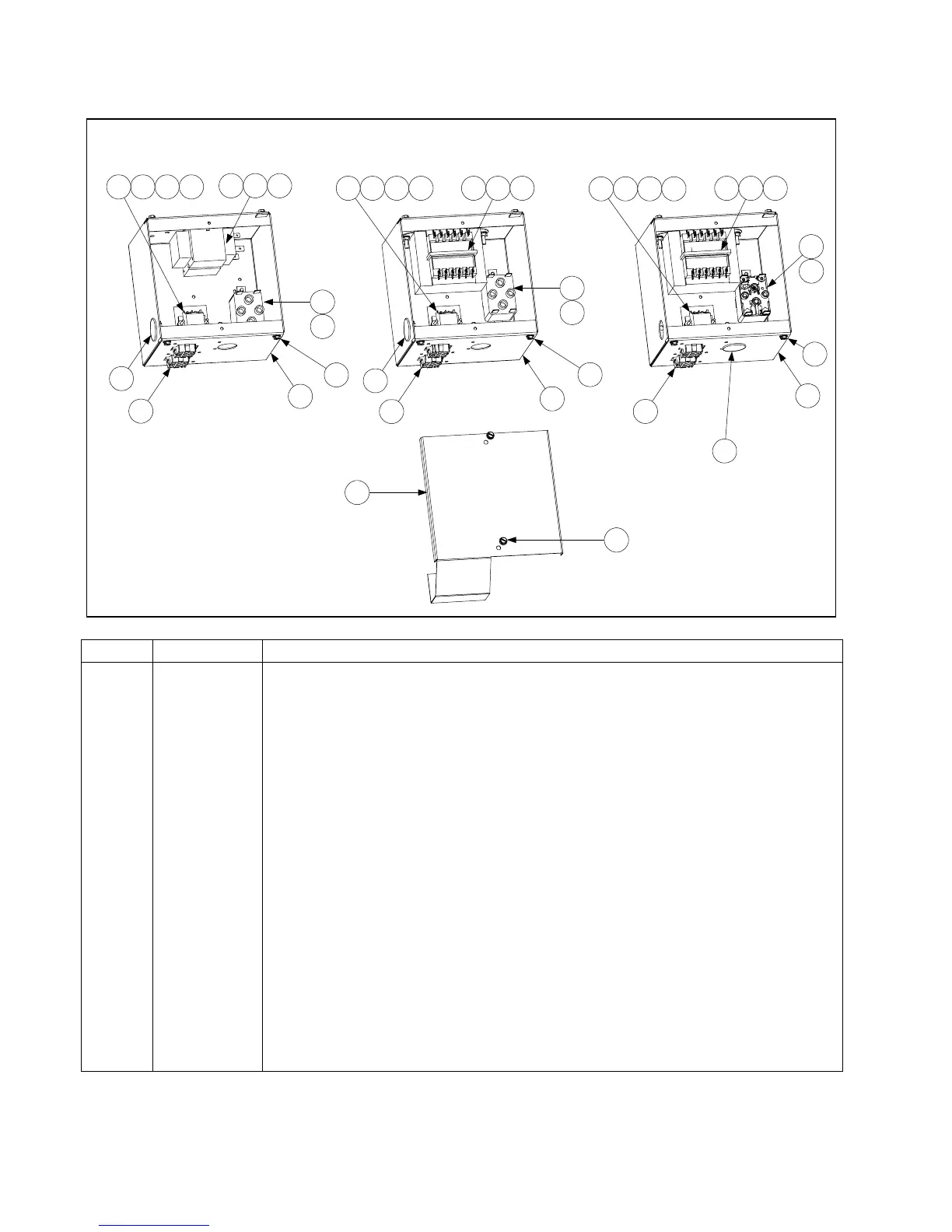

4.4.3 Filter Box Components
120V FILTER BOX 100/120V DUAL-VOLTAGE
FILTER BOX
MULTI-VOLTAGE (CE)
FILTER BOX
11 12 13 14
11 12 13 14
11 12 13 14
86 7
96 7 106 7
3
4
3
4
3
5
1
1
1
2
2
2
15
3
3
3
3
16
16
16
ITEM PART # COMPONENT
1 900-5250 Box, Filter
2 807-0156 Connector, 9-Pin Female
* 807-2518 Plug, Mate-N-Lock Keying (used w/Item 2)
3 809-0360 Screw, #8 x ⅜-inch Hex Washer Slot Head
4 807-0012 Relay, Non-CE 18 Amp
1
⁄
3
-HP 24V Coil 4 Pole
5 807-2434 Relay, CE 18 Amp
1
⁄
3
-HP 24V Coil 5 Pole
6 809-0096 Screw, 6-32 x ⅝-inch Slot Head
7 809-0250 Nut, 6-32 Keps Hex
8 807-0800 Transformer, 120/24VAC 50/60Hz 50VA
9 807-2176 Transformer, Dual Voltage (100 or 120/24/12VAC) 50/60Hz 50VA
10 807-1999 Transformer, Multi-Voltage (208, 220, 230, 240/24VAC) 50/60Hz 50VA
11 816-0217 Paper, Insulating
12 810-1164 Block, Terminal
13 826-1359 Screw, 4-40 x ¾-inch Round Slot Head (Pkg. of 25)
14 826-1366 Nut, 4-40 Keps Hex (Pkg. of 25)
15 900-5530 Cover, Filter Box
16 810-0044 Plug, .875 Button
* 806-8021SP Upper Plug Heater Plug
* 806-7494SP Lower Plug Heater Plug
* Not illustrated.
NOTE: See Page 4-31 for associated wiring assemblies.
