Frymaster BIH52 Series - Component Boxes

4-27

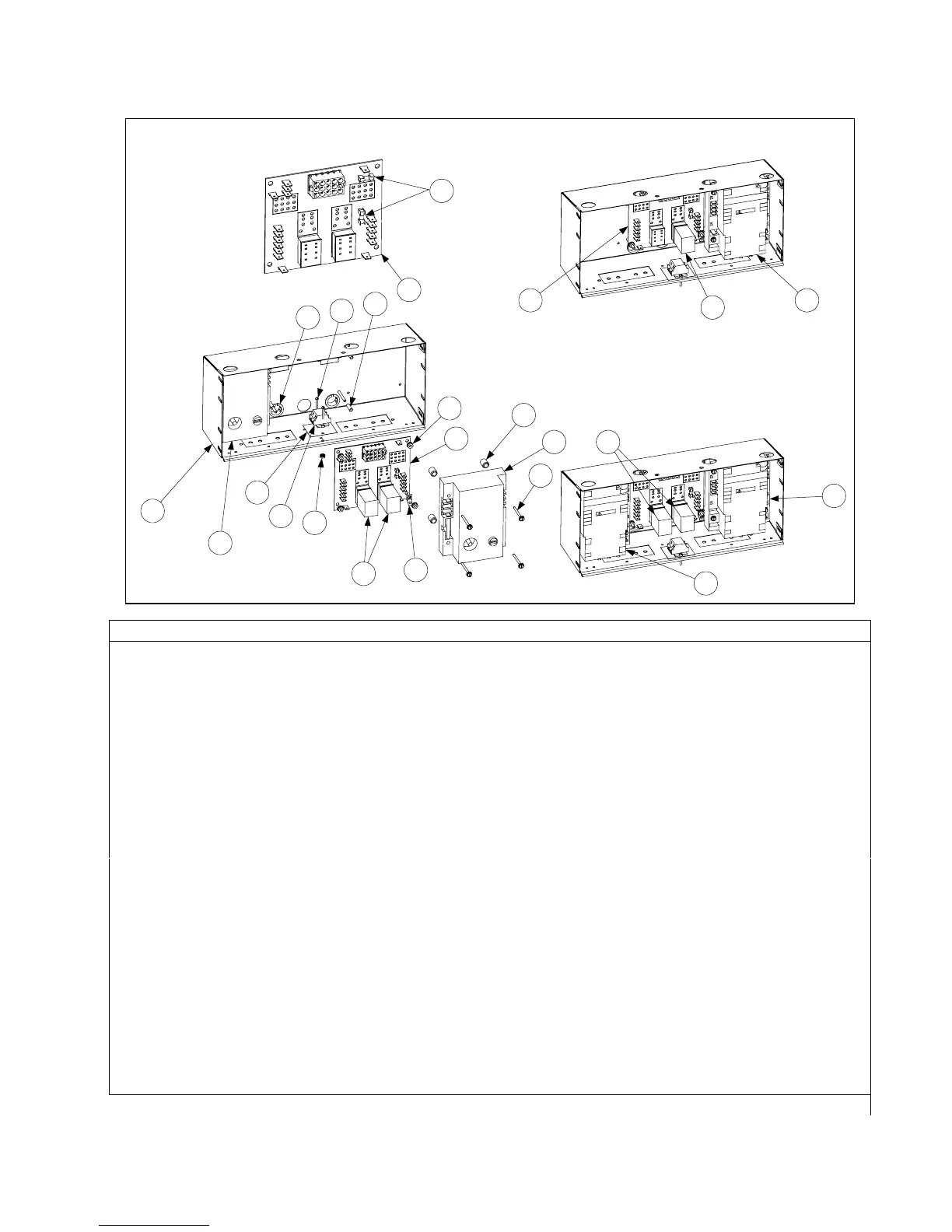

4.4.2 Component Boxes
Full vat units using one 807-3366 module
(Item 3) require only one latch relay (Item 5).
Full or dual vat units using two 807-1006,
807-2971, or 807-3365 modules require a
latch relay (Item 5) for each module.
IFB 106-0386 (Item 7) has two
fuses (807-3843) and may be
used with any of the ignition
modules.
1
2
8
9
10
12
11
13
14
6
5
15
16
17
2
3
4
4
7
7
5
5
6
ITEM PART # COMPONENT
1 200-5996 Box Assembly, One-Piece Component
2 807-1006 Ignition Module, Full or Dual Vat (fuse-protected)
* 807-2971 Ignition Module, Full or Dual Vat (fuse-protected) (Australian units only)
3 807-3366 Ignition Module, Full Vat (unfused – use inline fuse 106-0531SP)
4 807-3365 Ignition Module, Dual Vat (unfused – use inline fuse 106-0531SP)
5 807-0833 Relay, 12V 5Amp Latch
6 807-3843 Fuse, 3A 250V Subminature
7 106-0386 Interface Board (double fuse-protected) (use with 807-3365,807-1006 or 807-
3366)
* 806-4973 Interface Board (used with 240V manufactured gas units only)
8 807-1926 Bushing, .875 Diameter Split
9 816-0217 Paper, Insulating (Items 9, 10, 11, 12 not used on BIH152 or Hong Kong units)
10 810-1164 Block, Terminal (See Item 9)
11 826-1359 Screw, 4-40 x ¾-inch Slotted Round Head (See Item 9) (Pkg. of 25)
12 826-1366 Nut, 4-40 Keps Hex (See Item 9) (Pkg. of 25)
13 807-1241 Spacer, Interface Board (.151-inch ID x ⅝-inch)
14 809-0250 Nut, 6-32 Keps Hex
15 826-1337 Tab, Push-On Terminal (Pkg. of 5)
16 826-1346 Spacer, Ignition Module (.260-inch ID x ½-inch) (Pkg. of 10)
17 809-0441 Screw, #7 x 1½-inch Slotted Washer Hex Head
* 810-2243 Spring, Relay Clip Hold Down
* 806-3660 Sound Device, High Output (Use 807-3520 with M2000 Computers)
* 807-1359 Mount, Tie-Wrap (used on CE units only)
* Not illustrated.
