3-19

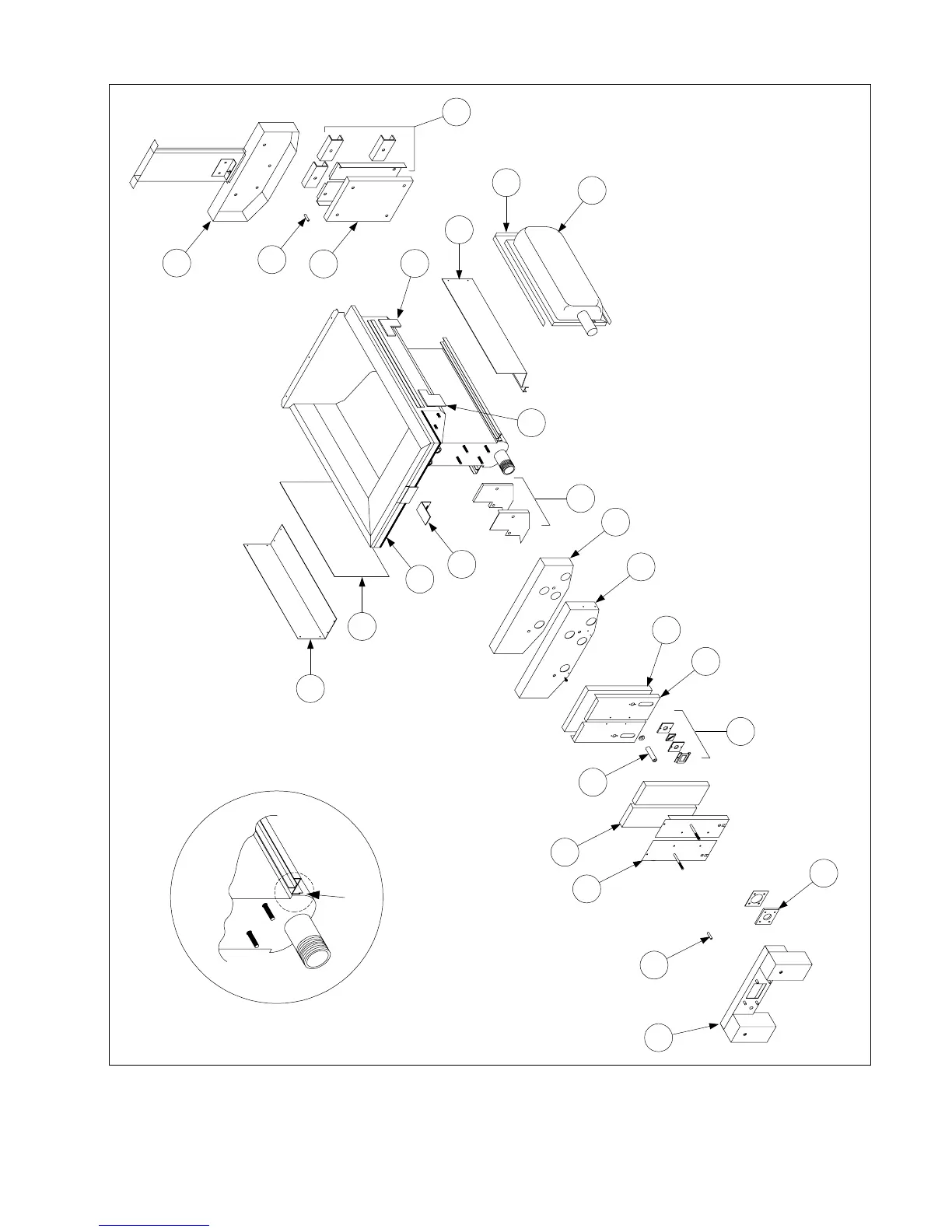

Re-assembling A Frypot
(Full Vat Illustrated)
Apply cement
here
6
5
4
7
9
8
2
1
1
24
23
21
22
3
10
11
13
12
14
15
19
17
16
20
18
15. Install the upper burner rails (2) with the heat deflectors slanting toward the rear of the frypot.
The rails will cover the “L” shaped pieces of combustion chamber insulation previously installed.
