FRYMASTER DEAN MILLIVOLT GAS FRYERS
CHAPTER 2: PARTS LIST
2-22

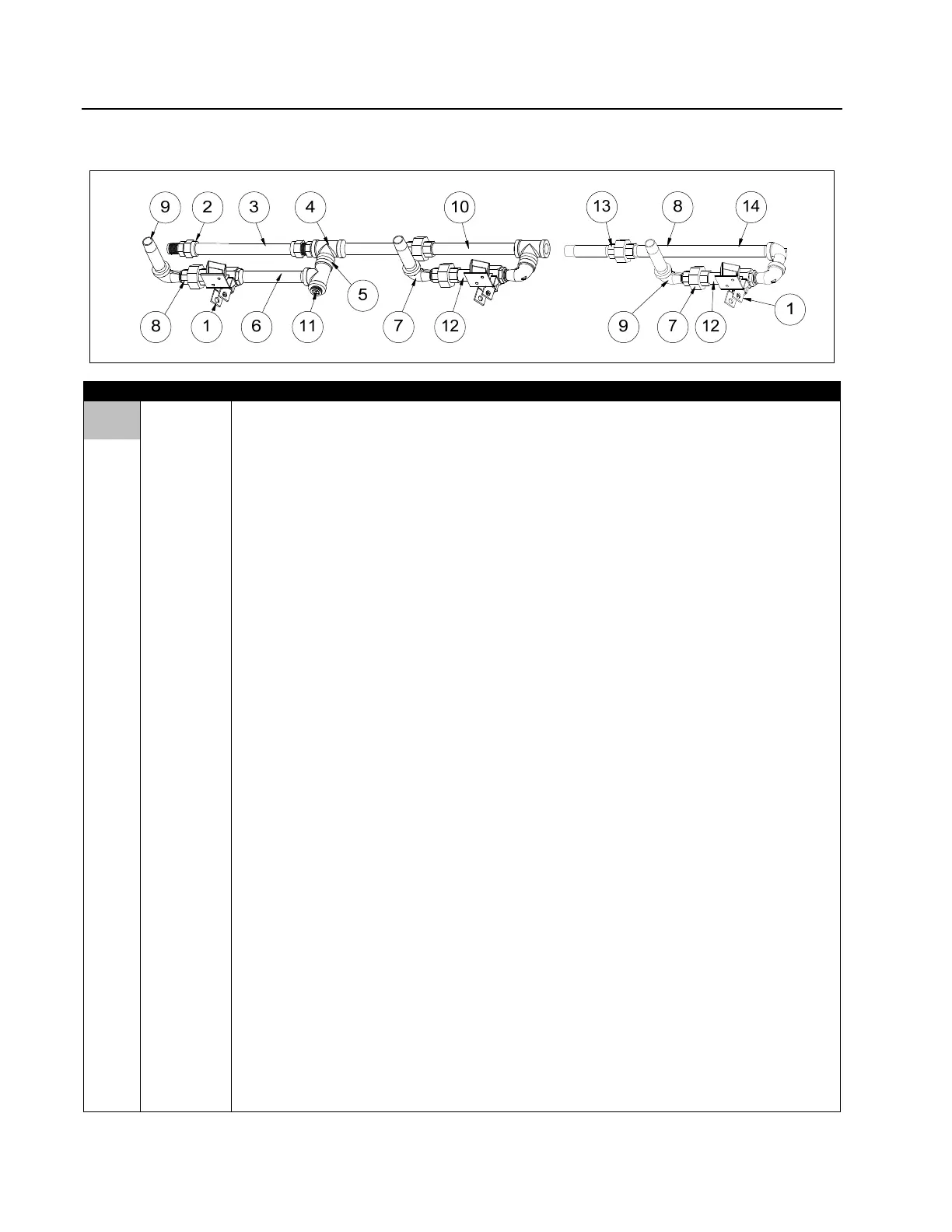

2.6.2 Oil Return Manifold Components; Fryers with 3” Drains
ITEM PART # COMPONENT
1064100 Oil Return Assembly – Middle
1064101 Oil Return Assembly – End
1 1064006 Valve Assembly, ½” Oil Return (see Page 2-25)
* 1063997 Valve Assembly (use with wand)
* 1065516 Valve Assembly, 3-way Oil Return
2 8101668 Adapter, Male ⅝” OD x ½”
3 8102320 Flexline, ⅝” x 9.00” Long
4 8130003 Tee, ½” x ½” x ½” BM
5 8130022 Nipple, ½” x Close NPT BM
6 8130096 Nipple, ½” x 6.00” NPT BM
7 8130165 Elbow, Street ½” x ½” NPT 90º BM
8 8130173 Union, ½” NPT
9 8130247 Nipple, ½” x 3.50” NPT BM
10 8130362 Nipple, ½” NPT x 7.50” BM
11 8130463 Plug, ½” Counter Sink
12 8130661 Nipple, ½” x 2.25” NPT BM
13 8130654 Nipple, ½” x 4.00” NPT BM
14 8130597 Nipple, ½” x 11.50” NPT BM
* 8102125 Ball Valve, ⅜” Drain
* 8130006 Bushing, ½” to ⅜” NPT BM Hex Reducing
* 8130062 Elbow, ½” 90º BM
* 8101067 Flexline, 8.50” Oil Return
* 8130087 Nipple, ½” x 1.50” NPT BM
* 8130460 Nipple, ½” x 3.00” NPT BM
* 8130625 Nipple, ⅜” NPT x CL Black CLS
* 8130672 Nipple, ½” x 8.00” NPT BM
* 8130607 Nipple, ½” x 23.50” NPT BM
* 8130099 Nipple, ½” x 7.00” NPT BM
* 8130845 Nipple, ½” x 29.75” NPT BM
* 8130646 Nipple, ½” x 5.00” NPT BM
* 8130373 Nipple, ½” x 11.00” NPT BM
* 8130298 Nipple, ½” x 2.00” NPT BM
* 8130098 Nipple, ½” x 6.50” NPT BM
* 8130742 Nipple, ½” x 5.50” NPT BM
* 8130515 Nipple, ½” x 12.00” NPT BM
* 8130265 Nipple, ½” x 2.50” NPT BM
* 8130093 Nipple, ½” x 4.00” NPT BM
* Not Illustrated
