Frymaster Dean Super Runner Series - Oil Return Manifold Components

FRYMASTER DEAN MILLIVOLT GAS FRYERS
CHAPTER 2: PARTS LIST
2-20
2.6 Oil Return Manifold Components

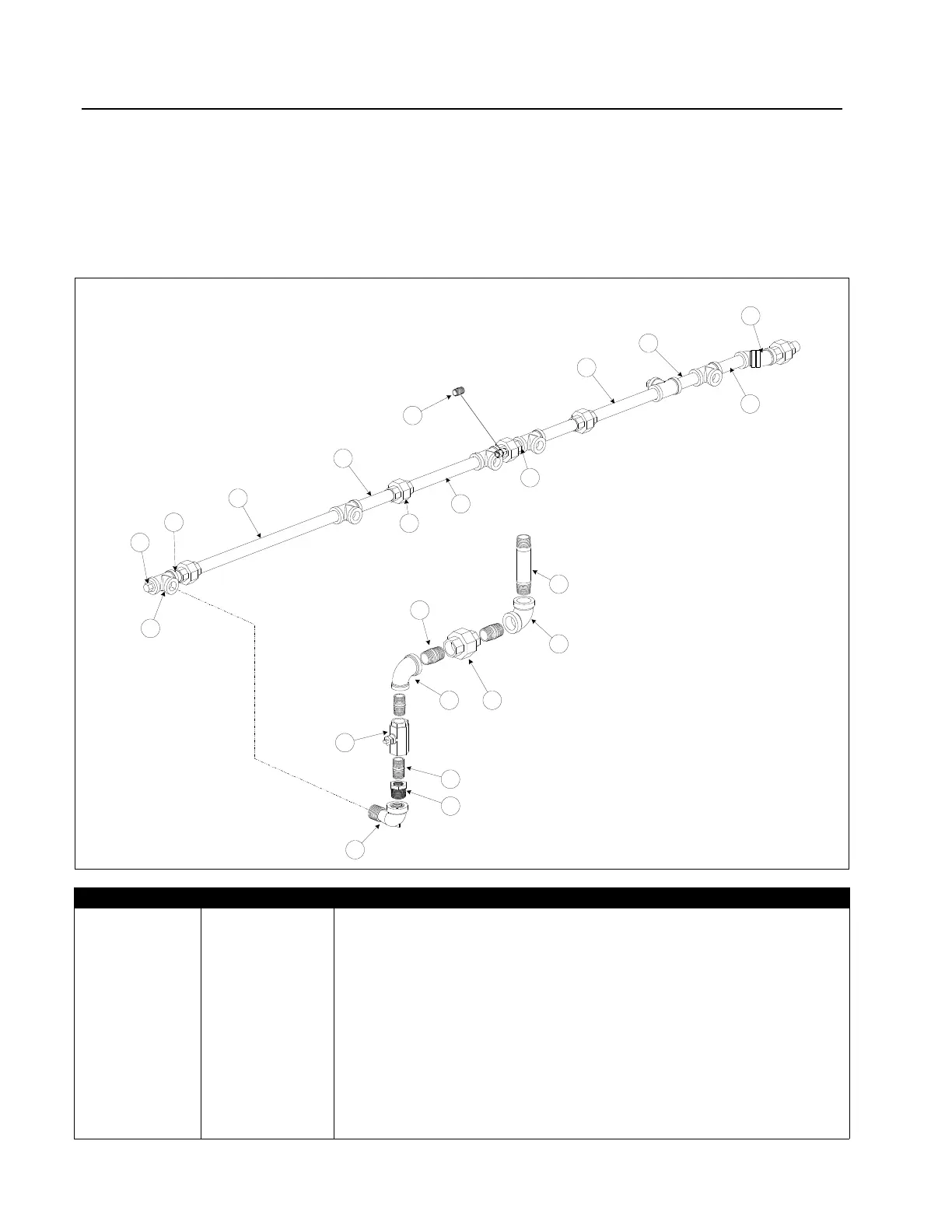

2.6.1 Oil Return Manifold Components; Fryers with 1½” Drains*
*Typical components illustrated below. Components will vary according to system.
1
2
3
4
5
6
11
8
7
9
10
12
13
14
15
16
19
17
6
18 5
SM460G Oil Return
(Typical)
2
ITEM PART # COMPONENT
1 8130003 Tee, ½” x ½” x ½" BM
2 8130022 Nipple, ½" x Close NPT BM
3 8130087 Nipple, ½” x 1-½" NPT BM
4 8130156 Plug, ½" NPT Hex Head BM
5 8130173 Union, ½" NPT BM
6 8130247 Nipple, ½” x 3-½" NPT BM
7 8130298 Nipple, ½” x 2" NPT BM
8 8130345 Elbow, ½"- 45°
9 8130368 Nipple, ½” x 16" NPT BM
10 8130646 Nipple, ½” x 5" NPT BM
11 8130654 Nipple, ½” x 4" NPT BM
12 8130672 Nipple, ½” x 8" NPT BM
