LOV
™
Technical Reference
35
The MIB must be readdressed to the system after replacement. This procedure can be done from any
one M2007 computers in the bank.
1. Readdress the fryer by pressing and hold-
ing and simultaneously for TEN
seconds until a third chirp is heard and
code appears.
2. Enter 2007. The MIB display will display
L for several seconds followed by the vat
number alternating with “r” until the read-
dress is complete.

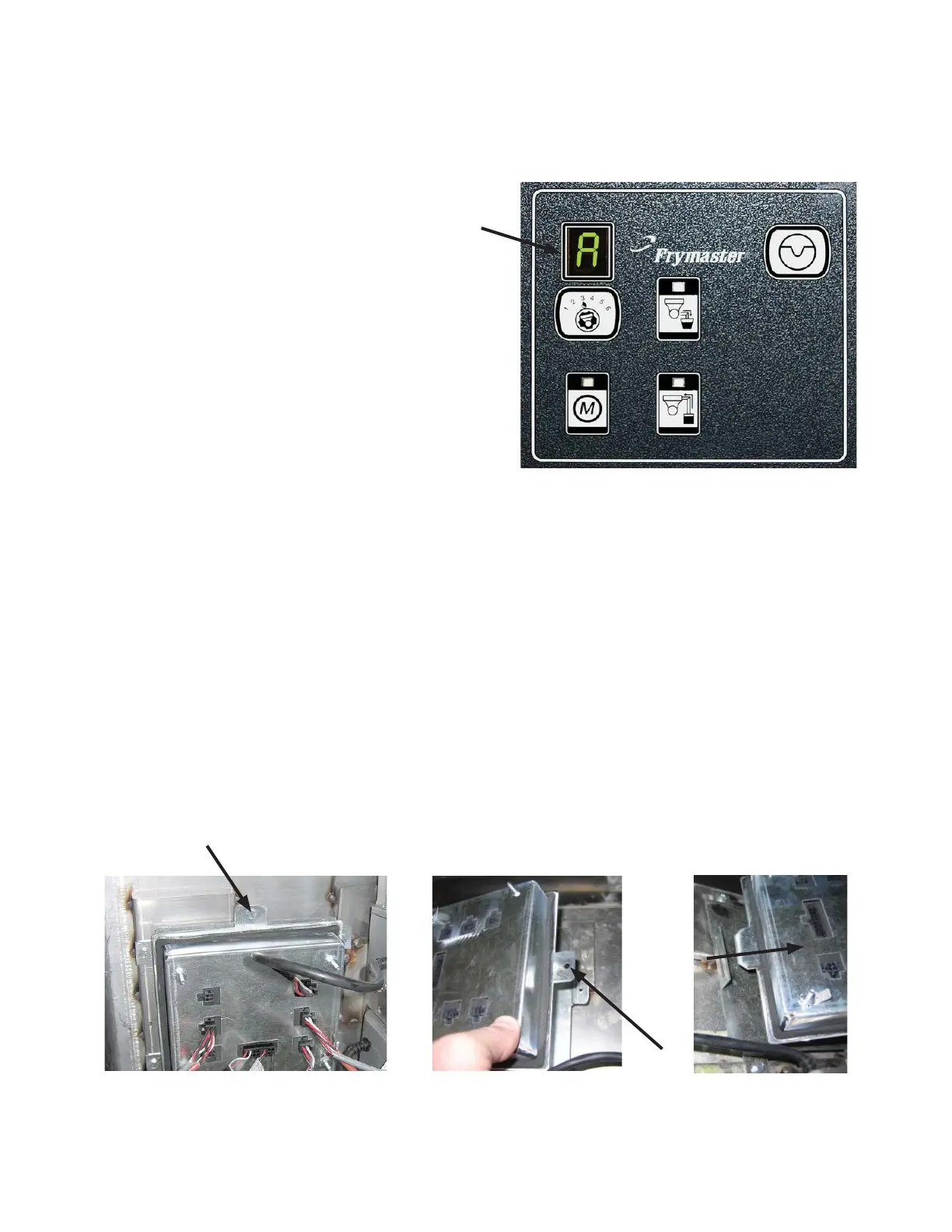

3. When the readdress is fi nished, the MIB
board will display A.
AIF Replacement
The AIF boards are located inside a protective housing underneath each frypot.
1. Disconnect the fryer from the electrical power supply.
2. Locate the AIF board to be replaced under a frypot.
3. Mark and unplug the harnesses.
4. Locate the screw on the front of the AIF assembly holding it in place.
5. Remove the screw and the front of the assembly drops down and the back tab slides out of the
bracket attached to the frypot (see below).
6. Reverse steps to reassemble, ensuring that the new AIF assembly slides into the slot in the
rear of the bracket.
Remove this screw that secures the AIF
board to the fryer.
After removing the screw,
the AIF assembly drops
down.
The bottom tab slides
out of the bracket
attached to the frypot.
