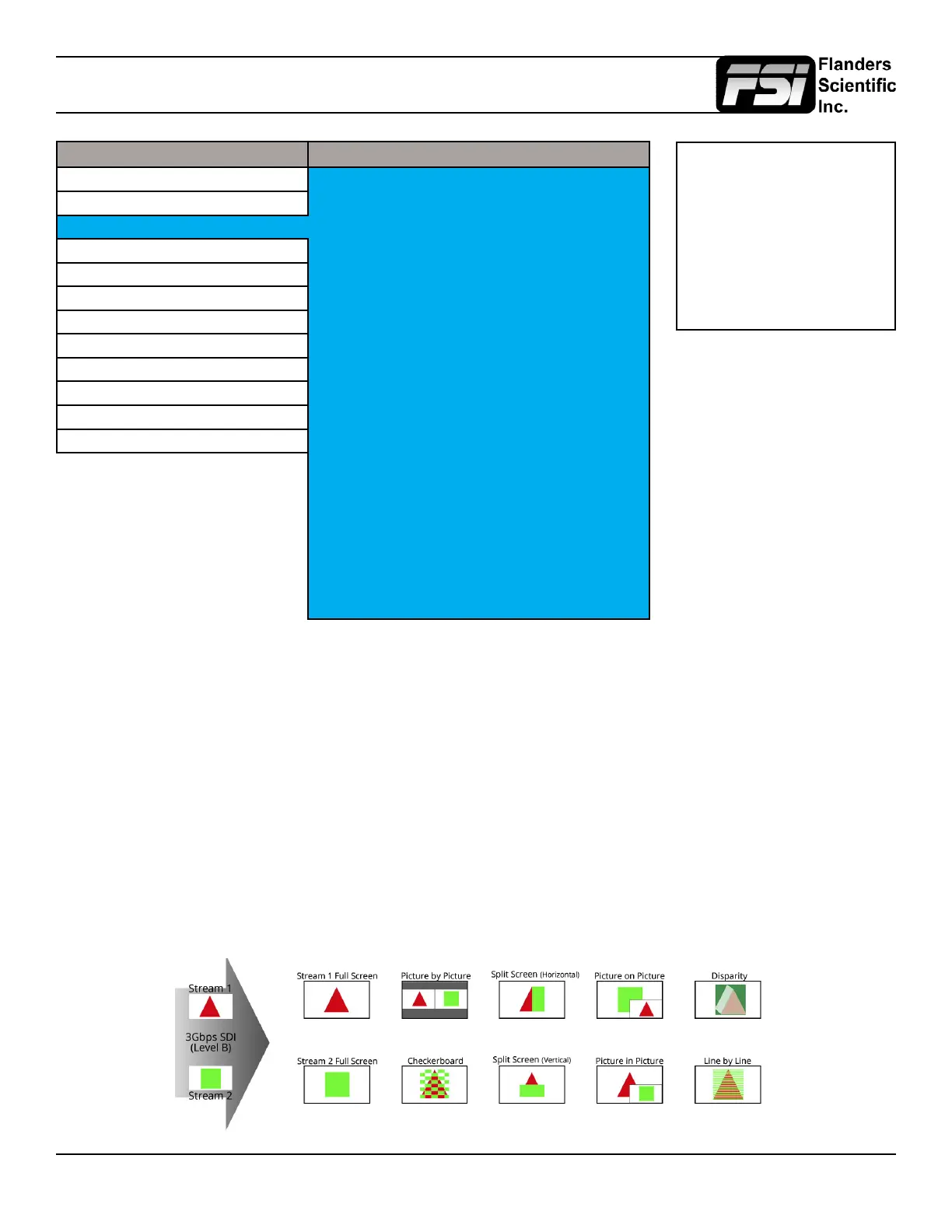

Video Menu
Main Menu Video
Function SDI Format Auto
Scopes & Audio Meters 3G Level B Stream 1
Video DVI Select DVI-D
Audio DVI Pixel Format Full RGB
Marker CVBS Setup 7.5 IRE
Alarm Component Input Component
OSD Component Pixel Format YPbPr
GPI Component Setup YPbPr SMPTE/N10
Color Management PAP Mode PAP
System PAP Input SDI 2
System Status Checkerboard Size 2 Pixels
Support SD Enhancement Off
Anamorphic Desqueeze 2.0x
Signal Mode Auto
Processing Normal Mode
Show psF as Interlaced
Sharpness Level 0
Flicker Free Mode Off
Part Display Off
SDI Format
FSI Monitors are capable of detecting the payload ID contained in an SDI signal. However, some sources or upstream
equipment may not generate or pass payload ID. For sources lacking proper Payload ID you may override the SDI Format
auto detect function and manually select the appropriate format. It may be necessary to force the monitor to re-sync to a
signal when changing formats at the source even when set to Auto. You can force the monitor to re-sync by either reselecting
Auto from the SDI Format menu, selecting the appropriate format manually from the SDI Format Menu, or simply toggling
to another input and back to the input in use. Please note that on monitors with a selectable color space option that XYZ
signals will be mapped to the color space selected on the Color Management menu.
3G Level B
When monitoring a 3Gbps SDI Level B signal (monitor must be equipped with 3Gbps SDI Inputs) comprised of two distinct
1.5Gbps HD-SDI signals that have been muxed together you can use this 3G Level B selection to select different monitoring
options including: Stream 1, Stream 2, PAP, PIP, POP, Vertical Split, Horizontal Split, Overlay Mode. Please note that Level
B 3Gbps SDI requires that both 1.5Gbps signals share the same frame rate and resolution and that Link A and Link B
are genlocked. For signals using SMPTE 425M-B image format mapping to transport SMPTE 372M formatted Dual Link
information (4:4:4 YCbCr or RGB) the Overlay Mode should be used to view the combined LinkA and LinkB data as a single
video signal.
Menus longer than the Main
Menu including Video, Color
Management, and the System
menu will not fully display.
These menus will scroll.
Use the Up and Down keys to
scroll up and down a menu.
