Appendix A - DIT / Look LUTs
DIT LUTs
As of rmware update 1.0.00-1958, CFE 2 equipped monitors are capable of loading multiple custom DIT / Look LUTs which
do not require you to prole the panel. You can use Lattice, LightSpace, or ColourSpace to convert LUTs to FSI’s format.

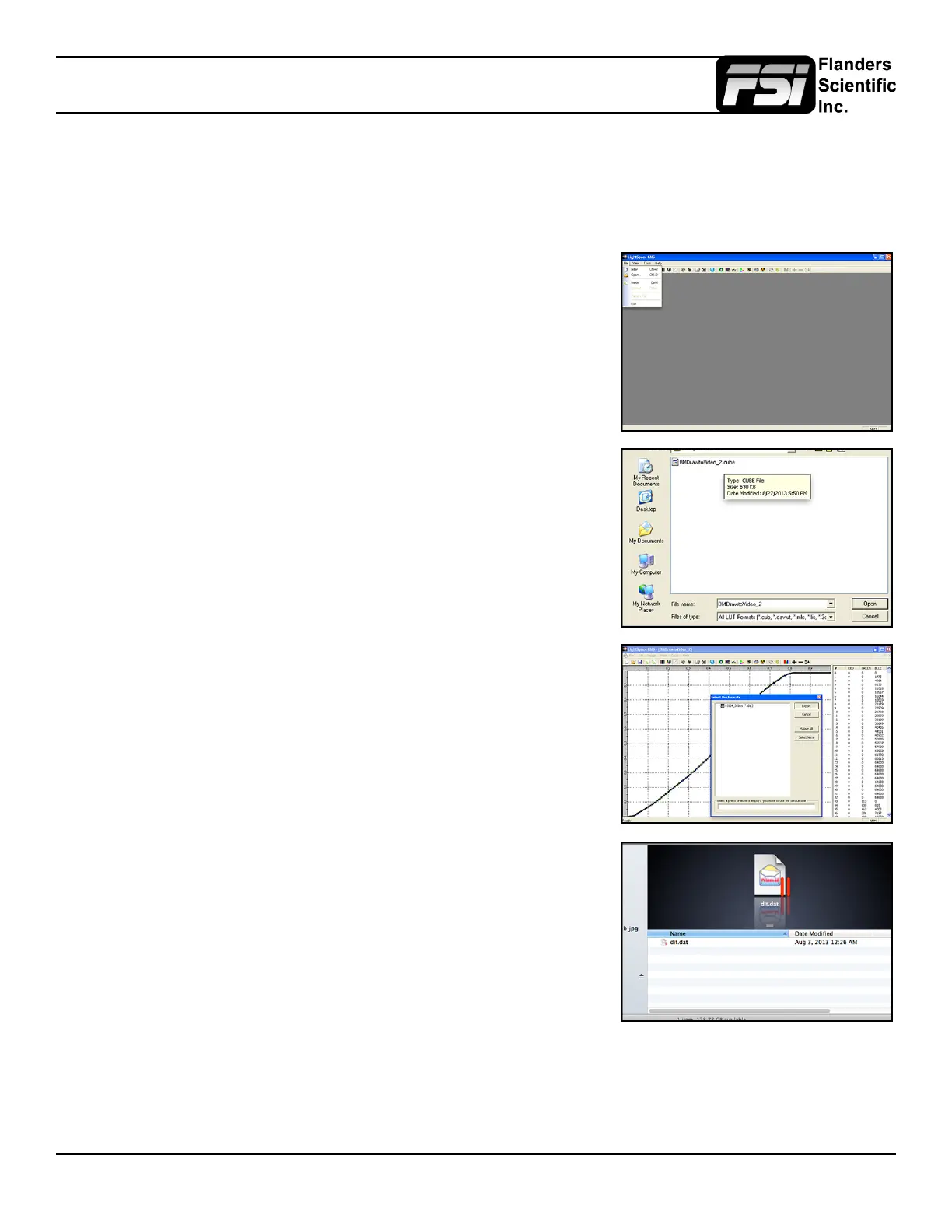

The LightSpace workow is shown below.
Open LightSpace CMS
Select File > Import > YourLUT
Select File > Export > Choose FSI17_32bits (*.dat) as the export format.
In Lattice you should select .dat V2 as the export type.
Once the le is saved, change the le name to ditXX.dat where XX is a 2 digit
number ranging from 00 to 16. The monitor can store up to 16 DIT LUTs at a
time. The naming structure is ditXX.dat with valid LUT names ranging from
dit01.dat to dit16.dat.
