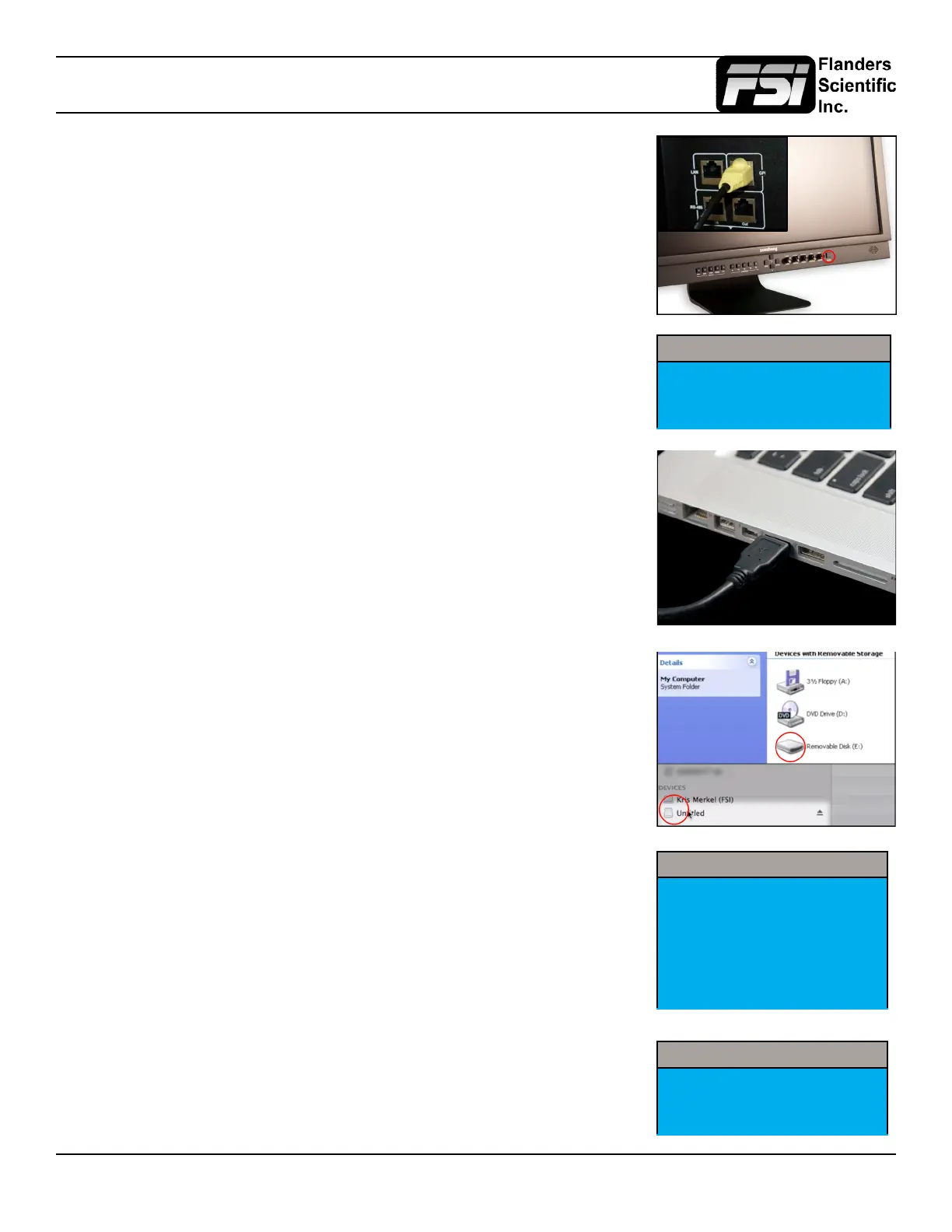

Appendix B - Calibration LUTs
Connect the FSI update cable that came with your monitor (USB to RJ45) to the GPI
port on your monitor.
If you misplaced your update cable, they are available from ShopFSI.com.
Verify that the monitor’s update mode is turned on via the System Menu:
System > UDisk Mode > On
System
Luminance Interval On
UDisk Mode On
Language English
Connect the FSI update cable that came with your monitor (USB to RJ45) to an
available USB port on your computer.
After a short time, the computer should recognize the FSI monitor as a mass storage
device, viewable in Mac’s Finder or PC’s My Computer.
Drag and drop the user1.cfe, user2.cfe, and user3.cfe le(s) you created to the monitor.
All 3 LUTs can be transfered at one time.
Once the le has nished transferring, on the monitor go to:
Menu > Color Management > Update LUT
Press ENTER to begin the process, and conrm with Yes when the monitor prompts
you. The update process will take approximately 6 minutes per LUT on monitors with
rst generation CFE boards and about 15 seconds per LUT on units with CFE2 boards.
Upon completion of the LUT transfer, power cycle the monitor.
Color Management
Luminance 100
LUT Bypass 3D LUT
Update LUT
Red Gain 50
Green Gain 50
Blue Gain 50
Once the monitor has rebooted, set LUT Bypass to None.
Menu > Color Management > LUT Bypass
Custom LUTs can be accessed from the Color Management menu by selecting Color
Space: USER1, USER2, USER3. Press ENTER to conrm your selection.
Color Management
Luminance 100
LUT Bypass None
Update LUT
