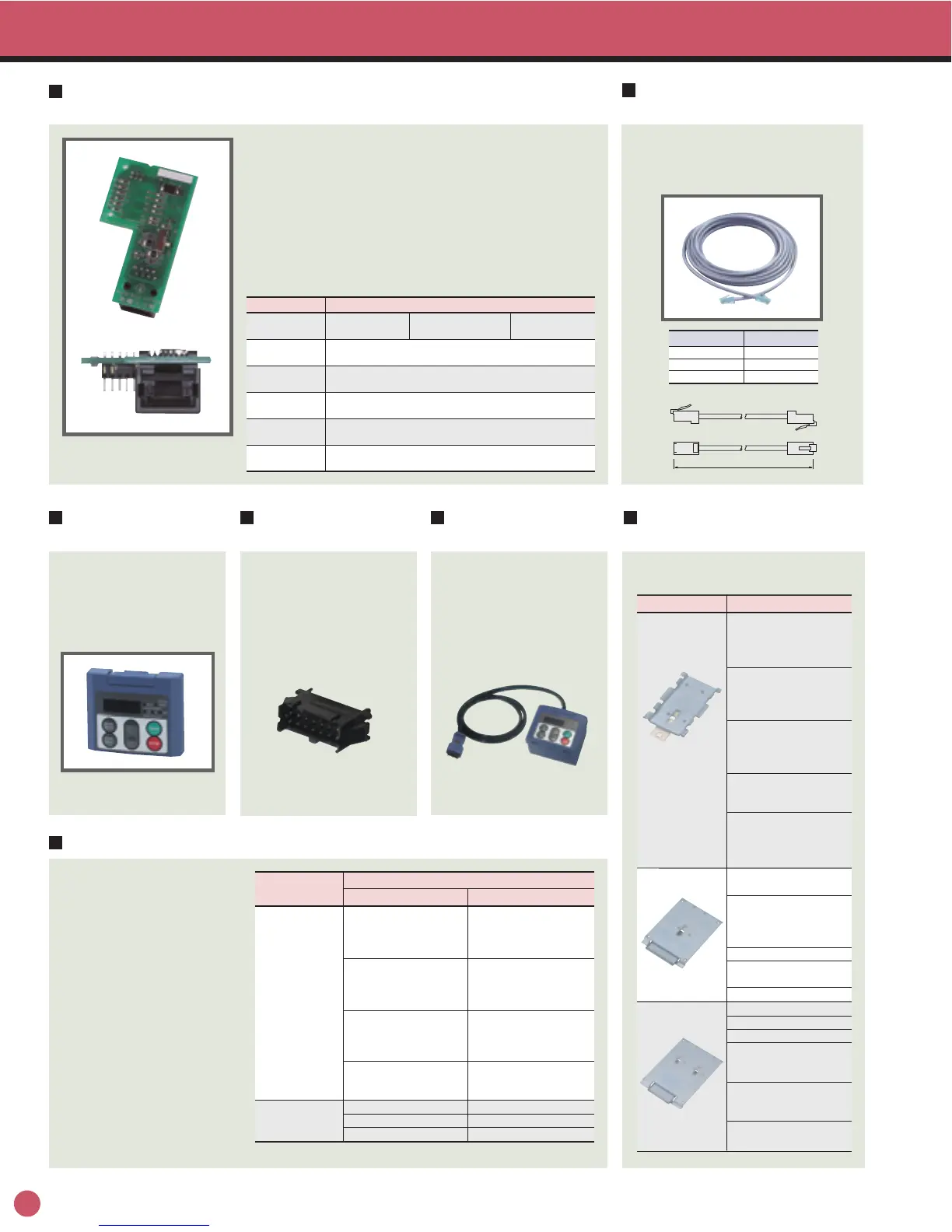

Options
Mounting adapter (MA-C1-)
MA-C1-0.75
MA-C1-3.7
Option type
FRENIC-Mini
Applicable Inverter type
FRNF12C1S-2U**
FRNF25C1S-2U**
FRNF50C1S-2U**
FRN001C1S-2U**
FVR-E11S
FVR0.1E11S-2
FVR0.2E11S-2
FVR0.4E11S-2
FVR0.75E11S-2
FRNF12C1S-7U
FRNF25C1S-7U
FRNF50C1S-7U
FRN001C1S-7U
FRNF12C1E-2U
FRNF25C1E-2U
FRNF50C1E-2U
FRN001C1E-2U
FRNF12C1E-7U
FRNF25C1E-7U
FRNF50C1E-7U
FRN005C1S-2U**
FRN005C1S-4U**
FRN003C1S-7U
FVR0.1E11S-7EN
FVR0.2E11S-7EN
FVR0.4E11S-7EN
FVR0.1E11S-2
FVR0.2E11S-2
FVR0.4E11S-2
FVR0.75E11S-2
FVR0.1E11S-7EN
FVR0.2E11S-7EN
FVR0.4E11S-7EN
FVR3.7E11S-2
FVR3.7E11S-4EN
FVR2.2E11S-7EN
This attachment enables
mounting of the FRENIC-Mini
as is, using the mounting
holes of the existing inverters
(FVR-E11S: 1HP or less, and
5HP units). (This attachment
is not necessary in the case of
the FVR-E11S-2/4 2HP, 3HP
and FVR-E11S-7 1HP, 2HP
units.)
Rail mounting base
(RMA-C1-)
This is a base for mounting the
inverter on a DIN rail (35mm wide).
RMA-C1-0.75
RMA-C1-2.2
RMA-C1-3.7
Option type
Applicable Inverter type
FRNF12C1S-2U**
FRNF25C1S-2U**
FRNF50C1S-2U**
FRN001C1S-2U**
FRNF12C1S-7U
FRNF25C1S-7U
FRNF50C1S-7U
FRN001C1S-7U
FRNF12C1E-2U
FRNF25C1E-2U
FRNF50C1E-2U
FRN001C1E-2U
FRNF12C1E-7U
FRNF25C1E-7U
FRNF50C1E-7U
FRNF12C1S-6U
FRNF25C1S-6U
FRNF50C1S-6U
FRN001C1S-6U
FRN002C1S-2U**
FRN003C1S-2U**
FRNF50C1S-4U**
FRN001C1S-4U**
FRN002C1S-4U**
FRN003C1S-4U**
FRN002C1S-7U
FRNF50C1E-4U
FRN001C1E-4U
FRN001C1E-7U
FRN005C1S-2U**
FRN005C1S-4U**
FRN003C1S-7U
FRN002C1E-2U
FRN003C1E-2U
FRN005C1E-2U
FRN002C1E-4U
FRN003C1E-4U
FRN005C1E-4U
FRN002C1E-7U
FRN003C1E-7U
Remote keypad
(TP-E1)
The keypad permits remote
control of FRENIC-Mini, and
function setting and display
(with copy function).
Copy adaptor
(CPAD-C1)
Connector adaptor
(CPAD-C1-CN)
This adaptor is a
replaceable component of
the copy adaptor's
connector.
The copy adaptor can be
easily connected to an
inverter, and is used to
copy data to several
inverters.
RS-485 communications card
(OPC-C1-RS)
This is an exclusive option that enables the FRENIC-Mini
series to use RS-485 communication.
The following operations can be performed from the remote
keypad, or from a personal computer, PLC or other host
controller using RS-485 communication.
• Operation functions such as frequency settings, forward,
reverse, stop, coast-to-stop and reset.
• Monitoring of the output frequency, output current, operating
status and alarm contents.
• Setting of function codes
Item Specifications
Electrical
specifications
Number of units
connected
Transmission
speed
Synchronization
system
Transmission
method
EIA RS-485
Communications
protocol
SX Protocol
(Support loader exclusive)
Fuji general-purpose
inverter protocol
Modbus RTU
(Conforming to Modicon's Modbus RTU)
Host: 1 unit, Inverters: 31 units
19200, 9600, 4800, 2400bps
Start-stop synchronous
Half-duplex
<Transmission Specifications>
Remote operation extension
cable (CB-S)
This straight cable is used to connect the RS-
485 communications card and the remote
keypad, and available in three lengths, i.e.
3.3ft,9.8ft and 16.4ft (1m, 3m and 5m).
Type L
CB-1S
3.3ft (1m)
CB-3S
9.8ft (3m)
CB-5S
16.4ft (5m)
Cable (CB-
S)
L
8
1
28
