Fuji Electric PXV3 SERIES User Manual

5
INPUT POWER
BB A
123
–+
OUTPUT1
V. PULSE
ALARM/
OUTPUT2
–+
+–
456789
Power supply
–+

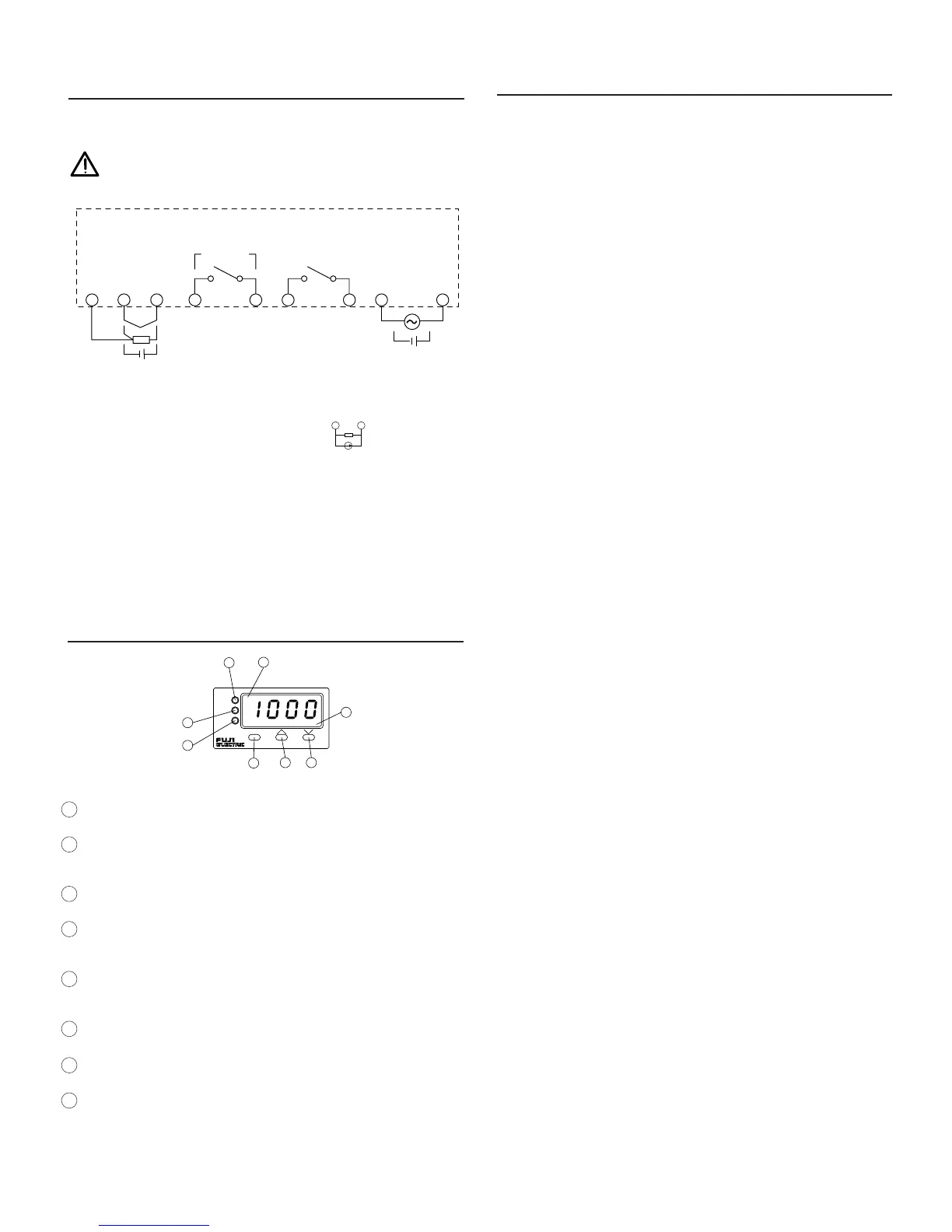

WIRING INSTRUCTIONS
Terminal connection
Wiring material
1. For terminals 1, 2, 3, use 18 ~ 26 gauge wire.
2. For terminals 4 to 9, use 14 ~ 24 gauge wire.
Please refer to Page 9 for further instructions on wiring power,
input and output to the controller.
Warning
Be sure to use the rated power supply voltage and polarity.
– +
250Ω
* For current input, install the 250Ω precision
resistor (accessory) before using the unit.
FRONT PANEL DESCRIPTION
Åõ
SV
OUT
ALM
SEL
1
8
7
6
54
3
2
NAME FUNCTION
1 Set value (SV) Comes on when a set value (SV)
indication lamp is displayed
2 Process value (PV)/ Process value (PV), Setpoint value (SV),
Set value (SV)/ or parameter symbols and codes are
parameter display displayed.
3 Select key To be used when the first, second, or
third block parameters are selected
4 UP key Pressing the key once will increase the
value by one. By pressing it in succession,
the value is continuously incremented.
5 DOWN key Pressing the key once will decrease the
value by one. By pressing it in succession,
the value is continuously decremented.
6 Autotuning indication Blinks while the PID autotuning is being
lamp performed
7 Control output Comes on when the control output is ON
indication lamp
8 Alarm indication lamp Comes on when the alarm is activated.
Blinks while the alarm is being set.
FRONT PANEL OPERATION
The PXV3 controller programming menu consists of three blocks—
PRIMARY (SETPOINT) MENU, SECONDARY (SYSTEM) MENU, and
FACTORY PRESET MENU. At power up the controller will be in the
operational mode, and process variable (PV) will be displayed. This is
the variable that is being controlled, and it is not programmable. When
setting the parameters, turn off the power to the load (operating equip-
ment) to ensure safety. Since it takes 30 minutes for the unit to stabilize
in terms of temperature, all measurements should be carried out at
least 30 minutes after the power is turned on. Option-related features
are displayed only when the options are provided.
Viewing and Setting Parameters
• The data is automatically registered in 3 seconds after the setting.
It can also be registered by pressing the SEL key.
How to set Setpoint value (SV)
Operation Display
1. Power on. – Process value (PV)
2. Press SEL key – SV value; SV lamp is lit
3. Press UP or DOWN key – SV value changes accordingly
4. Press SEL key to go back to – Process value (PV); SV lamp off
the operational mode
PRIMARY (SETPOINT) MENU
Operation Display
1. Operational Mode – Process value (PV)
2. Press SEL key for 3 seconds – ALM LED blinks; AH data (for
units with alarm option)
3. Press UP or DOWN key – AH data changes
4. Press SEL key to access the – AT 0, ......
next parameter
5. Press SEL key for 3 secs. – Operational mode
SECONDARY (SYSTEM) MENU
Operation Display
1. Operational Mode – Process value
2. Press SEL key for 7 seconds – 3 seconds later, ALM LED blinks
7 seconds later, “P”
3. Release and press SEL key again – “P” data
4. Press UP or DOWN key – “P” data changes accordingly
5. Press SEL key once – “P”
6. Press DOWN key to scroll down – “i”, “d”, ..... “Mod”
the menu
7. Press SEL key for 3 secs. – Operational mode
FACTORY PRESET MENU
Operation Display
1. Operational Mode – Process value
2. Press SEL key for 9 seconds – 3 seconds later, ALM LED blinks
7 seconds later, “P”
9 seconds later, “P-n1”
3. Release and press SEL key again – “P-n1” data
4. Press UP or DOWN key – “P-n1” data changed
5. Press SEL key – “P-n1”
6. Press DOWN key to scroll down – “P-dF”, ........ “dsp7”
the menu
7. Press SEL key for 3 secs. – Setpoint value
