8
STRUCTURE
_______________________________________________________
Mounting method Panel flush mounting or surface mounting
Surface mounting: PXW-4 type only
_______________________________________________________
External terminal PXW-4 type: 8-pin or 11-pin socket
Other types: screw terminal (M3.5 screw)
_______________________________________________________
Enclosure Black ABS plastic
_______________________________________________________
Dimensions PXW-4 48 x 48 x 85.7mm (1/16 DIN)
PXW-5 52.5 x 100.5 x 95.8mm (1/8 DIN)
PXW-7 76.5 x 76.5 x 95.8mm (72 mm)
PXW-9 100.5 x 100.5 x 95.8mm (1/4 DIN)
_______________________________________________________
Weight PXW-4 approx. 150g
PXW-5 approx. 300g
PXW-7 approx. 300g
PXW-9 approx. 400g
_______________________________________________________
Protective structure Front panel water-proof structure;
NEMA 4X (equivalent to IEC standards IP66)
Rear case: IEC IP20
_______________________________________________________
DELIVERY
_______________________________________________________
PXW-4 type: controller, panel mounting bracket, socket (when specified),
water proof gasket, 250Ω precision resistor (when required), instruction
manual. Other types: controller, panel mounting bracket, water-proof gasket,
250Ω resistor (when required), instruction manual.
_______________________________________________________

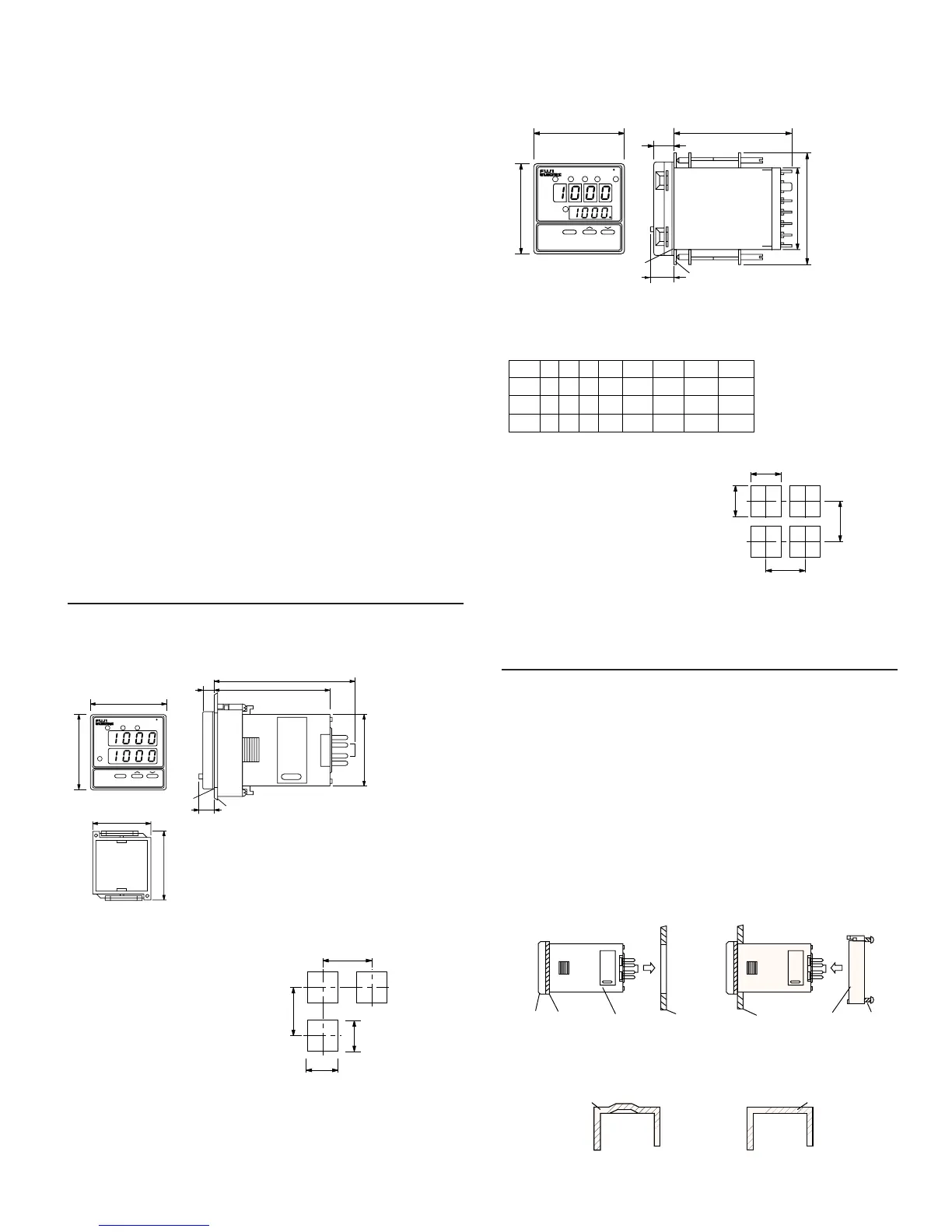

OUTER DIMENSIONS & PANEL CUTOUT SIZE
48
48
7 71.5
85.7
44.8
57
48
F
C
SEL
HL
9.5
PV
SV
Panel
Gasket
Mounting Bracket
Unit: mm
Panel thickness: 1 to 8 mm
Panel cutout size:
when installing “n” number of units.
PXW4
63 or more
63 or more
45
+0.5
-0
45
+0.5
-0
PXW 5,7,9
F
C1
PV
SV
A
B
95.8
DC
SEL
C2 H HBL
18.7
16.2
Panel
Gasket
Model
PXW5
PXW7
PXW9
A
52.5
76.5
100.5
B
100.5
76.5
100.5
C
90.5
67
90.5
D
114.5
91
114.5
E
45
68
92
0.6
-0
0.7
-0
0.8
-0
F
92
68
92
0.8
-0
0.7
-0
0.8
-0
G
120min
96min
120min
H
92min
116min
140min
E
F
G
H
Unit: mm
Panel thickness: 1 to 8 mm
Panel cutout size:
when installing “n” number of units.
INSTALLATION
NEMA 4X Integrity
The front side of this instrument conforms to NEMA 4X. To ensure the
waterproofness between the instrument and the panel, use the gasket
that is provided with the unit according to the installation procedure
described below.
How to install the unit
For PXW-5/7/9, install the two metal brackets, one on the top and the
other on the bottom, and tighten the screws to a torque of about 14.7N-
cm (1.5kg-cm). For PXW4, install the unit in the panel as shown below,
and tighten the screws on the mounting bracket until the unit is secure.
Make sure there is no space between the front side of the unit and the
gasket, and between the gasket and the panel.
Figure 1 Figure 2
Unit
Front Gasket Case
Unit
Panel Panel Mounting bracket Screw
Figure 3
Gasket Gasket
Case Case
(Bad) (Good)
Caution: After the mounting bracket is installed, check the gasket for
displacement and detachment as shown in Figure 3.
