Machine Components
41
Product Overview
2
• Standard tray + Two tray module x 1

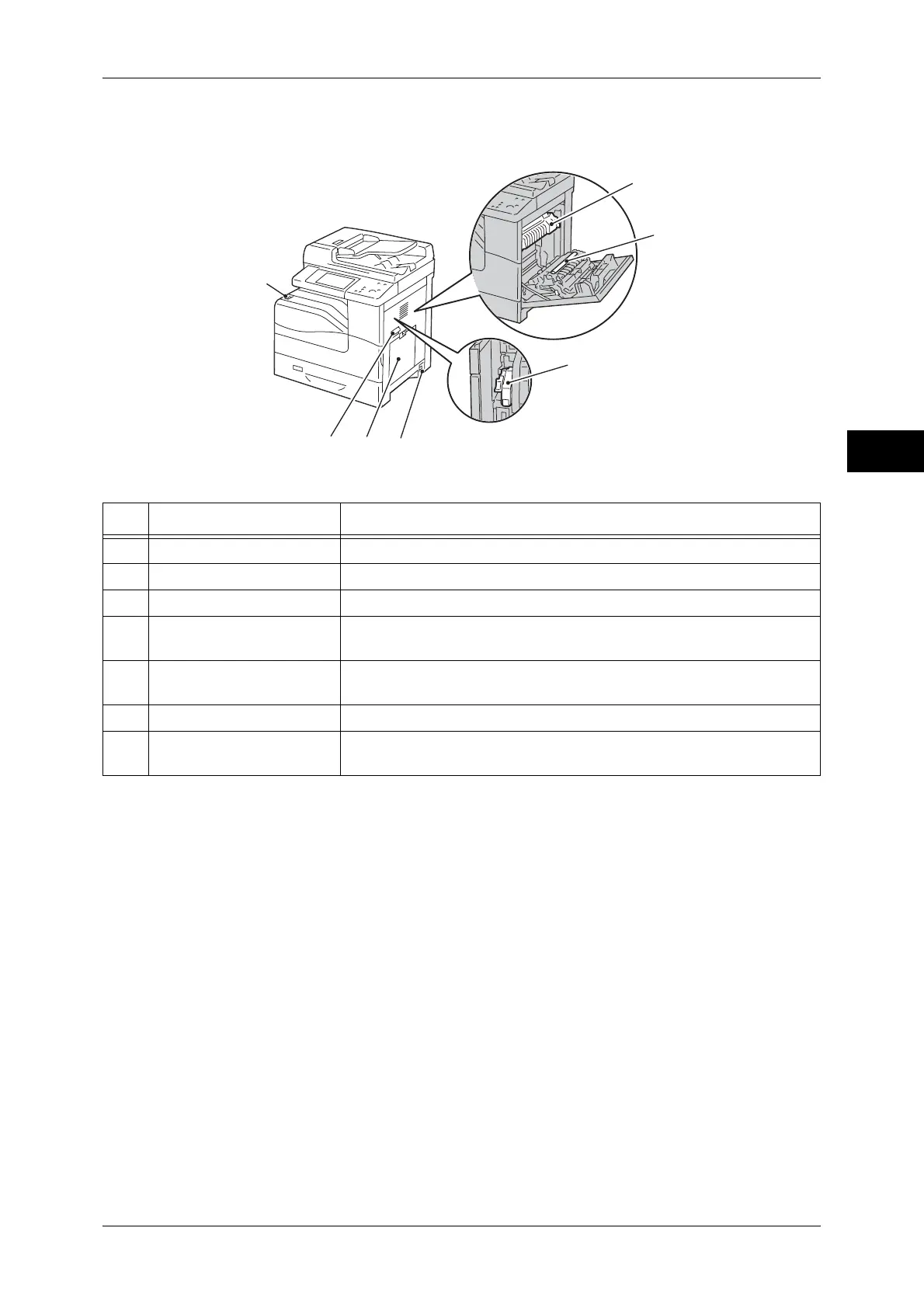

îš„Right View
No. Component Function
1 Fusing unit Fuses toner on paper. Do not touch this unit as it is extremely hot.
2 Transfer roller Transfers toner from the drum to the paper.
3 Paper thickness lever Used for printing on envelopes.
4 Main power switch Switches the main power of the machine on and off.
Refer to "Power Source" (P.44).
5 Multiple sheet inserter
(MSI)
Used for loading non-standard paper, such as thick-stock paper and
other special media, that cannot be loaded in trays.
6 Right hand cover handle Use this handle to open the right hand cover.
7 Power switch Switches the power of the machine on and off.
Refer to "Power Source" (P.44).
1
2
3
456
7
