Fuji Xerox DocuPrint CP475 AP User Manual

Cleaning the Device
223

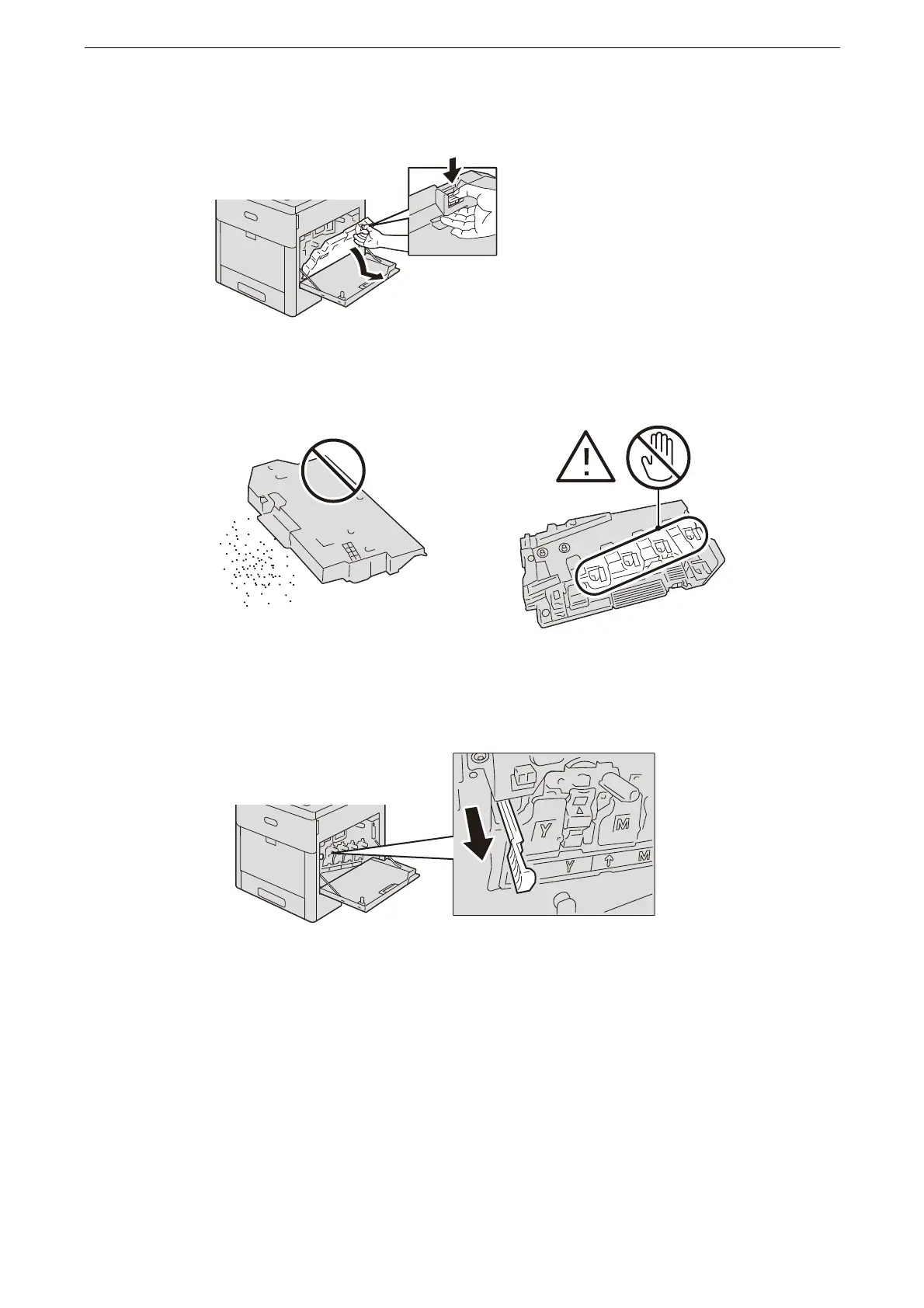

2 Pinch the latch and then lower the top of the waste toner container and lift it away from
the main unit.
Note

To avoid toner spills or malfunction, keep the openings of the waste toner container facing up.

Do not touch the part indicated in the figure below after pulling out the waste toner container.
3 Lay the removed waste toner container with the openings facing up, on a flat place.
4 Remove the cleaning bar attached to the left side of the drum cartridges.
