Troubleshooting 215
Clearing Paper Jams From the Optional 550 Sheet Feeder
NOTE:
• If two or more optional 550 sheet feeders are installed on the printer, perform the following procedure for the tray indicated in
the error message displayed on the LCD panel.
• To resolve the error displayed on the LCD panel, you must clear all print media from the print media path.

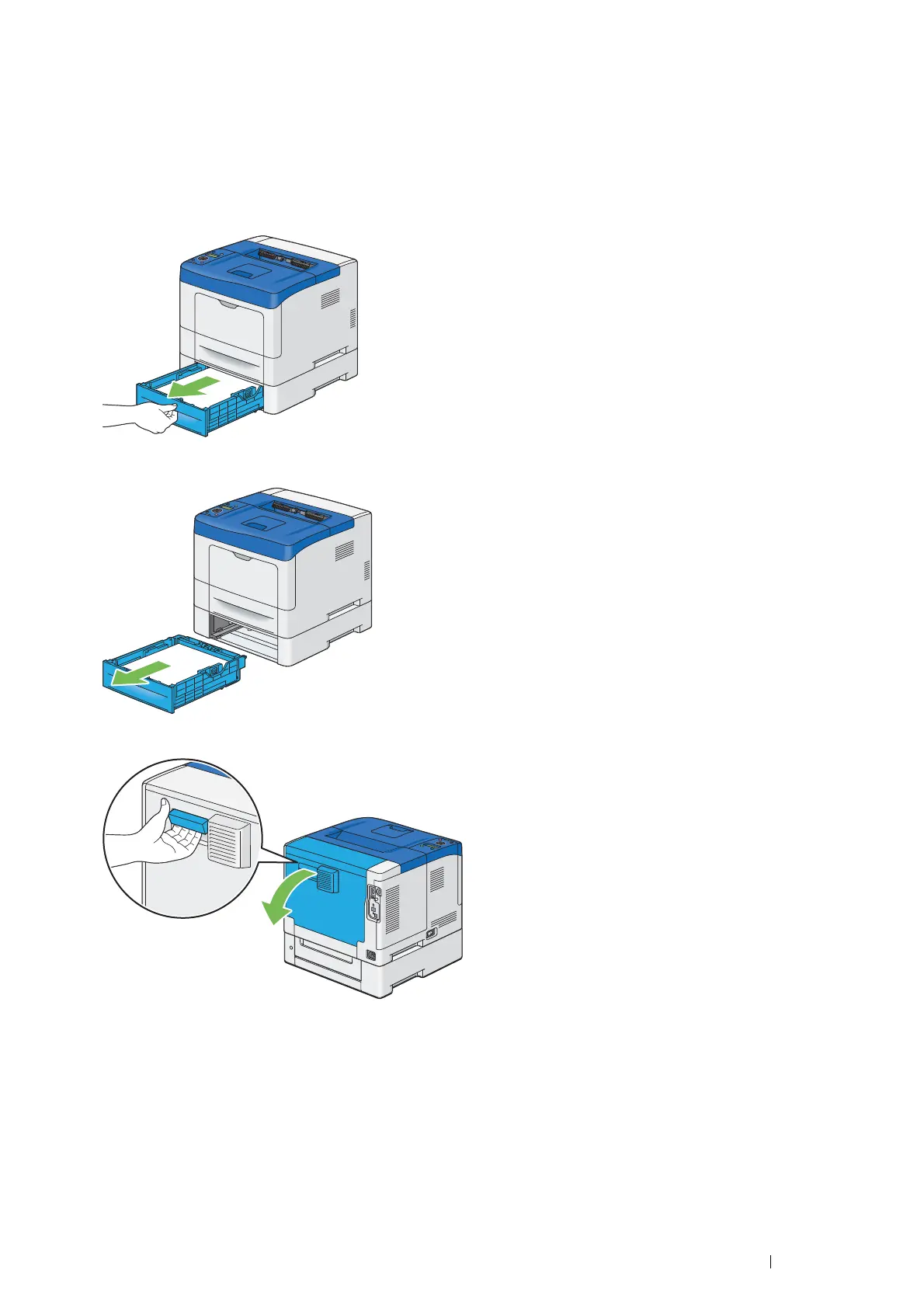

1 Pull the optional 550 sheet feeder from the printer about 200 mm.
2 Hold the optional 550 sheet feeder with both hands, and remove it from the printer.
3 Pull the rear door handle to open the rear door.
To Next Page
