Fujiiryoki SKS-1850 - Preparation before use; Take out the main unit and accessories from the packing; Assembling and folding the back rest

Preparation before use
5

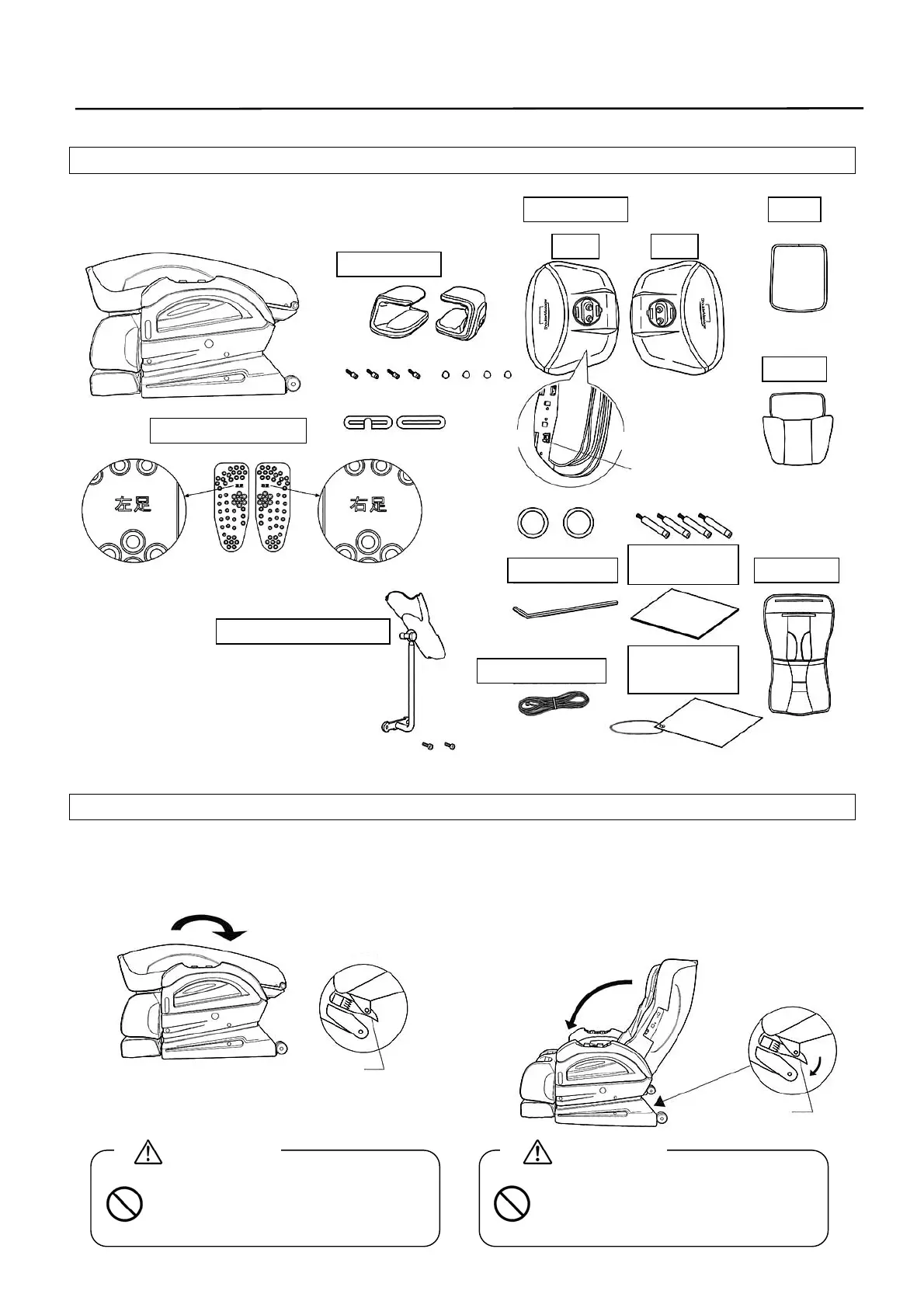

Take out the main unit and accessories from the packing.
[Main unit] [Accessory]
Assembling and folding the back rest
Raising the back rest in the arrow direction,
confirm that the stopper (detail view in the
circle) is locked. (A click will be heard.)
Hold down the stopper (detail view in the
circle) at the bottom of back rest and then
fold slowly the back rest forward.
* Take care not to fold abruptly.
* Back rest cannot be folded while the shoulder unit
and the arm unit are assembled.
Be careful not to get hand or fingers
caught between the arm rest and the
back rest.
Do not touch any sections other than
indicated with the circle when
operating the stopper.
Arm unit
Back Pad Phillips wrench
Instruction
Manual
Mounting screw
(4 pcs.)
Blinding screw
(4 pcs.)
Grounding Cable
Quick operation
guide
Mounting screw (2 pcs.)
Shoulder unit
Left Right
Pad
Front
Rear
Front
Rear
Front
Rea
r
Pillow
Right and left of the
shoulder unit can be
identified with the air
j
oint on the back.
Air joint
Cap (2 pcs.) Mounting screw (4 pcs.)
CAUTION
CAUTION
Stopper
Stopper
Lock
Release
Remote Controller Stand
Right foot Left foot
Rear
Sole Shiatsu Pad
*
(Grounding terminals are provided on the models for Thailand,
Sweden, France and Russia.).
Front
Cap (2 pcs.)
Rear
