Connecting devices Preparation for use and operation
A26361-K554-Z100-2-7619 11
Ports for external devices
The ports for external devices are on the rear of the system unit. The ports available on your device
depend on the configuration level you have selected. The standard ports are marked with symbols
like those below or similar symbols. Exact details of the position of the ports are supplied in the
Technical Manuals for the boards.

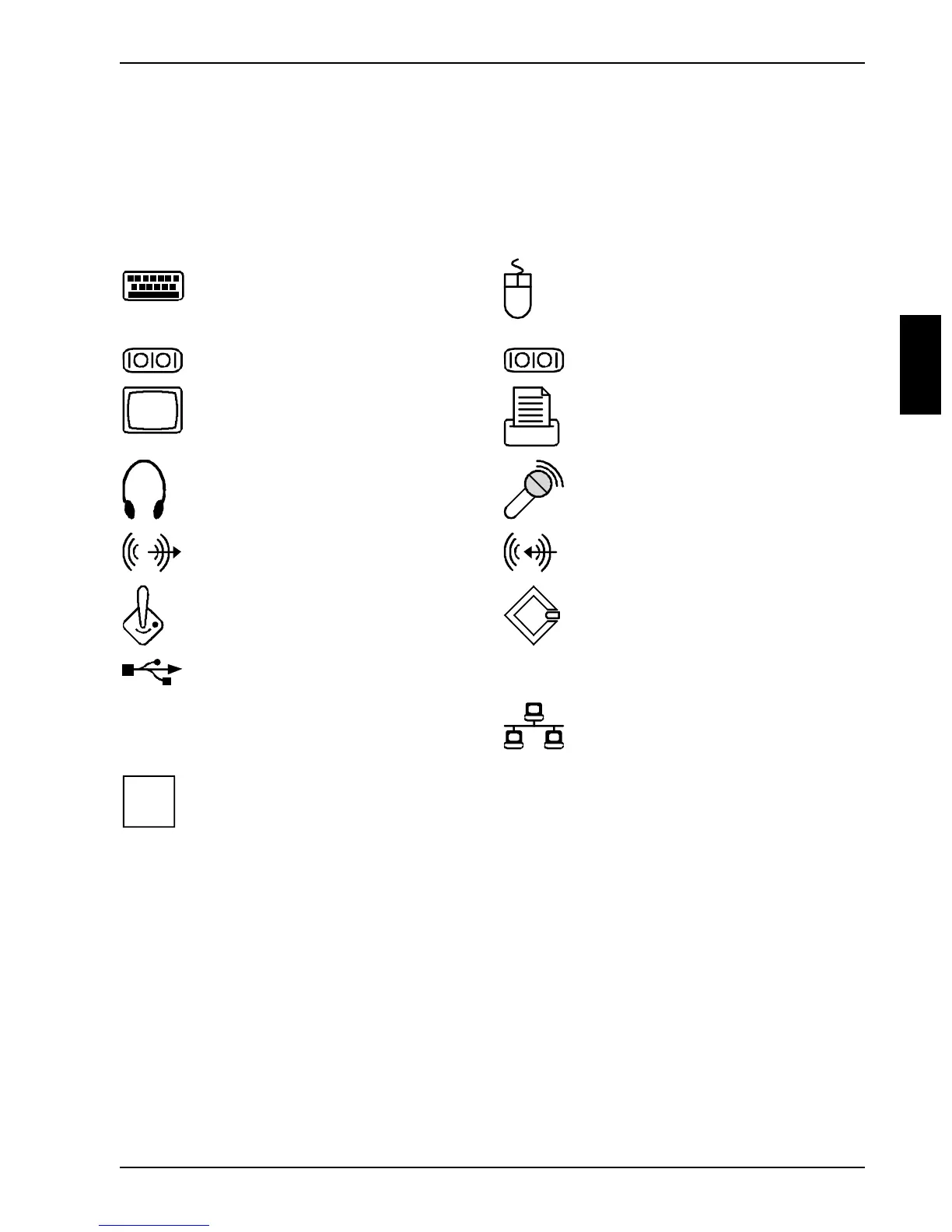

Example for the icons and color coding of connections
Keyboard port / purple PS/2 mouse port / green
1
Serial interface 1 / teal or turquoise
2
Serial interface 2 / teal or turquoise
Monitor port / blue
Parallel interface / Printer / burgundy
Headphones port / orange Microphone jack (mono) / pink
Audio output (Line out) / lime Audio input (Line in) / light blue
Game port / gold SCSI connection
USB - Universal Serial Bus / black
AN
LAN port
i
Some of the devices that you connect require special drivers (see the documentation for
the connected device and for the operating system).
