Assembling the system unit System expansions
A26361-K554-Z100-2-7619 27
Assembling the system unit
a
3
3
3
2
1

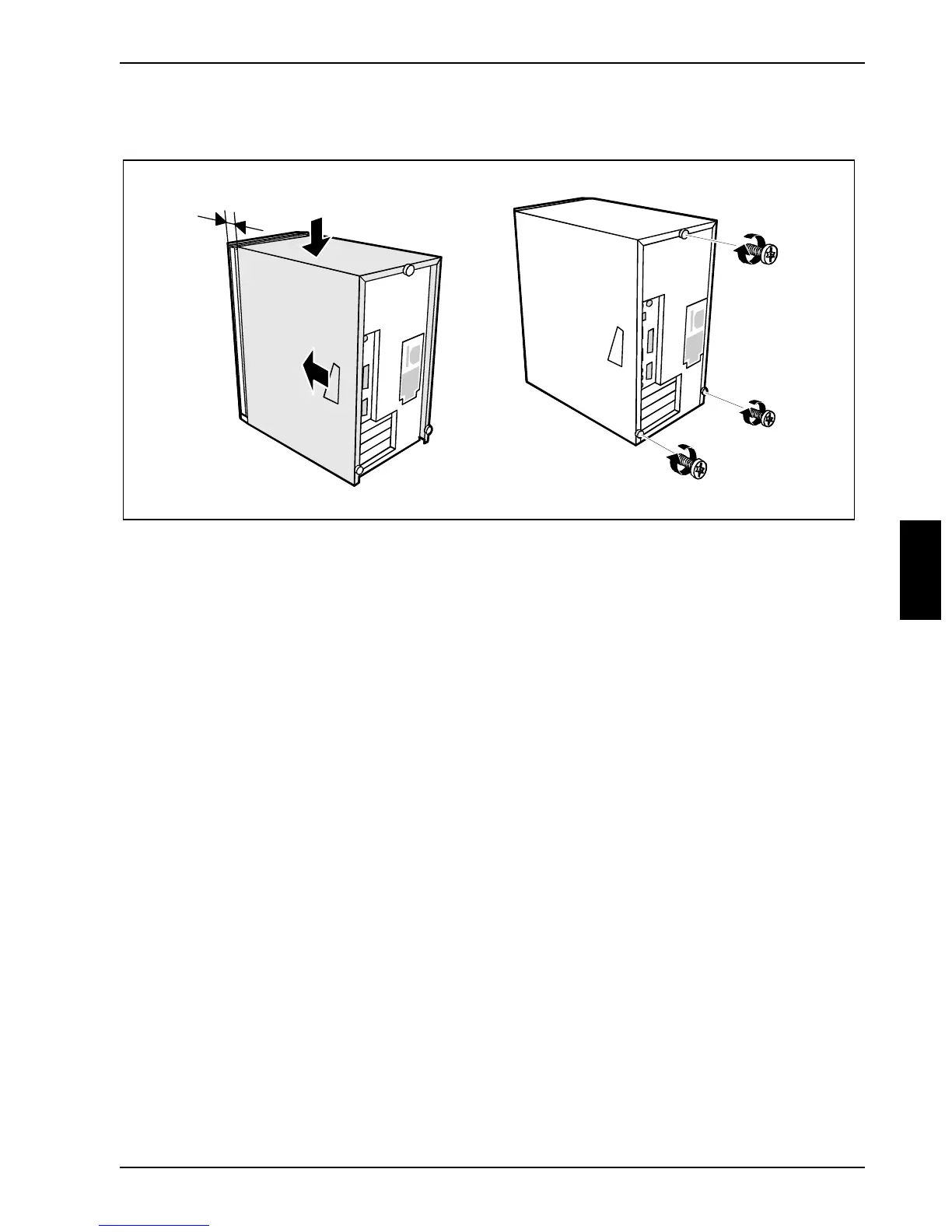

Ê Place the side cover on the system unit in the direction of the arrow (1) so that the distance (a)
is approx. 10 mm.
Ê Push the side cover in the direction of the arrow (2).
Ê Fasten the screws (3).
Ê Return the system unit to its original position.
Ê If you have disconnected cables, reconnect them at the rear.
Installing and removing a board
Old ISA boards which require a -5 V power supply are not supported.
You can install boards which are up to 290 mm long.
The number, position and arrangement of the board slots on system board can be found in the
technical manual for the system board. Boards may be installed when the device is shipped.
