Installing and removing a board System expansions
A26361-K554-Z100-2-7619 29
Removing a board
Ê Open the system unit (see "Opening the system unit").
Ê Remove the lines connected to the board.

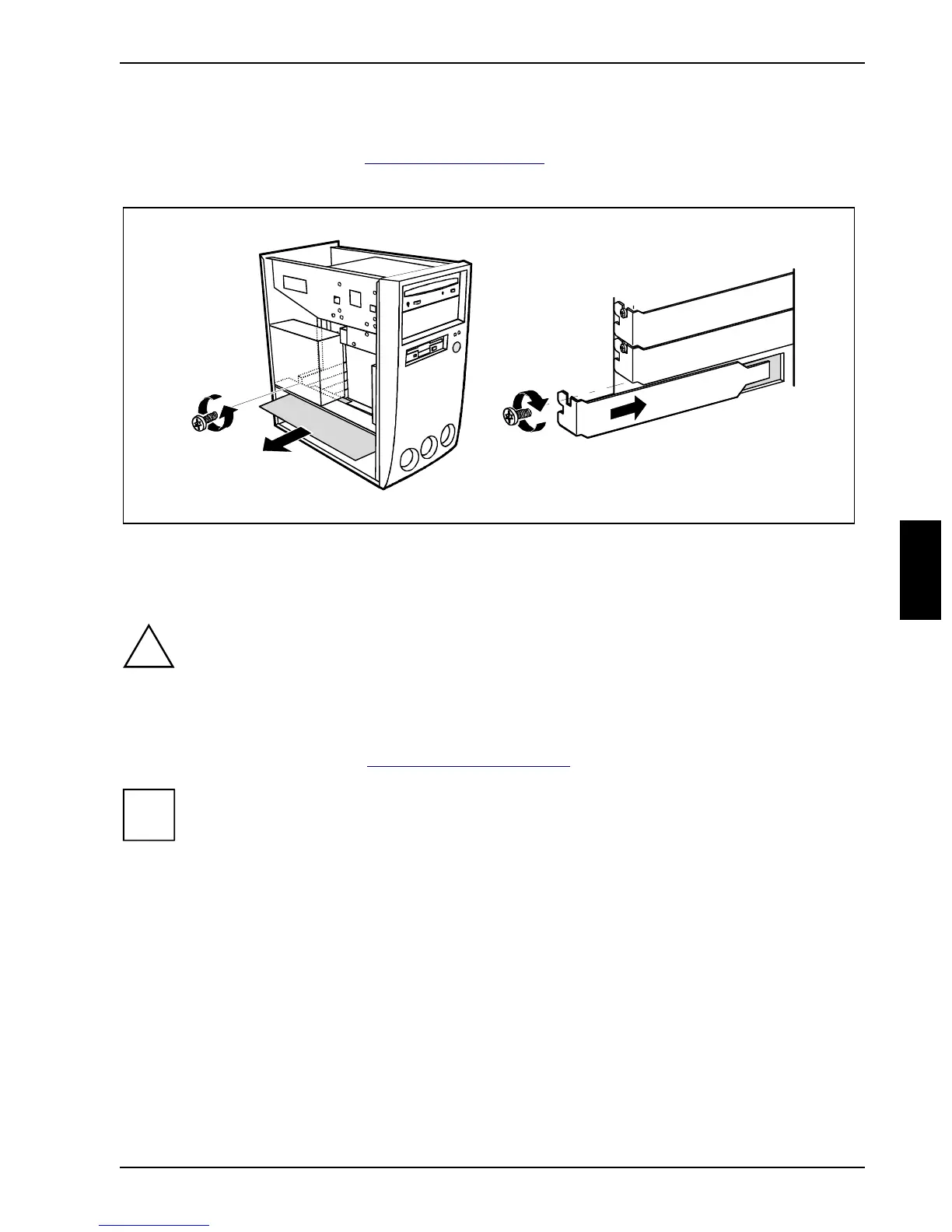

1
2
3
4
Ê Remove the screw (1).
Ê Remove the board from the system unit (2).
Ê Place the board into an appropriate packaging.
!
To ensure proper cooling, fire protection and observation of the relevant EMC
(electromagnetic compatibility) regulations, you must mount a rear slot cover plate.
Ê Push the rear slot cover plate into the slot (3).
Ê Fasten the rear slot cover plate with the screw (4).
Ê Close the system unit (see "Assembling the system unit").
i
If you have installed or removed a PCI board, check in the BIOS Setup the settings for the
relevant PCI slot. If necessary, change the settings. Further information is provided in the
documentation for the PCI board.
