Installing and removing drives System expansions
A26361-K554-Z100-2-7619 35
Ê Disconnect the cables from the hard disk drive (4).

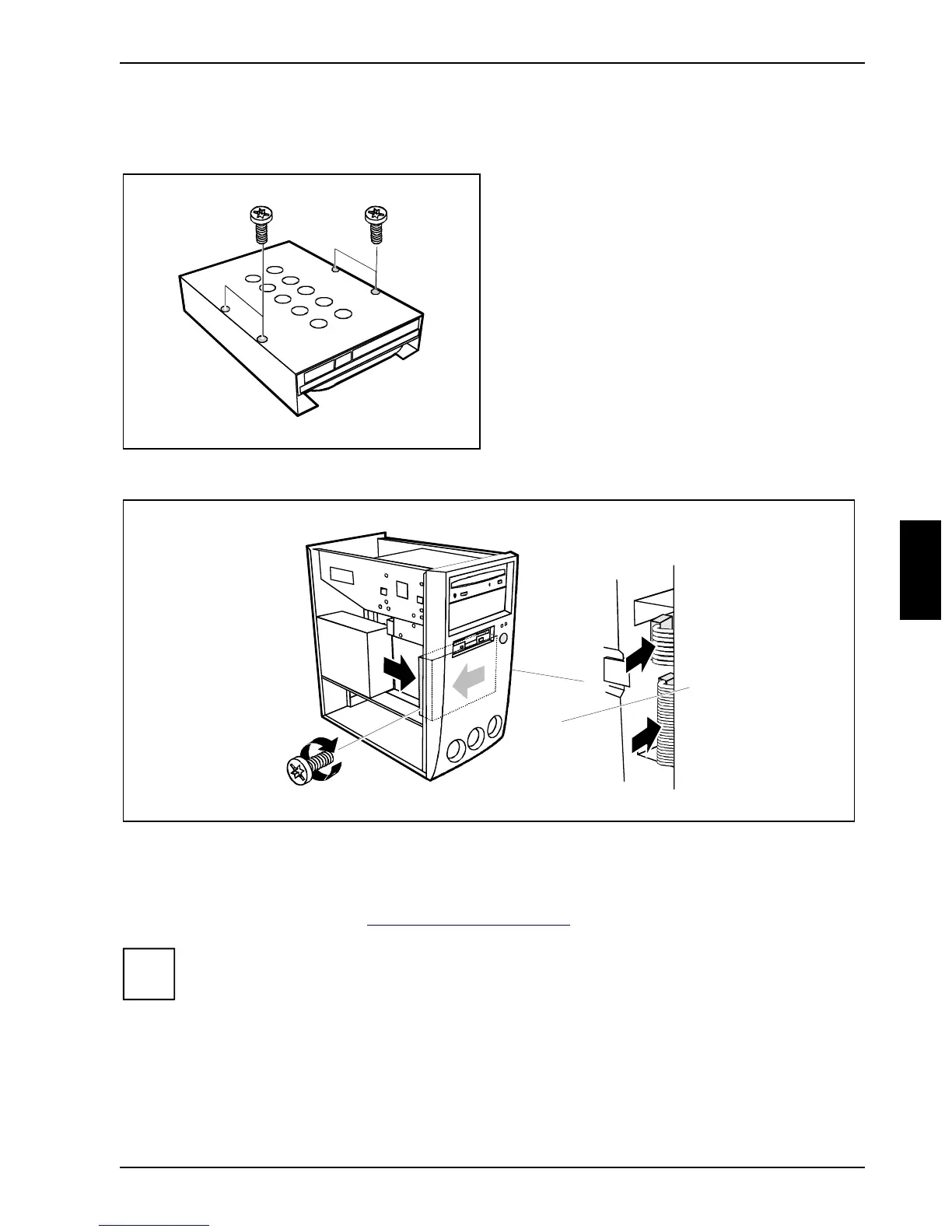

Replacing a hard disk drive
Ê Remove the screws.
Ê Take the new hard disk drive out of its
packaging.
Ê Make the required settings (e. g.
master/slave, stand alone) on the drives.
Ê Replace the hard disk drive.
Ê Fasten the drive with the screws.
Installing the hard disk carrier
1
2
4
1
3
Ê Connect the cables to the hard disk drive (1).
Ê Insert the hard disk carrier in the guide rail provided for this purpose on the casing (2, 3).
Ê Fasten the hard disk carrier with the screw (4).
Ê Close the system unit (see "Assembling the system unit").
i
If necessary, you must adapt the entry for the drive in the Setup menu.
