8-2. External output
With using external output function, operating status of this product can be transmitted to the ex-
ternal device, and also, this product can be inter-connected with the external device.
¢
Operation status output
Air conditioner operation status signal can be output.

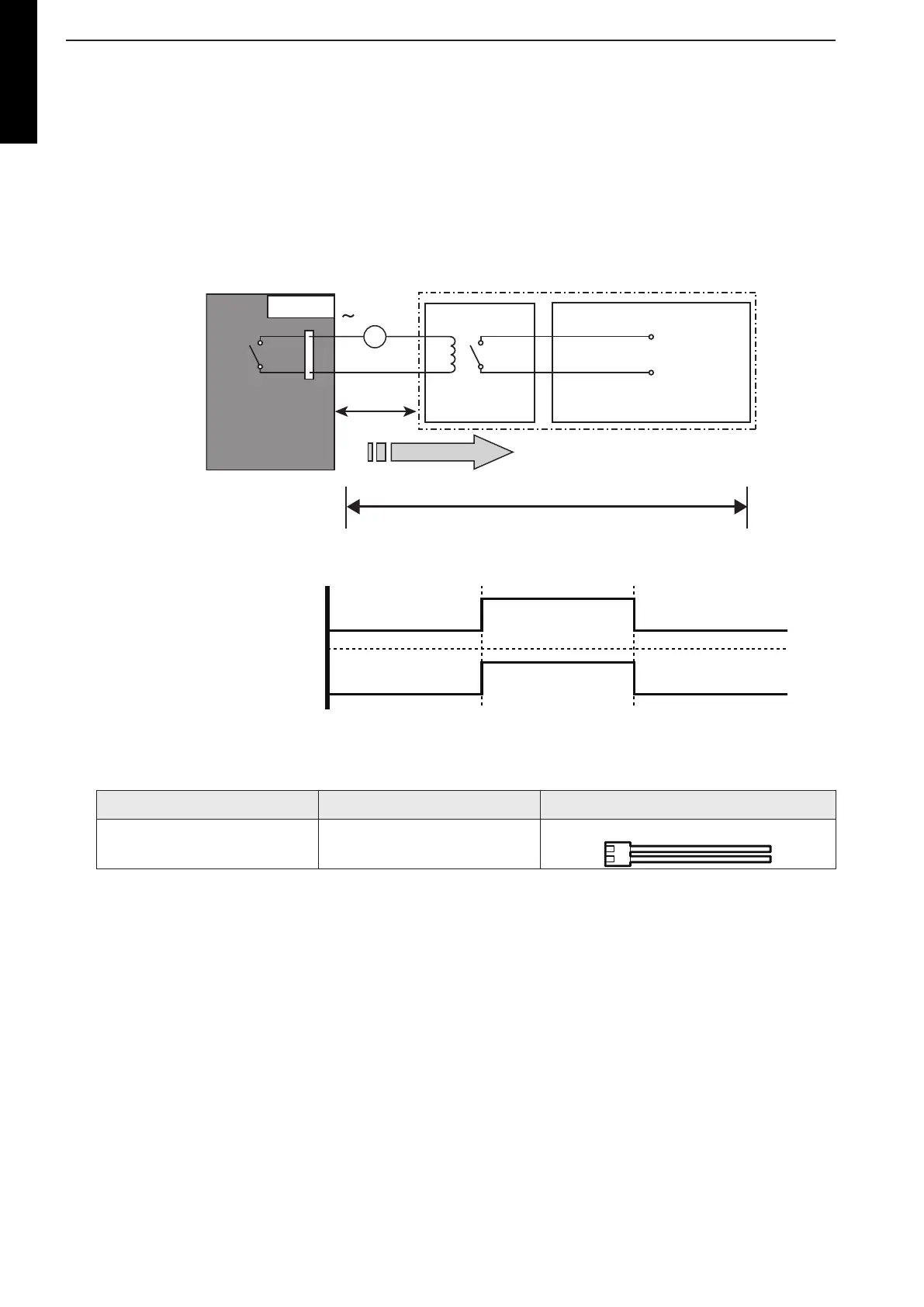

Circuit diagram example
Locally purchased
Indoor unit
control PCB
Connected unit
Example: Display
Example: Relay unit
Relay
power supply
DC 24 V
1
2
Signal
V
Connector
*10 m
• *: Make the distance from the PCB to the connected unit within 10 m.
• Relay spec: Max. DC 24 V, 10 mA to less than 500 mA.
On
Off
Operation
Stop
Indoor unit
Output signal
Optional part
Part name Model name Exterior
External connect kit UTY-XWZX
External output wire
DESIGN & TECHNICAL MANUAL
- 20 -
CASSETTE TYPE
AUYG18-24LVL
