10. Function settings
To adjust the functions of this product according to the installation environment, various types of
function settings are available.
NOTE:
Incorrect settings can cause a product malfunction.
10-1. Function settings on indoor unit
By using some components on the PC board, you can change the function settings.
Related components on the PC board and the applicable settings
Component Setting content
DIP switch
1
Remote controller address setting
2
3
4
Jumper wire
JM1
Setting prohibited
JM2
JM3

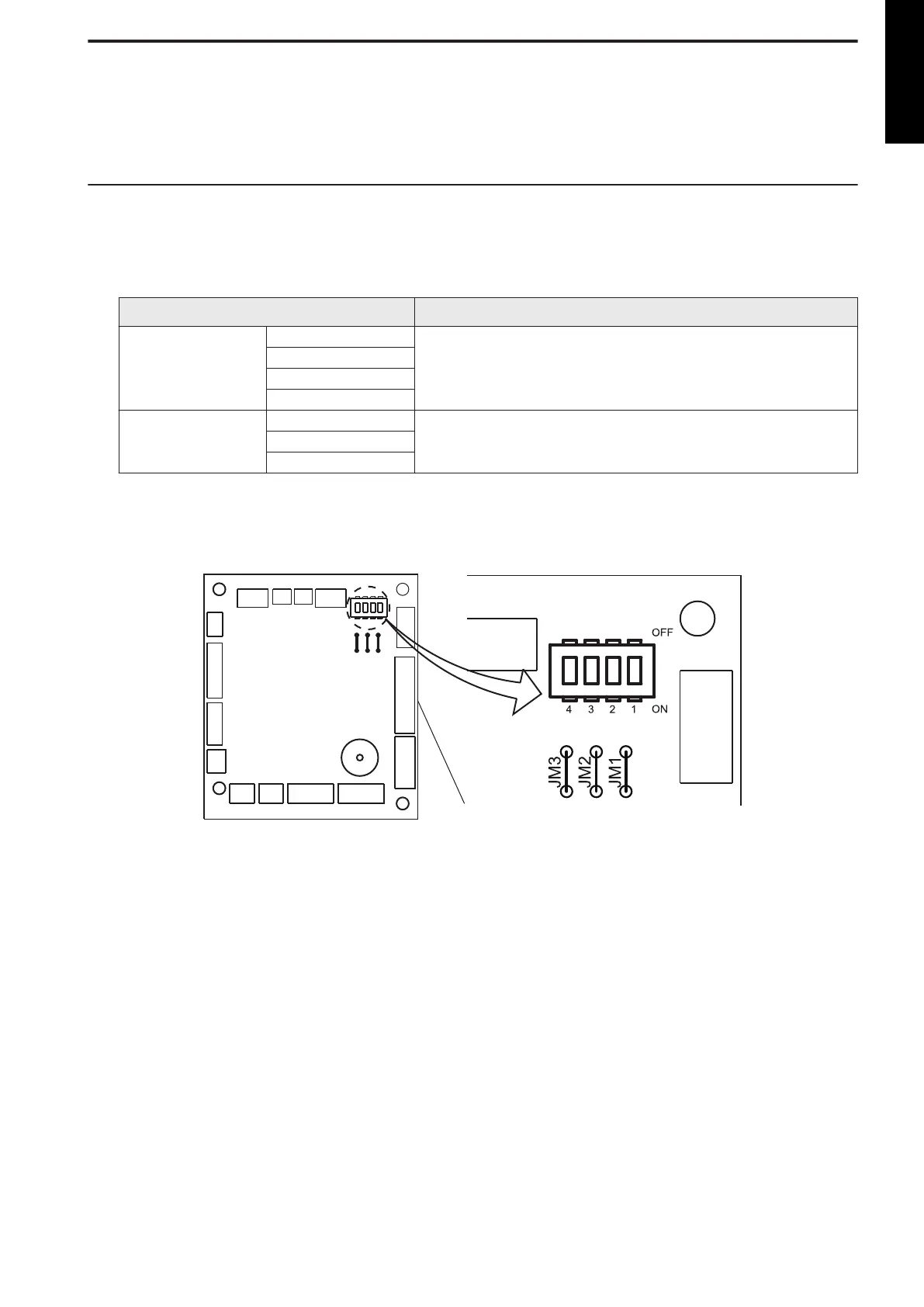

¢ Component location
Components on the indoor unit main PC board used for the function settings are located as
shown in the following figure.
Indoor unit main PCB
