Fujitsu AOYG18LBCB User Manual

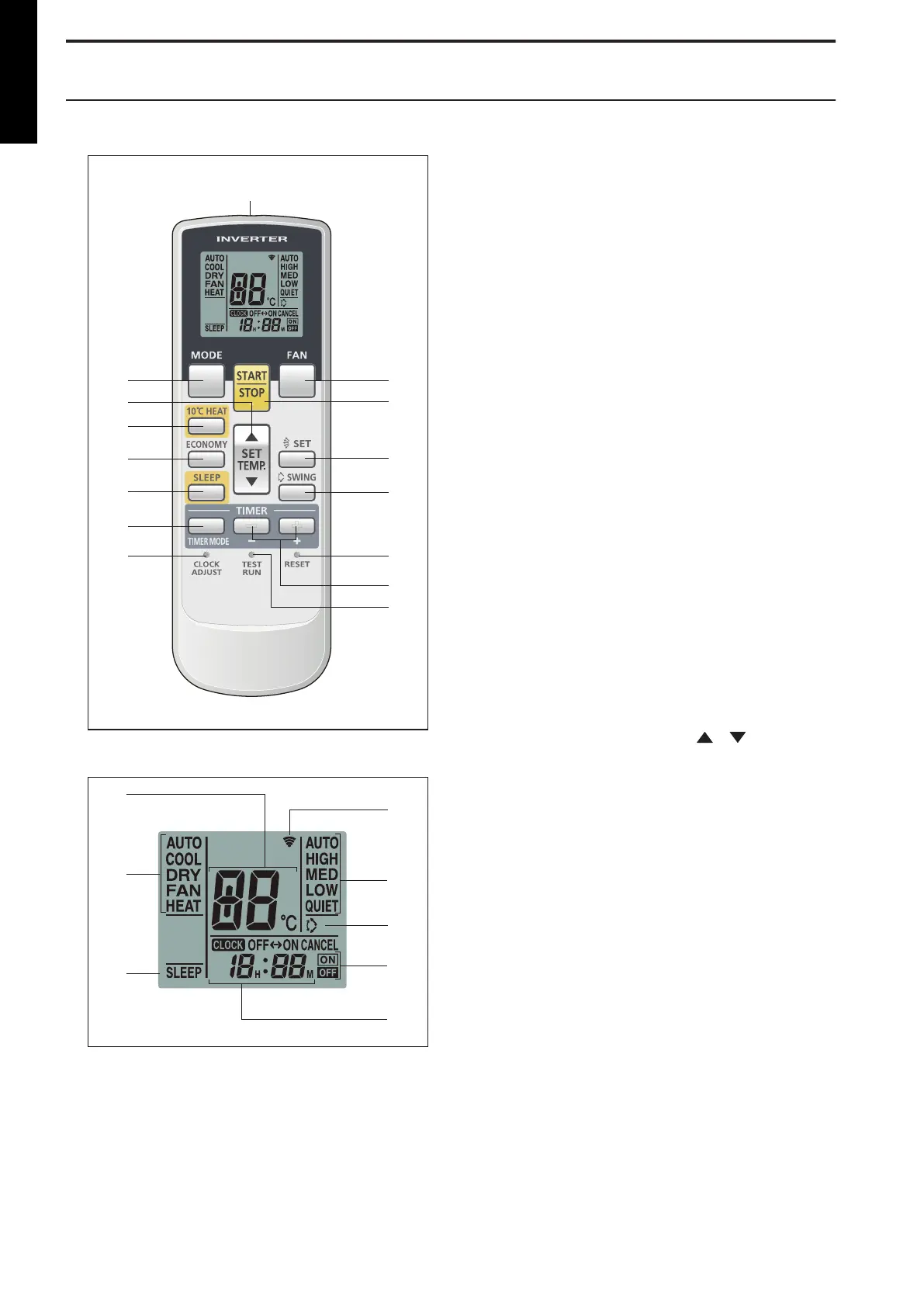

9. Remote controller
9-1. Overview
b
d
e
a
f
g
h
c
o
j
k
l
n
m
i
Display panel
q
r
s
t
u
v
w
p
a FAN button
Selects the fan speed (AUTO, HIGH, MED, LOW, and
QUIET).
b START/STOP button
Starts and stops operation.
c SET button (vertical)
Adjusts the vertical airflow direction.
d SWING button
Sets the automatic swing operation and selects swing
mode (Up/down, Left/right, Up/down/left/right, and Stop
swing).
e RESET button
Used when replacing batteries.
f Timer set (- / +) button
Sets the current time and on-off time.
g TEST RUN button
Only used for the initial test in the unit installation.
h CLOCK ADJUST button
Used for adjusting the clock.
i TIMER MODE button
Selects the timer mode (off timer, on timer, program
timer, and timer reset).
j SLEEP button
Pressed to select sleep timer.
k ECONOMY button
l 10 °C HEAT button
m
SET TEMP. (temperature) (
/ ) button
• Sets desired temperature.
• Sets remote controller custom code.
n MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN,
and HEAT).
• Starts/ends the remote controller custom code (max.
4 types) change.
o Signal transmitter
p Signal transmit indicator
q Fan speed indicator
r Swing indicator
s Timer mode indicator
t Clock indicator
u Sleep indicator
v Operating mode indicator
w Temperature indicator
NOTE:
Functions may differ by type of the in-
door unit. For details, refer to the oper-
ation manual.
DESIGN & TECHNICAL MANUAL
- 22 -
CASSETTE TYPE AUYG18-24LVL

Fujitsu AOYG18LBCB Specifications

General

Type	Air conditioner outdoor unit
Ionizer	No
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Hose length (min)	15 m
Remotely operated	Yes
Drain hose diameter	32 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP)	4.2
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	11.5 A
Current (heating)	13.5 A
AC input frequency	50 Hz
Design load (cooling)	298 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	1819 kW
Energy efficiency class (heating) (Warmer heating season)	A+
Outdoor unit depth	290 mm
Outdoor unit width	799 mm
Outdoor unit height	632 mm
Outdoor unit weight	36000 g
Outdoor units quantity	1
Outdoor unit noise level	50 dB
Cooling airflow (outdoor unit)	2380 m³/h
Indoor unit noise level (high speed)	- dB
