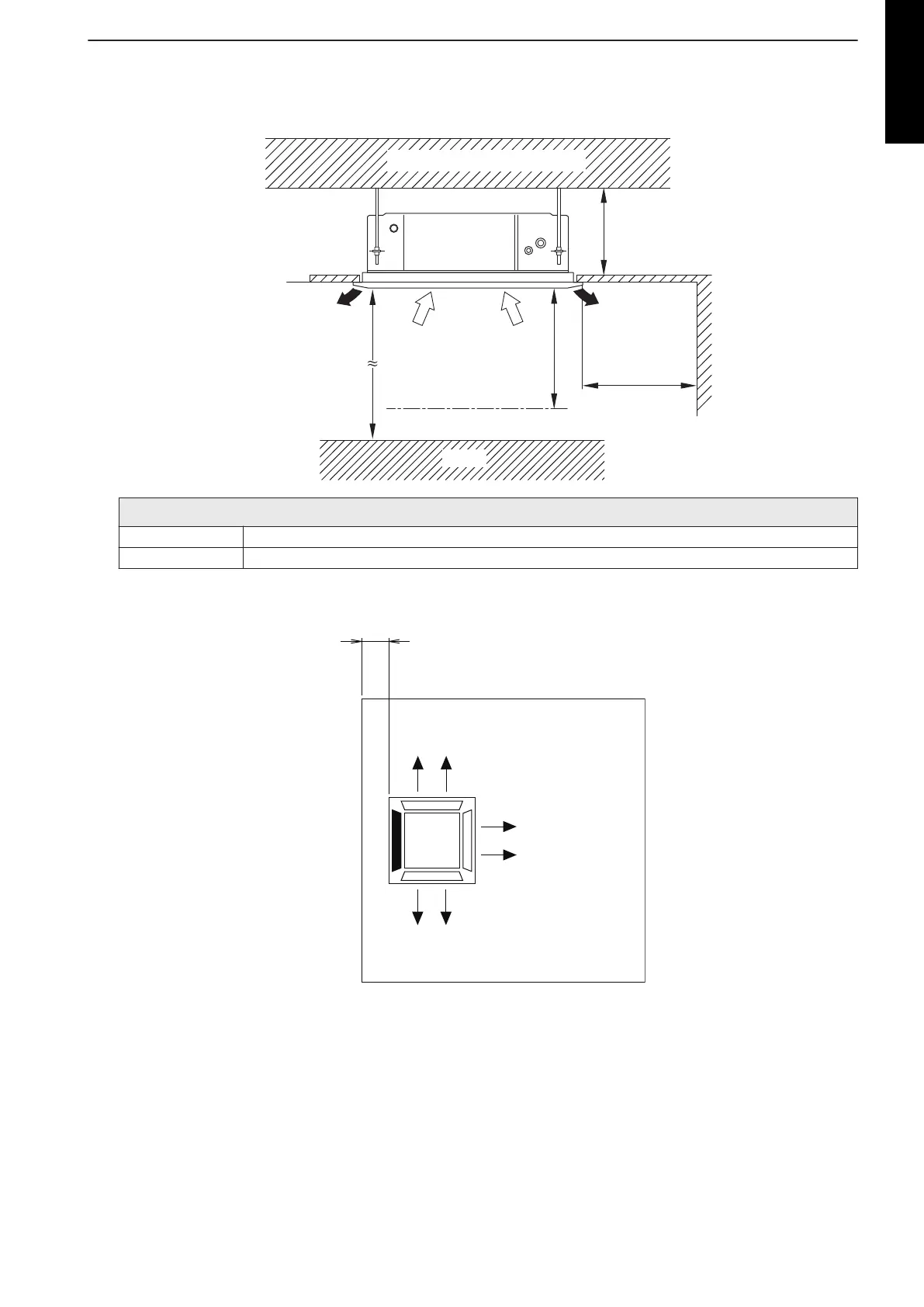

2-2. Installation space requirement
1,000
or more
1,000
or more
1,800
or more
262
or more
Strong and durable ceiling
Obstruction
Floor
Unit: mm
Maximum height from floor to ceiling (Unit: mm)
Standard 2,700
High ceiling 3,000
3-way direction setting:
NOTES:
• To set “3-direction”, optional Air outlet shutter plate (UTR-YDZB) must be installed, and the
“outlet-direction” need to be switched to “3-way” by remote controller.
*When installing the indoor unit, be careful about the maintenance space.
• The ceiling height cannot be set in the 3-way outlet mode. Therefore, ceiling height setting
change by function setting 20 is prohibited. For details, refer to "Contents of function setting"
on page 29.
- 5 -
CASSETTE TYPE
AUYG18-24LVL
