Fujitsu AOYG18LBCB User Manual

¢

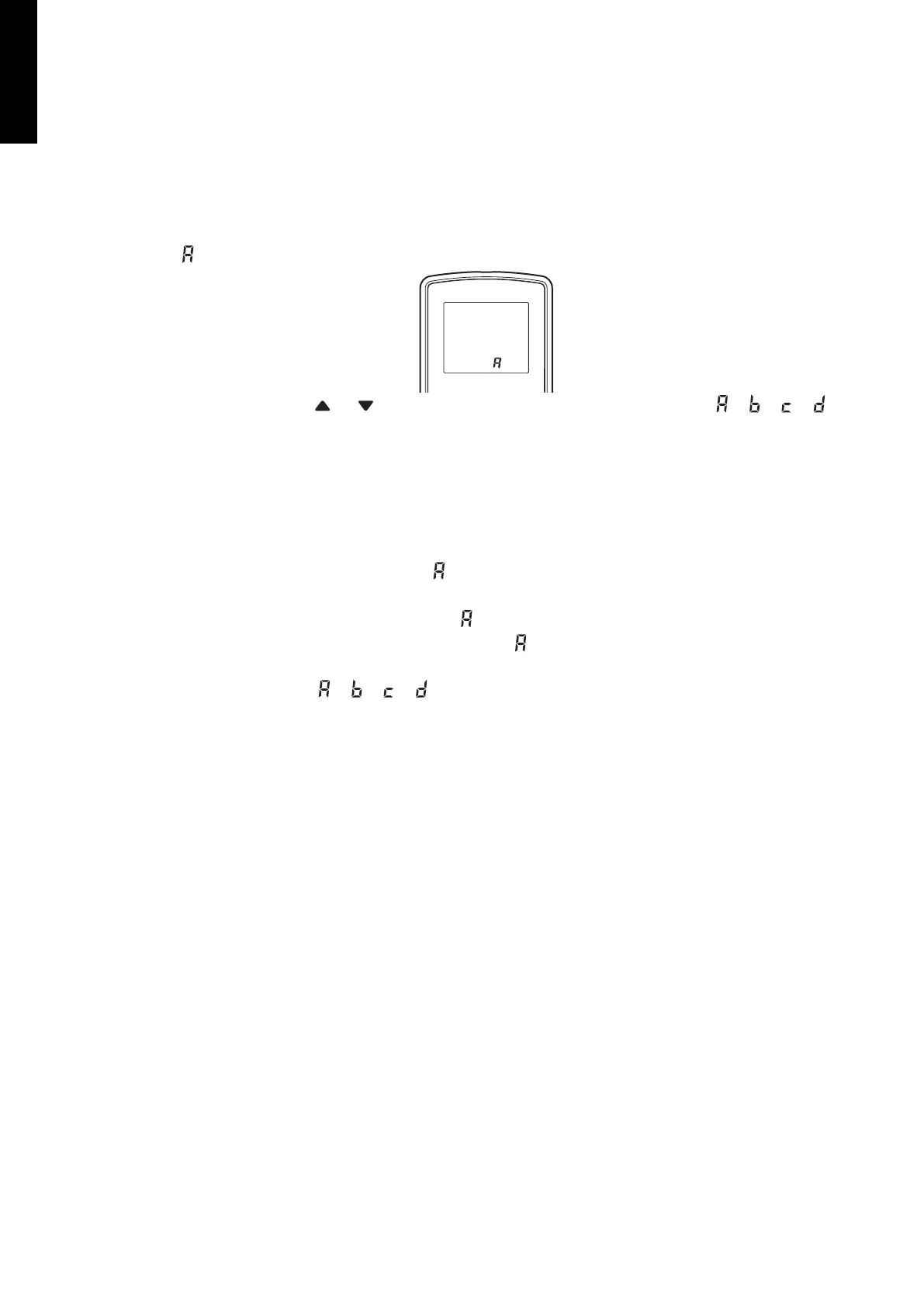

Custom code setting for wireless remote controller
To interconnect the air conditioner and the wireless remote controller, assignment of the custom
code for the wireless remote controller is required.
NOTE:
Air conditioner cannot receive a custom code if the air conditioner has not been set for
the custom code.
1. Press the START/STOP button until only the clock is displayed on the remote controller dis-
play.
2. Press the MODE button for at least 5 seconds to display the current custom code. (Initially
set to
.)
3.
Press the SET TEMP. (
or ) button to change the custom code between → → → .
Match the code on the display to the air conditioner custom code.
4. Press the MODE button again to return to the clock indicator. The custom code will be
changed.
NOTES:
• If no button is pressed within 30 seconds after the custom code is displayed, the system re-
turns to the original clock indicator. In this case, start again from step 1.
•
The air conditioner custom code is set to
prior to shipment. To change the custom code,
contact your retailer.
•
The remote controller resets to custom code
when the batteries in the remote controller are
replaced. If you use a custom code other than code
, reset the appropriate custom code af-
ter replacing the batteries. If you do not know the assigned code for the air conditioner, try
each of the custom code (
→ → → ) until you find the code which operates the air condi-
tioner.
DESIGN & TECHNICAL MANUAL
- 32 -
CASSETTE TYPE AUYG18-24LVL

Fujitsu AOYG18LBCB Specifications

General

Type	Air conditioner outdoor unit
Ionizer	No
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Hose length (min)	15 m
Remotely operated	Yes
Drain hose diameter	32 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP)	4.2
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	11.5 A
Current (heating)	13.5 A
AC input frequency	50 Hz
Design load (cooling)	298 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	1819 kW
Energy efficiency class (heating) (Warmer heating season)	A+
Outdoor unit depth	290 mm
Outdoor unit width	799 mm
Outdoor unit height	632 mm
Outdoor unit weight	36000 g
Outdoor units quantity	1
Outdoor unit noise level	50 dB
Cooling airflow (outdoor unit)	2380 m³/h
Indoor unit noise level (high speed)	- dB
