 Multiple outdoor unit installation

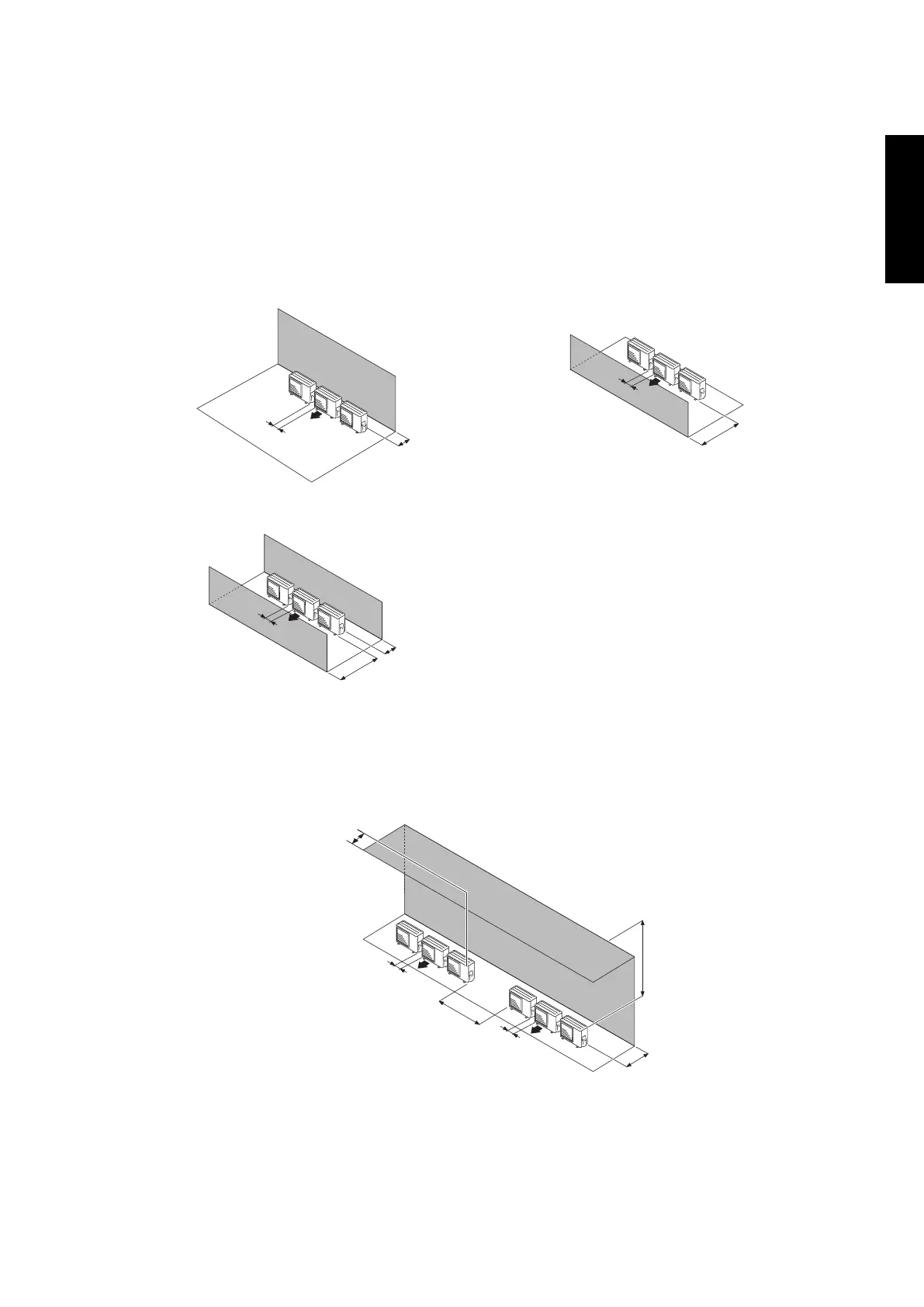

• Provide at least 250 mm of space between the outdoor units if multiple units are installed.
• When routing the piping from the side of an outdoor unit, provide space for piping.
• No more than 3 units must be installed side by side.
When 3 units or more are arranged in a line, provide the space as shown in the following
example “When an obstruction in the upper space:”.
• When the upper space is open:
Unit: mm
Obstacles at rear only Obstacles at front only
200 or more
250 or more
1,000 or more
250 or more
Obstacles at front and rear
200 or more
1,000 or more
250 or more
• When an obstruction in the upper space:
Unit: mm
Obstacles at rear and above.
1,500 or more
200 or more
250 or more
250 or more
Max. 300
1,500 or more
- 41 -
OUTDOOR UNIT AOYG18-24LBCB

Fujitsu AOYG18LBCB Specifications

General

Type	Air conditioner outdoor unit
Ionizer	No
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Hose length (min)	15 m
Remotely operated	Yes
Drain hose diameter	32 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP)	4.2
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	11.5 A
Current (heating)	13.5 A
AC input frequency	50 Hz
Design load (cooling)	298 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	1819 kW
Energy efficiency class (heating) (Warmer heating season)	A+
Outdoor unit depth	290 mm
Outdoor unit width	799 mm
Outdoor unit height	632 mm
Outdoor unit weight	36000 g
Outdoor units quantity	1
Outdoor unit noise level	50 dB
Cooling airflow (outdoor unit)	2380 m³/h
Indoor unit noise level (high speed)	- dB
