5. Wiring diagram
5-1. Models: AOYG18KBTA3 and AOYG24KBTA3
- 349 -

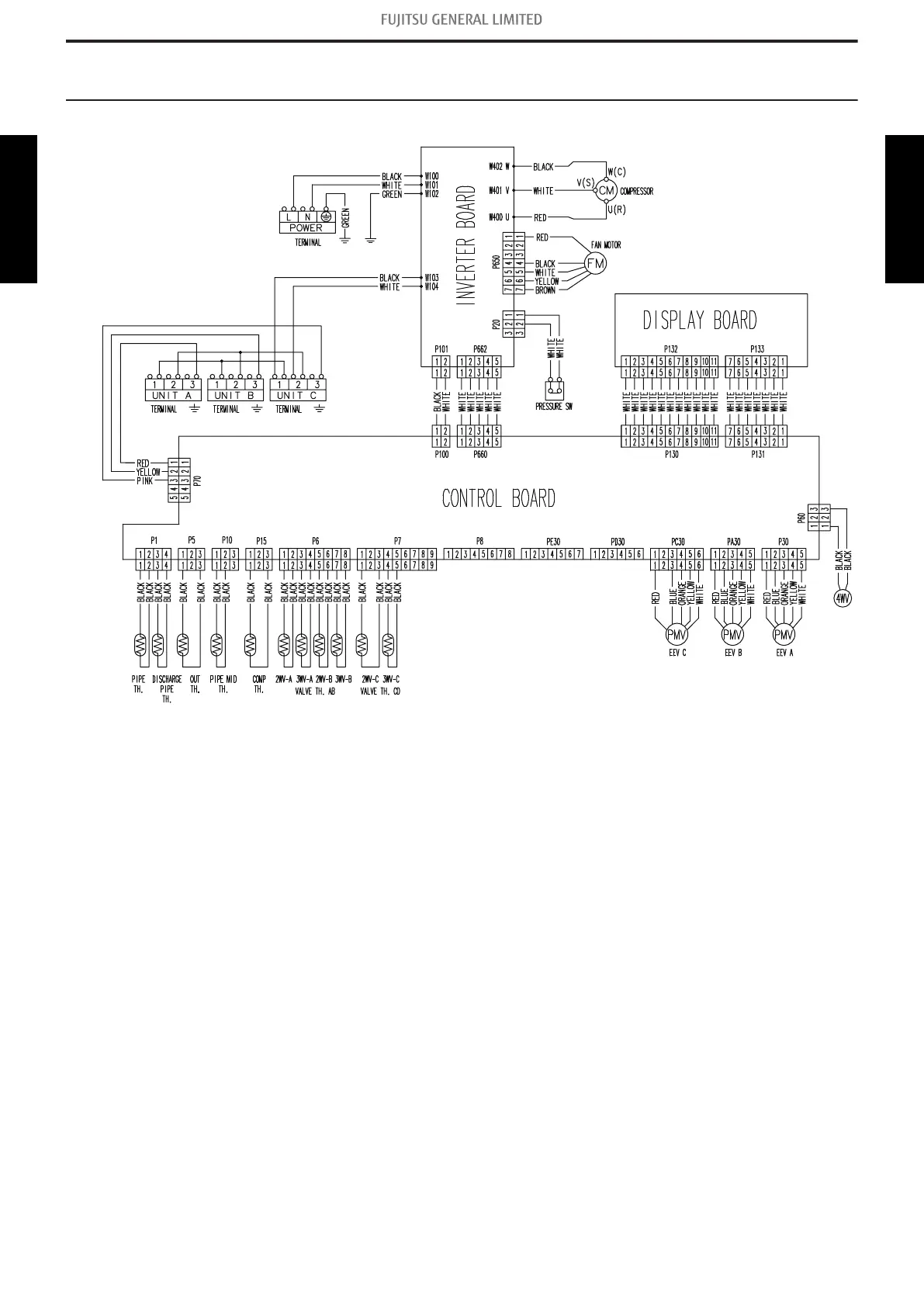

5-1. Models: AOYG18KBTA3 and AOYG24KBTA3 5. Wiring diagram
OUTDOOR UNIT
AOYG18-24KBTA3
OUTDOOR UNIT
AOYG18-24KBTA3
