Fujitsu AOYG24KBTA3 Design & Technical Manual

10. Operation noise (sound pressure)

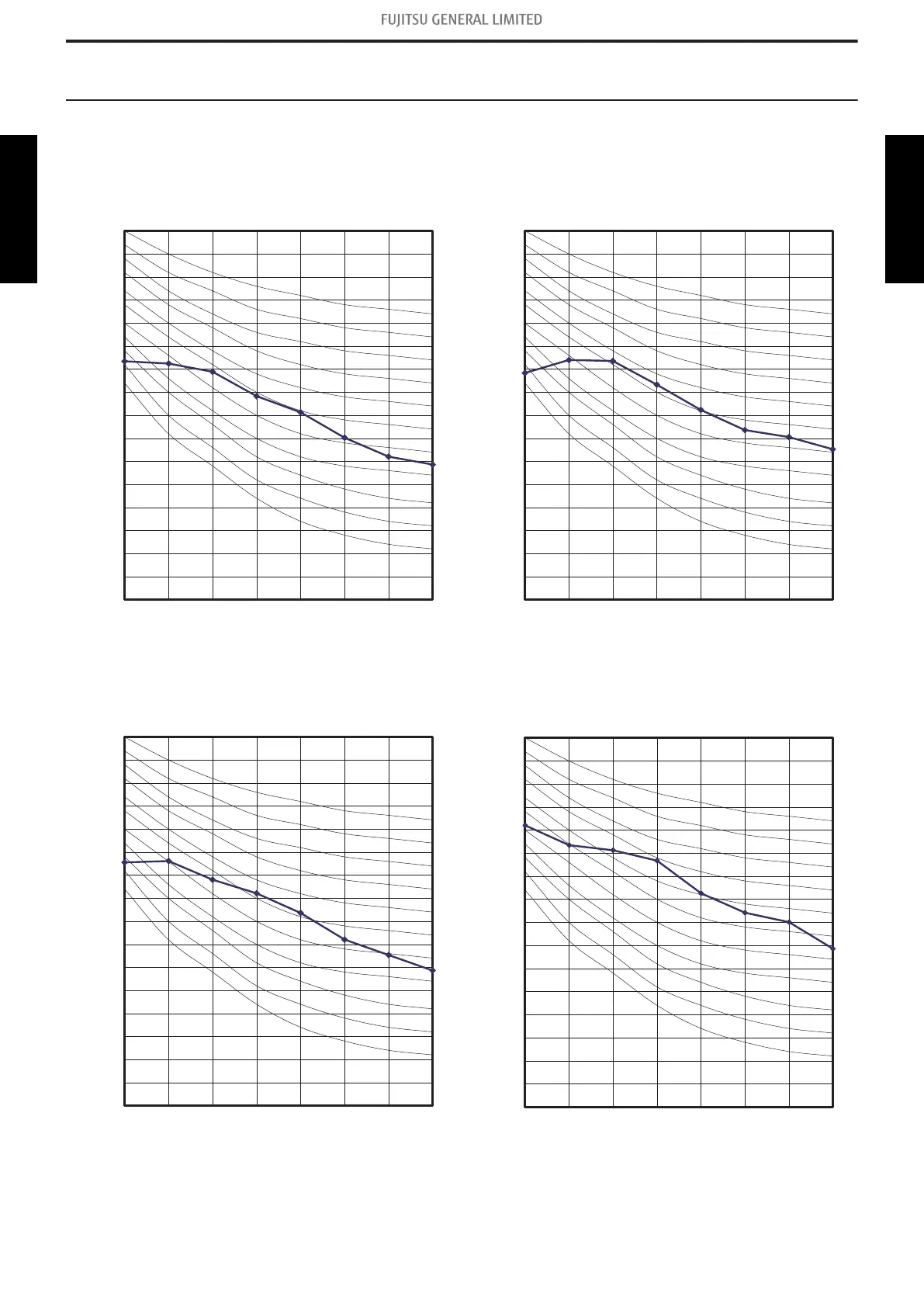

10-1. Noise level curve
¢
Model: AOYG18KBTA3
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 8,0002,000 4,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 8,0002,000 4,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
¢
Model: AOYG24KBTA3
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 8,0002,000 4,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 8,0002,000 4,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
- 435 -
10-1. Noise level curve 10. Operation noise (sound pressure)
OUTDOOR UNIT AOYG18-24KBTA3 OUTDOOR UNIT AOYG18-24KBTA3
