Model: AUXG18KVLA

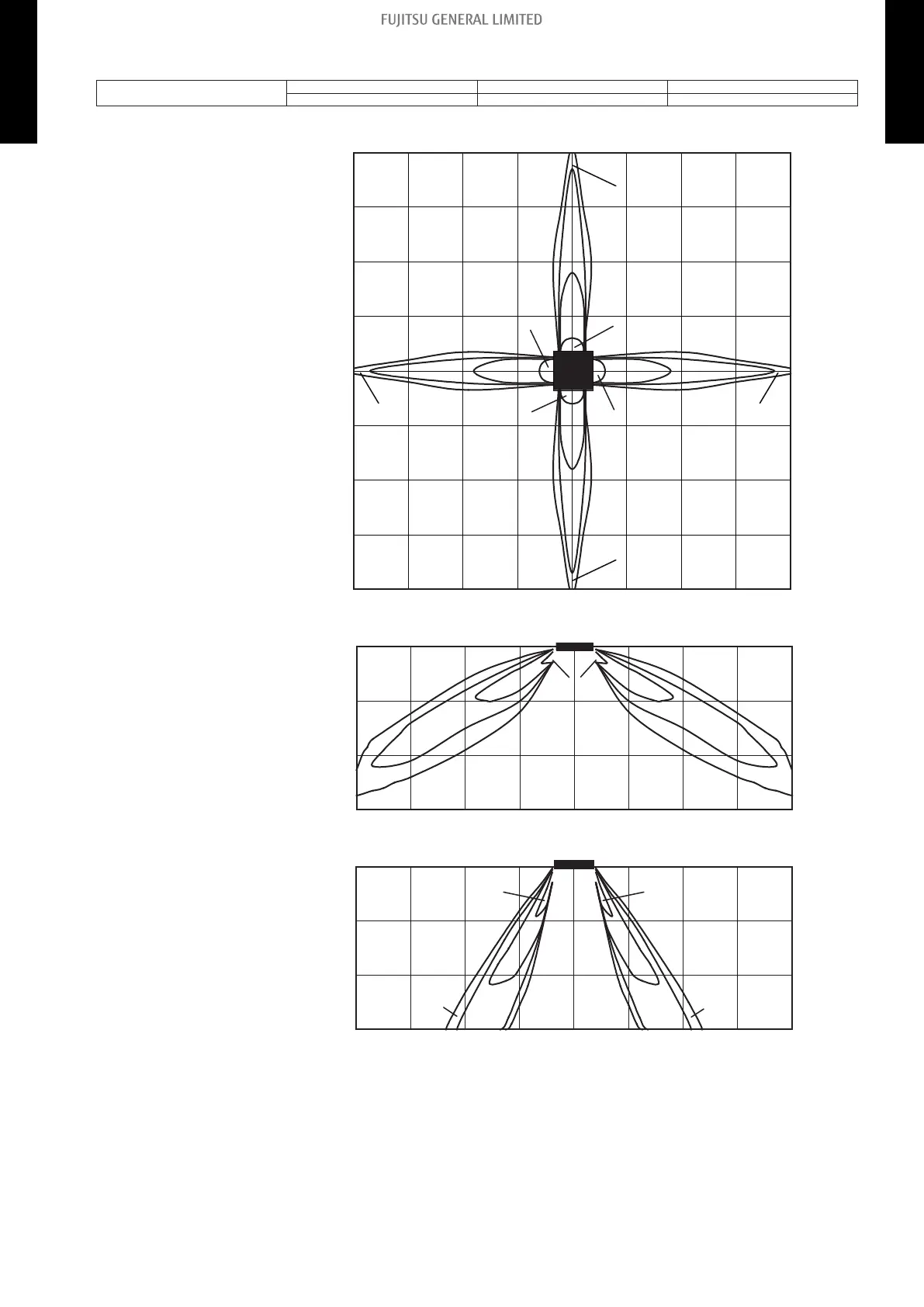

Measuring conditions
Fan speed Operation mode Ceiling mode
HIGH FAN STANDARD
Top view
Horizontal louver: Up
4
3
2
1
0
1
2
3
4
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.5
0.5
0.25
0.25
1
1
0.25 0.25
0.5 0.5
1 1
2
2
2
2
Side view
Horizontal louver: Up
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25 0.25
0.5 0.5
1 1
2
Side view
Horizontal louver: Down
3
2
1
0
Unit: m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25
0.5 0.5
1 1
0.25
2 2
- 77 -
6-1. Compact cassette type 6. Air velocity and temperature distributions
3-UNIT MULTI-SPLIT TYPE 3-UNIT MULTI-SPLIT TYPE
