En-3

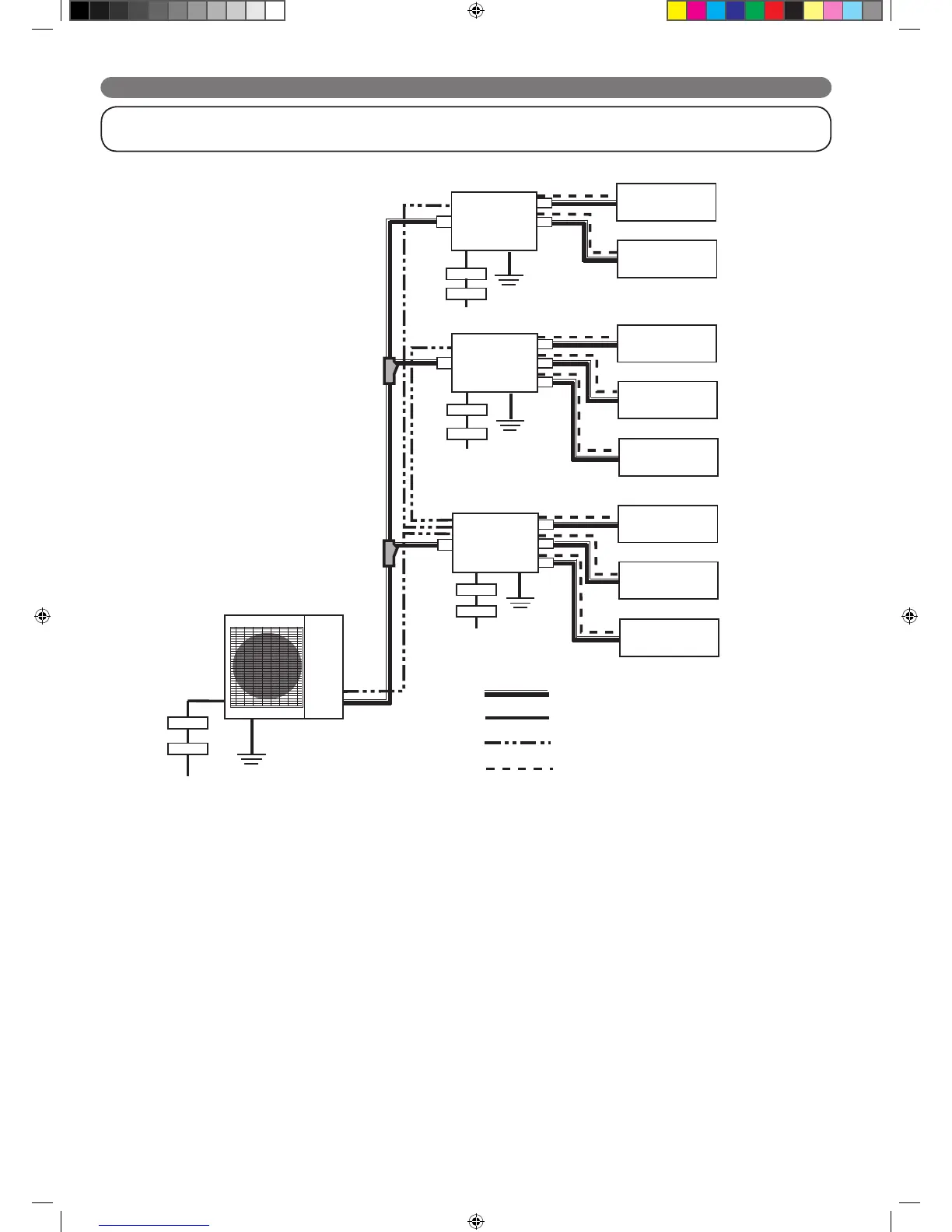

System conguration2. 6.
2 to 8 indoor units can be connected.•
The total capacity of the indoor units connected must be between 11.2 (kw) and 18.2 (kw). For details, refer to the DESIGN&TECHNICAL MANUAL.•
If the total capacity of the connected indoor units exceeds 18.2 (kw) or less than 11.2 (kw), an error will be displayed and the units will be not operate.•
For the installation method of Branch box and indoor units, refer to the installation manuals that come with them.
Primary unit : Branch box that is connected to the Outdoor unit.
Secondary unit : Branch box that is connected to the Branch box
(Primary).
Branch box
(Secondary2)
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Separation tube
Separation tube
Outdoor unit
Piping
Power supply
Transmission line
Power supply and Transmisson line
Power
supply
Power
supply
Power
supply
Power supply
Breaker2
Breaker2
Breaker1
Breaker1
Breaker2 Circuit breaker (over current)
Breaker1 Earth leakage breaker
Branch box
(Primary)
Branch box
(Secondary1)
Breaker2
Breaker1
Breaker2
Breaker1
