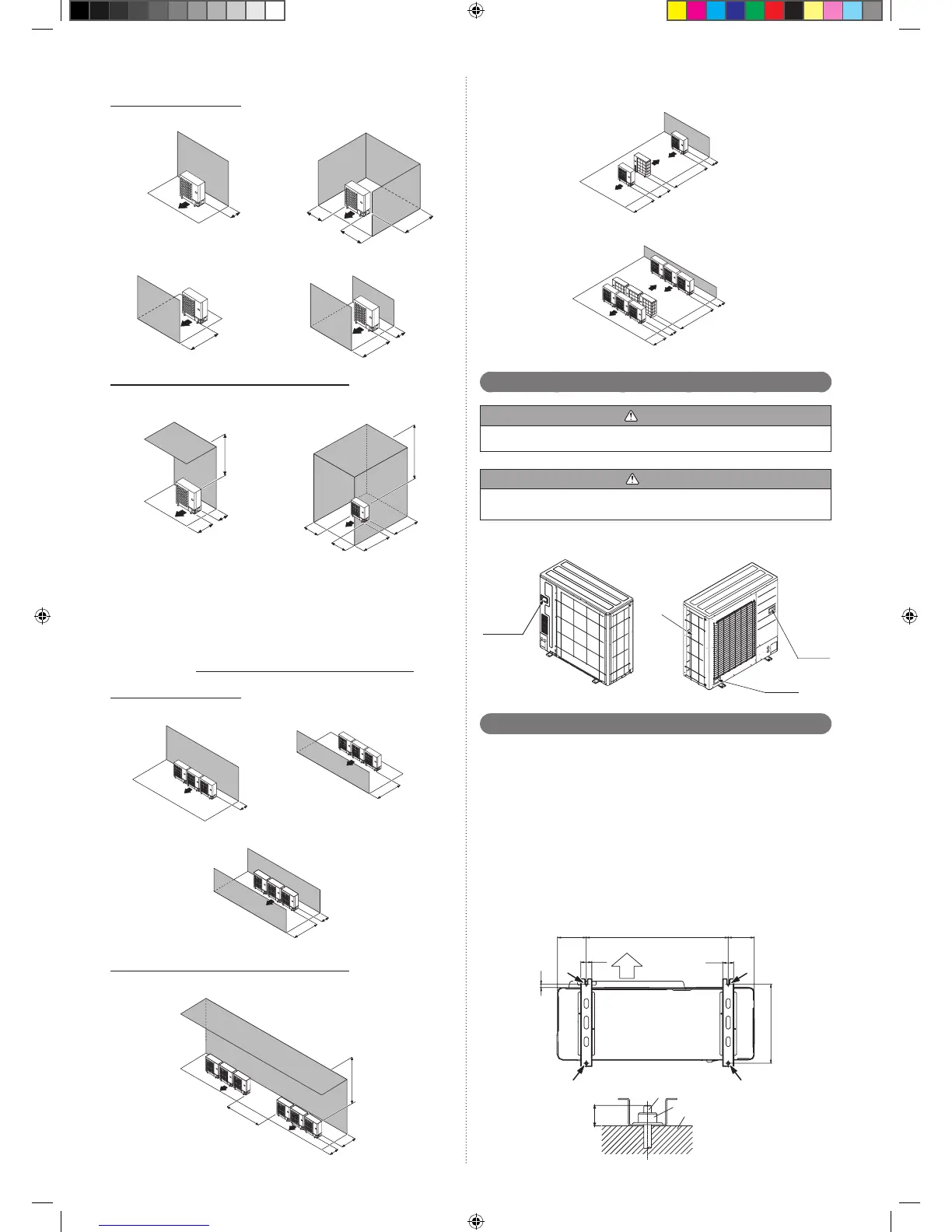

Single outdoor unit installation3. 3. 1.
When the upward area is open (Unit: mm)
(1) Obstacles at rear only
150
(2) Obstacles at rear and sides only
200
300
200
(3) Obstacles at front only
1000 or more
(4) Obstacles at front and rear only
1000 or more
150
When an obstruction is present also in the upward area (Unit : mm)
(1) Obstacles at rear and above only
300
Max. 500
1000
(2) Obstacles at rear, sides, and above
only
1500
250
250
500
Max. 500
Multiple outdoor unit installation3. 3. 2.
Provide at least 25mm of space between the outdoor units if multiple units are •
installed.
When routing the piping from the side of an outdoor unit, provide space for the •
piping.
No more than 3 units must be installed side by side. •
When 3 units or more are arranged in a line, provide the space as shown in the
following example when an obstruction is present also in the upward area.
When the upward area is open (Unit: mm)
(1) Obstacles at rear only
300
(2) Obstacles at front only
1500 or more
(3) Obstacles at front and rear only
500
1500 or more
When an obstruction is present also in the upward area (Unit: mm)
Obstacles at rear and above only•
1500
500
Max. 300
1500
Outdoor units installation in multi row 3. 3. 3. (Unit: mm)
(1) Single parallel unit arrangement
150
600
1000
2000 or more
(2) Multiple parallel unit arrangement
500
600
1500
3000 or more
Transportation of the unit3. 4.
WARNING
Do not touch the ns. Otherwise, personal injury could result.•
CAUTION
When carrying the unit, hold the handles on the right and left sides and be careful. •
If the outdoor unit is carried from the bottom, hands or ngers may be pinched.
Be sure to hold the handles on the sides of the unit. Otherwise, holding the suction •
grille on the sides of the unit may cause deformation.
Handle
Suction
grille
Handle
Handle
Installation of the unit3. 5.
Install 4 anchor bolts at the locations indicated with arrows in the gure.•
To reduce vibration, do not install the unit directly on the ground. Install it on a •
secure base (such as concrete blocks).
The foundation shall support the legs of the unit and have a width of 50mm or more.•
Depending on the installation conditions, the outdoor unit may spread its vibration •
during operation, which may cause noise and vibration. Therefore, attach damping
materials (such as damping pads) to the outdoor unit during installation.
Install the foundation, making sure that there is enough space for installing the •
connection pipes.
Secure the unit to a solid block using foundation bolts.(Use 4 sets of commercially •
available M10 bolts, nuts, and washers.)
The bolts should protrude 20mm. (Refer to the gure.)•
If overturning prevention is required, purchase the necessary commercially •
available items.
166
AIR
650 154
50 50
16
410
(Unit : mm)
Bolt
20
Nut
Base
