Fujitsu ARGA18FMTA - Page 39

- (02 - 03) -
OUTDOOR UNIT AOGA18-25FBTAH OUTDOOR UNIT AOGA18-25FBTAH
MODEL

: AOGA25FBTAH
(Unit : mm)
INSTALLATION PLACE

(Unit : mm)
When there are obstacles at the back,
side(s), and top.
When there are obstacles at the back
side with the installation of more than
one unit.
When there are obstacles at the back
and front sides.
600
or more
250
or more
250
or more
300
or more
*600 - 1000
100
or more
300
or more
*100 - 300
250 or more
(Service space)
* If the space is larger than stated, the condition will be the same as those without any obstacles.
Height above the oor level should be 50 mm or more.

•
Air flow
900
650
830
370
99
196
21
9
77
31 330
400
170
147
12

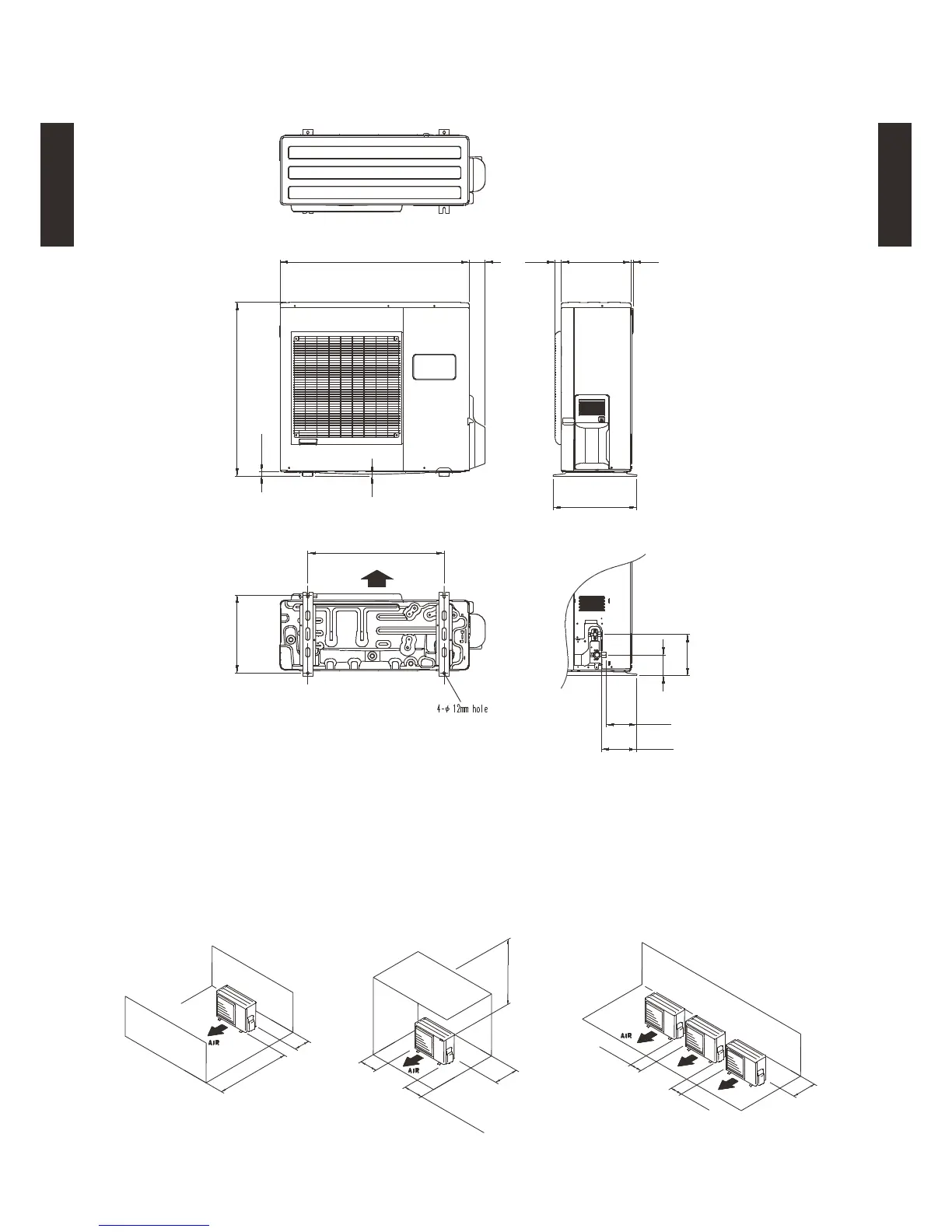

Top view
Front view
Side view
Bottom view
