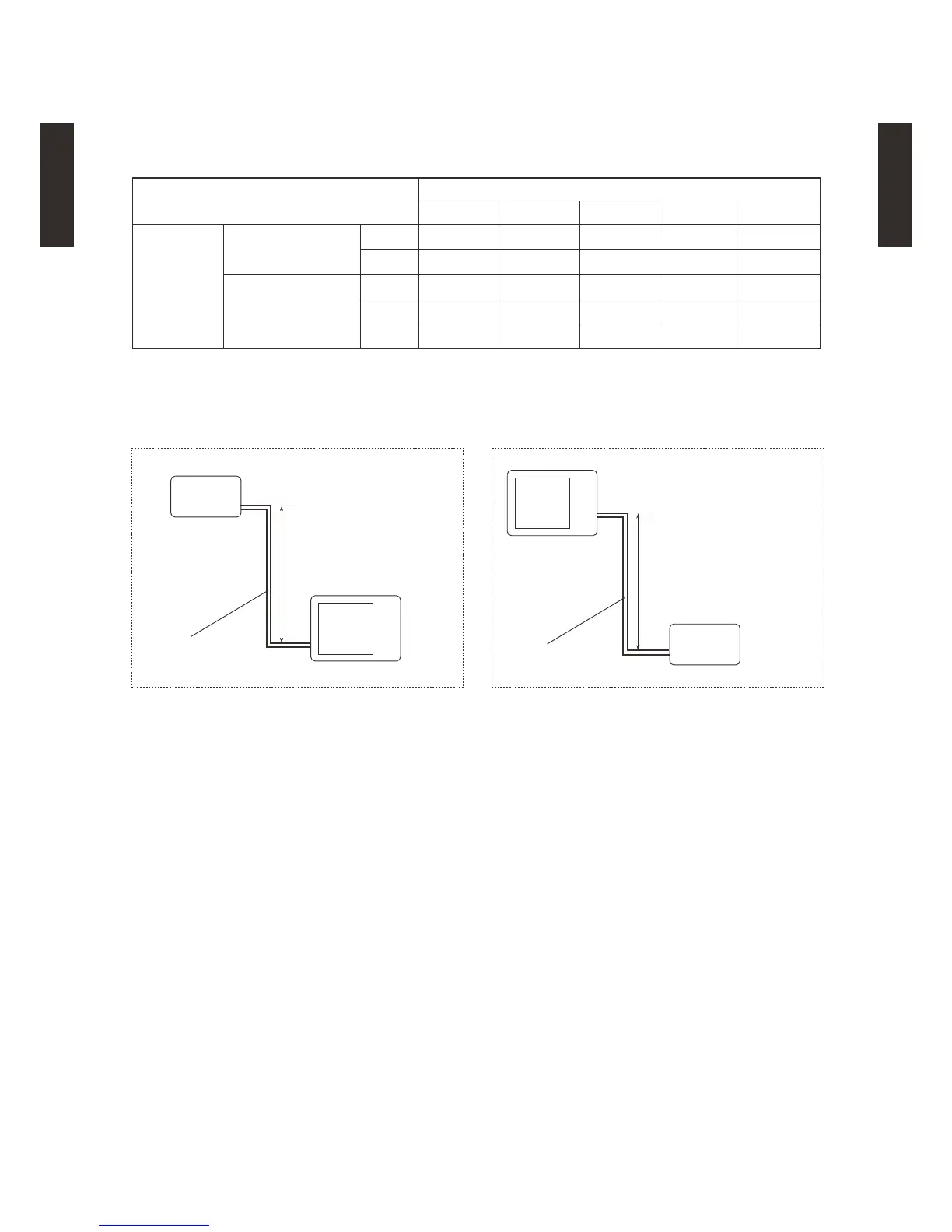

OUTDOOR UNIT AOGA18-25FBTAH OUTDOOR UNIT AOGA18-25FBTAH
CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFFERENCE
This table is created using the maximum capacity.
MODEL

: AOGA18FBTAH
Outdoor unit
Indoor unit
Connection pipe

2 Indoor unit is lower than outdoor unit.
H
Indoor unit
Outdoor unit
Connection pipe

1 Indoor unit is higher than outdoor unit.
H
Height difference H
COOLING
Pipe length (m)
5 7.5 10 15 20
Height
difference H
(m)

1
Indoor unit is higher
than outdoor unit
8 - - 0.983 0.979 0.977
5 0.997 0.992 0.988 0.984 0.982
0 1.005 1.000 0.996 0.992 0.990

2
Indoor unit is lower
than outdoor unit
-5 1.005 1.000 0.996 0.992 0.990
-8 - - 0.996 0.992 0.990
