OUTDOOR UNIT AOGA18-25FBTAH OUTDOOR UNIT AOGA18-25FBTAH

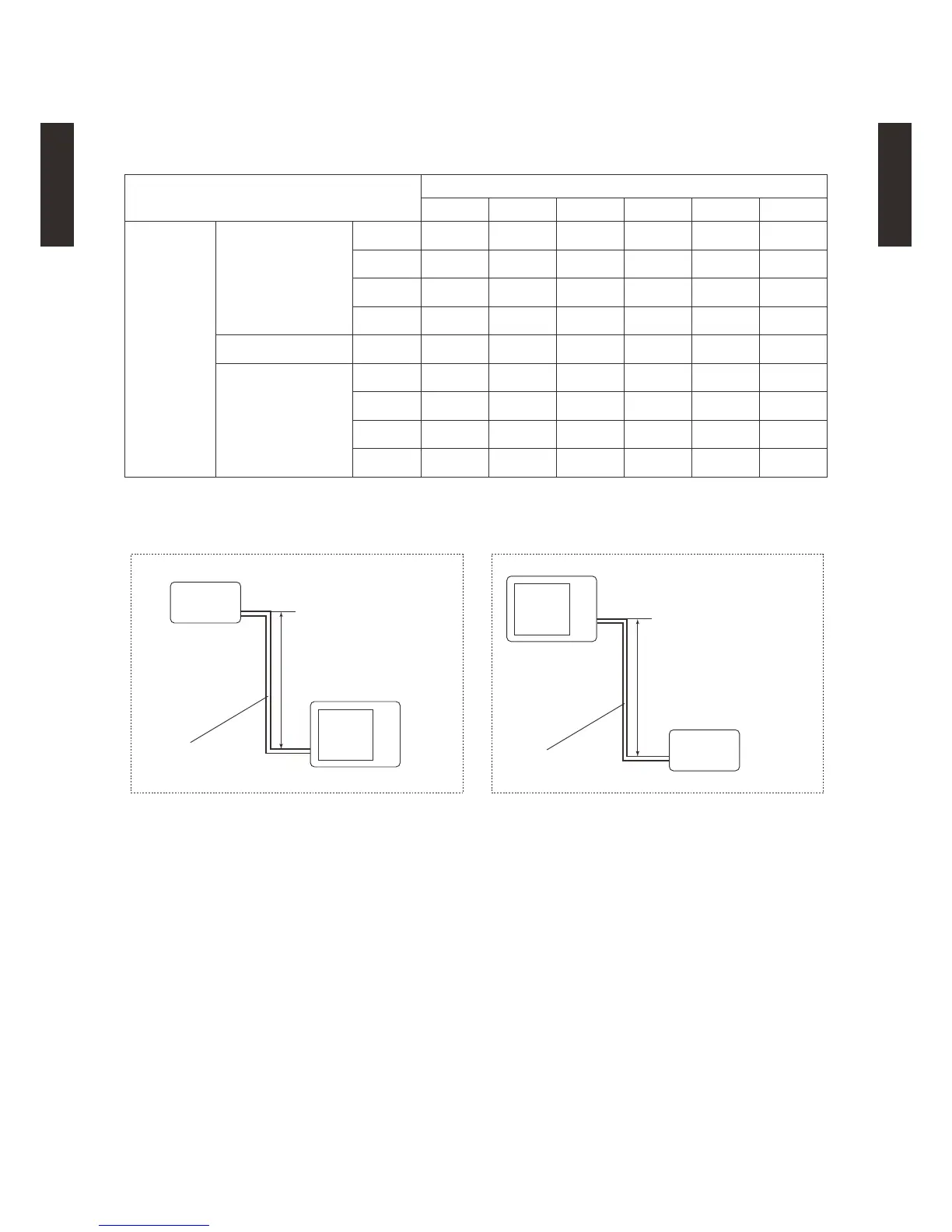

This table is created using the maximum capacity.
MODEL

: AOGA25FBTAH
Outdoor unit
Indoor unit
Connection pipe

2 Indoor unit is lower than outdoor unit.
H
Indoor unit
Outdoor unit
Connection pipe

1 Indoor unit is higher than outdoor unit.
H
Height difference H
COOLING
Pipe length (m)
5 7.5 10 15 20 25
Height
difference H
(m)

1
Indoor unit is higher
than outdoor unit
15 - - - 0.972 0.970 0.968
10 - - 0.979 0.975 0.973 0.971
7.5 - 0.987 0.983 0.979 0.977 0.975
5 0.997 0.992 0.988 0.984 0.982 0.980
0 1.005 1.000 0.996 0.992 0.990 0.988

2
Indoor unit is lower
than outdoor unit
-5 1.005 1.000 0.996 0.992 0.990 0.988
-7.5 - 1.000 0.996 0.992 0.990 0.988
-10 - - 0.996 0.992 0.990 0.988
-15 - - - 0.992 0.990 0.988
