Specifications

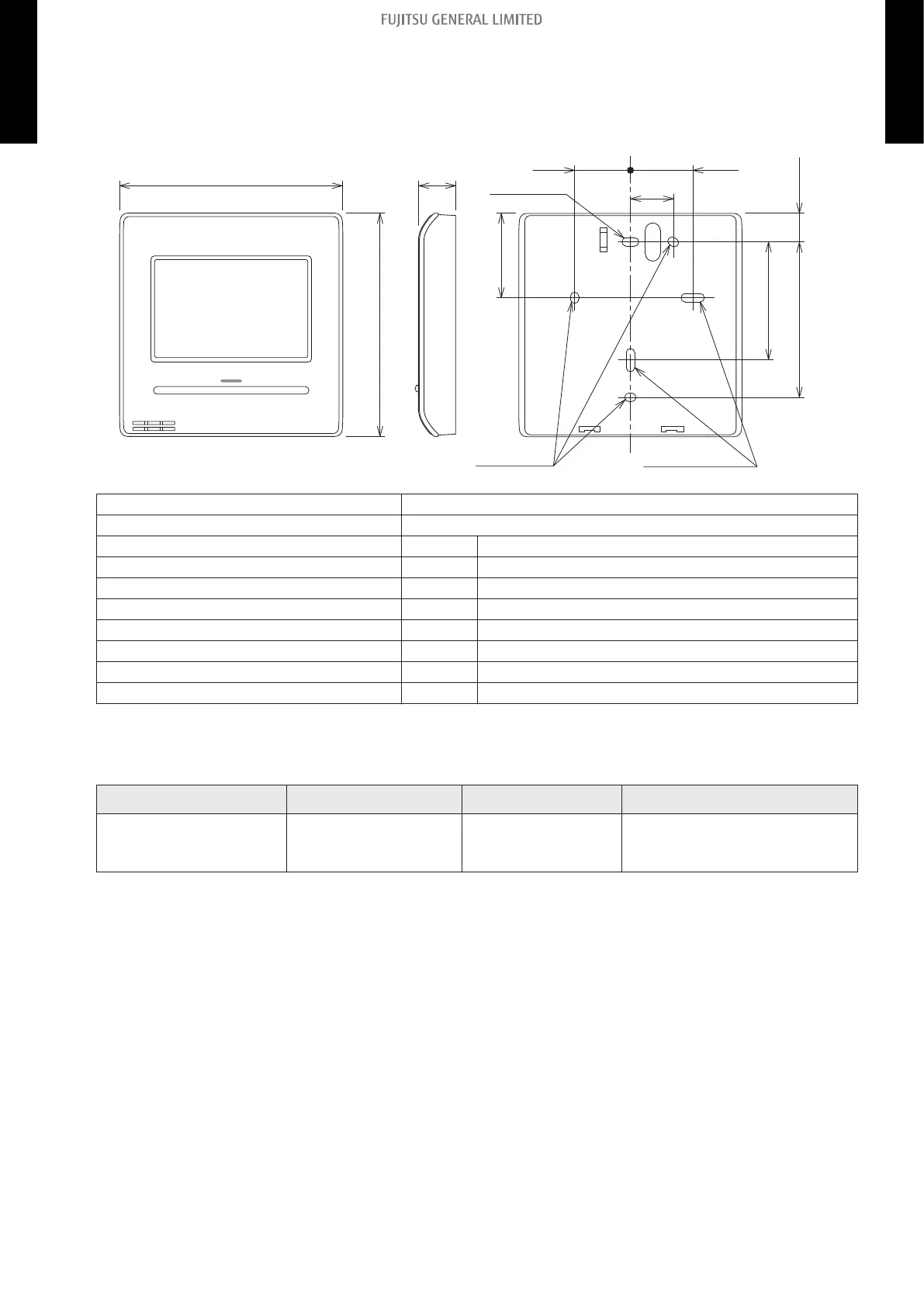

Dimensions and other specifications on the wired remote controller are as follows.
Unit: mm
Hole: 9 × 4.5
Hole: 6 × 4.5 Hole: 12.5 × 4.5
20.4120
30 33
23
15.383.5
120
45.3
63.5
Model name UTY-RNRT*
Display 3.8-inch FSTN LCD (255 × 160 dots) with touch screen
Dimensions (H × W × D) mm 120 × 120 × 20.4
Weight g 220
Input voltage V DC 12
Power consumption W Max. 0.3
Usage temperature range °C 0 to 40
Usage humidity range % 20 to 90 (no condensation)
Storage temperature range °C -10 to 60
Storage humidity range % 20 to 90 (no condensation)
Wiring specifications
Use Cable size Wire type Remarks
Remote controller cable
0.33 to 1.25 mm
2
Non-polar 2-core,
Twisted pair
Use shielded cable (locally
purchased) in accordance with
the regional cable standard.
