3. Installation space
3-1. Models: AOTH30KBTA, AOTH36KBTA, AOTH45KBTA, and
AOTH54KBTA
¢
Space requirement
Provide sufficient installation space for product safety.
CAUTION
Keep the space shown in the installation examples.
If the installation is not performed accordingly, it could cause a short circuit and result in a lack of
operating performance.

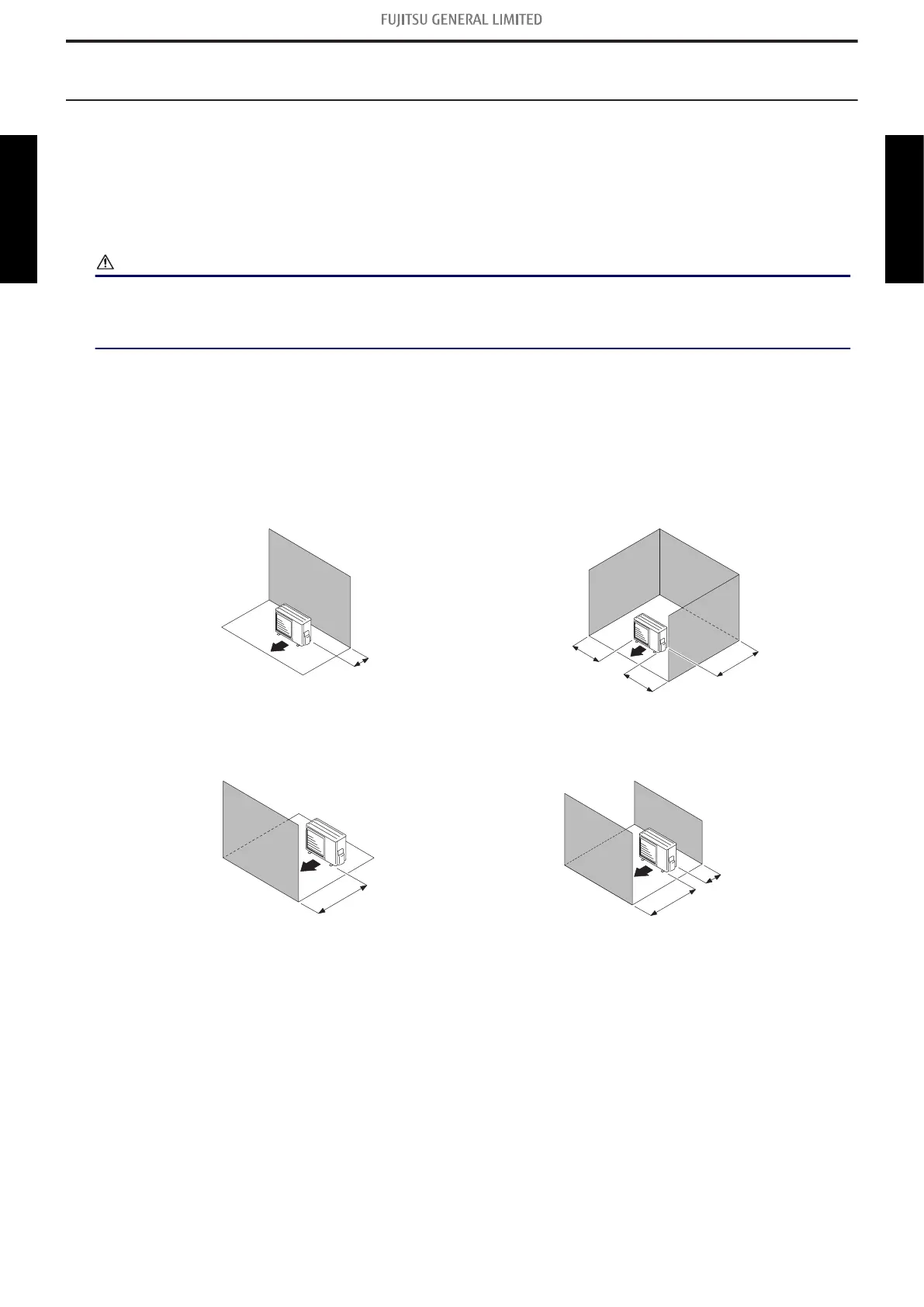

 Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
100 or more
250 or more
100 or more
100 or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
500 or more
500 or more
100 or more
- 64 -
3-1. Models: AOTH30KBTA, AOTH36KBTA, AOTH45KBTA, and AOTH54KBTA
3. Installation space
OUTDOOR UNIT AOTH30-54KBTA OUTDOOR UNIT AOTH30-54KBTA
