Multiple outdoor unit installation
• Provide at least 250 mm of space between the outdoor units if multiple units are installed.
• When routing the piping from the side of an outdoor unit, provide space for piping.
• No more than 3 units must be installed side by side.
When 4 units or more are arranged in a line, provide the space as shown in the following ex-
ample “When an obstruction in the upper space:”.

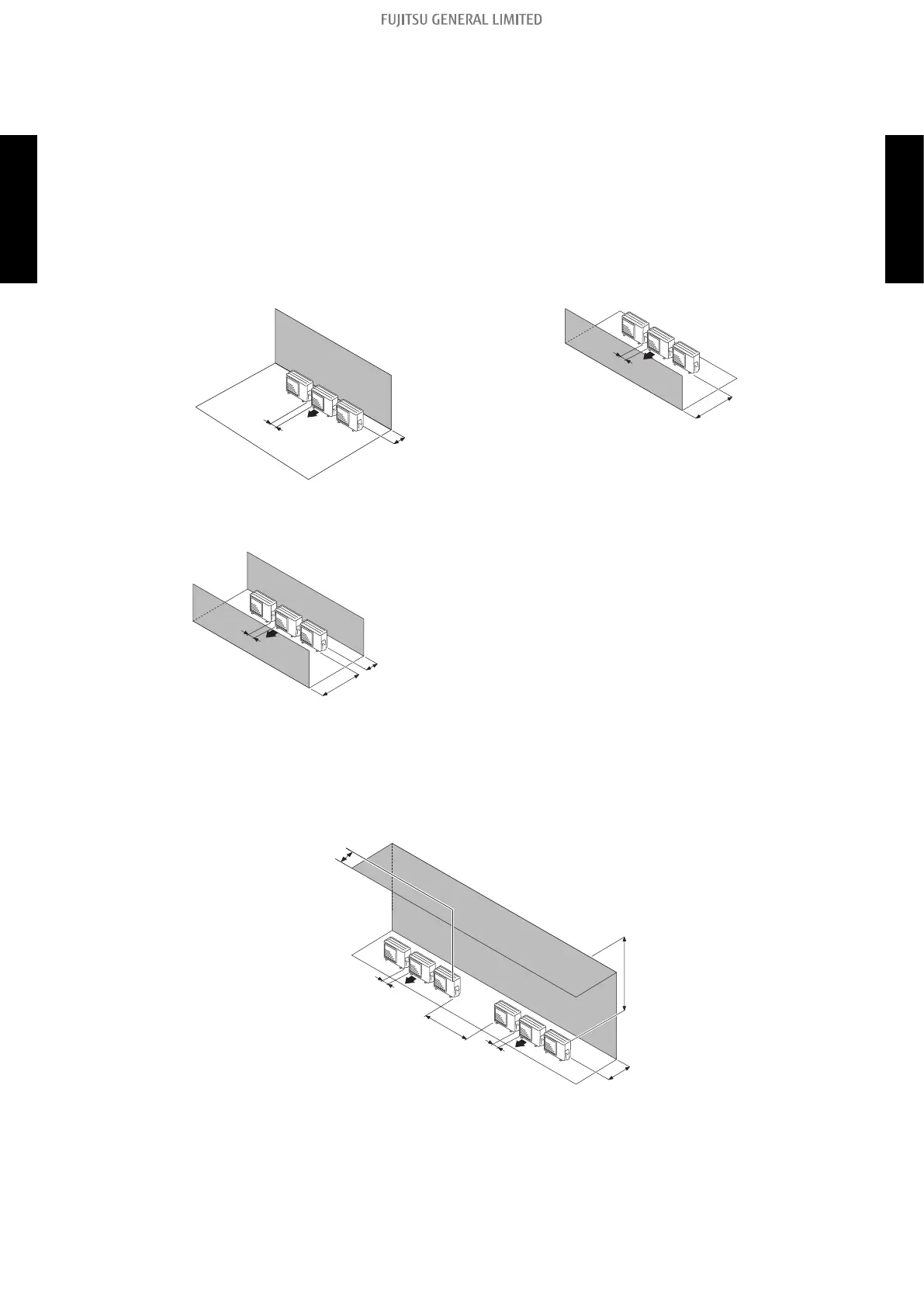

• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the front only.
When there are obstacles at the front and
rear.
500 or more
1,500 or more
250 or
more
• When an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear and above.
1,500 or more
500 or more
250 or more
250 or more
Max. 300
1,500 or more
- 66 -
3-1. Models: AOTH30KBTA, AOTH36KBTA, AOTH45KBTA, and AOTH54KBTA
3. Installation space
OUTDOOR UNIT
AOTH30-54KBTA
OUTDOOR UNIT
AOTH30-54KBTA
