Getting started

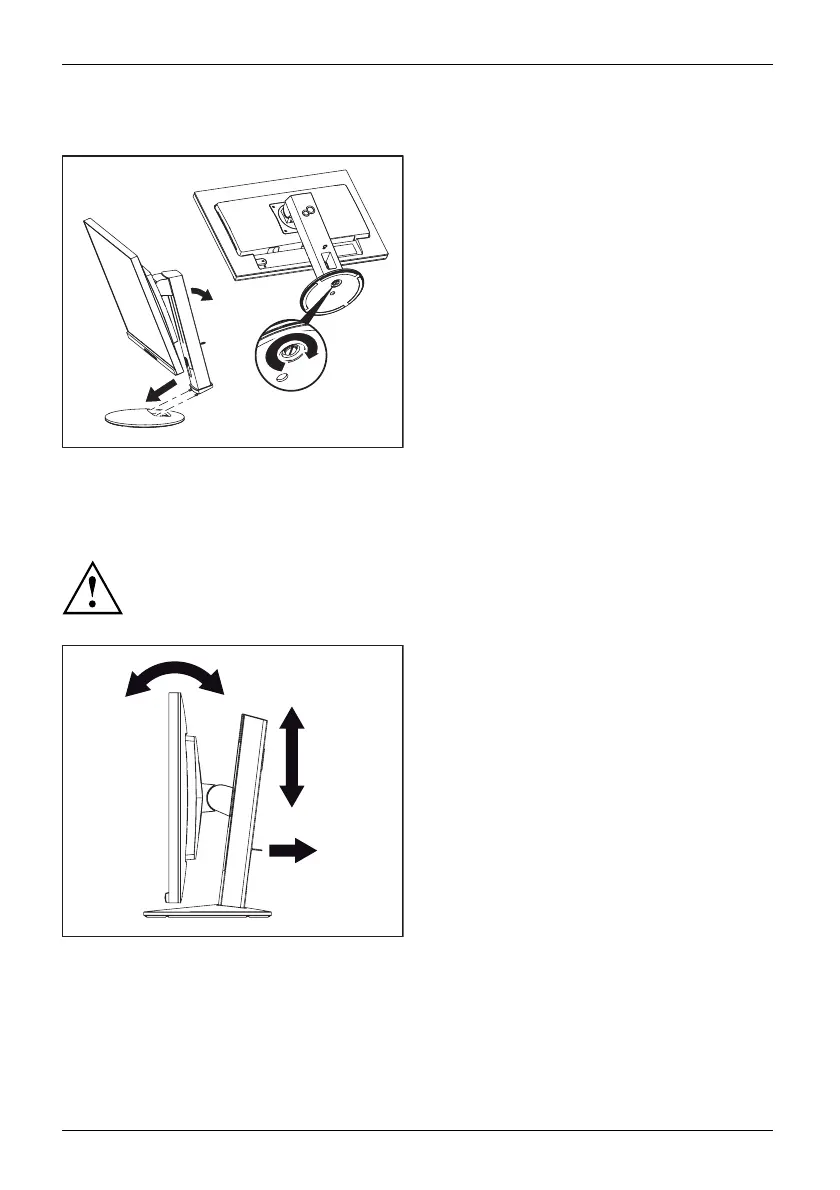

Mounting the monitor base
2
1
3
► Insert the ba se plate at the foot (1 and 2).
► Secure the base plate with the screw (3).
► Place the mo nitor in the operating position.
Adjusting height
The height of the screen can be adjusted by approximately 130 mm.
The height adjustment is fixed in the transport position.
1
2
3
► To free the fixing, remove the locking
pin on the flange (1).
► Grasp the monitor with both hands on
the right and left edge of the casing
and move it up or down (2).
14 Fujitsu
