Getting s tarted

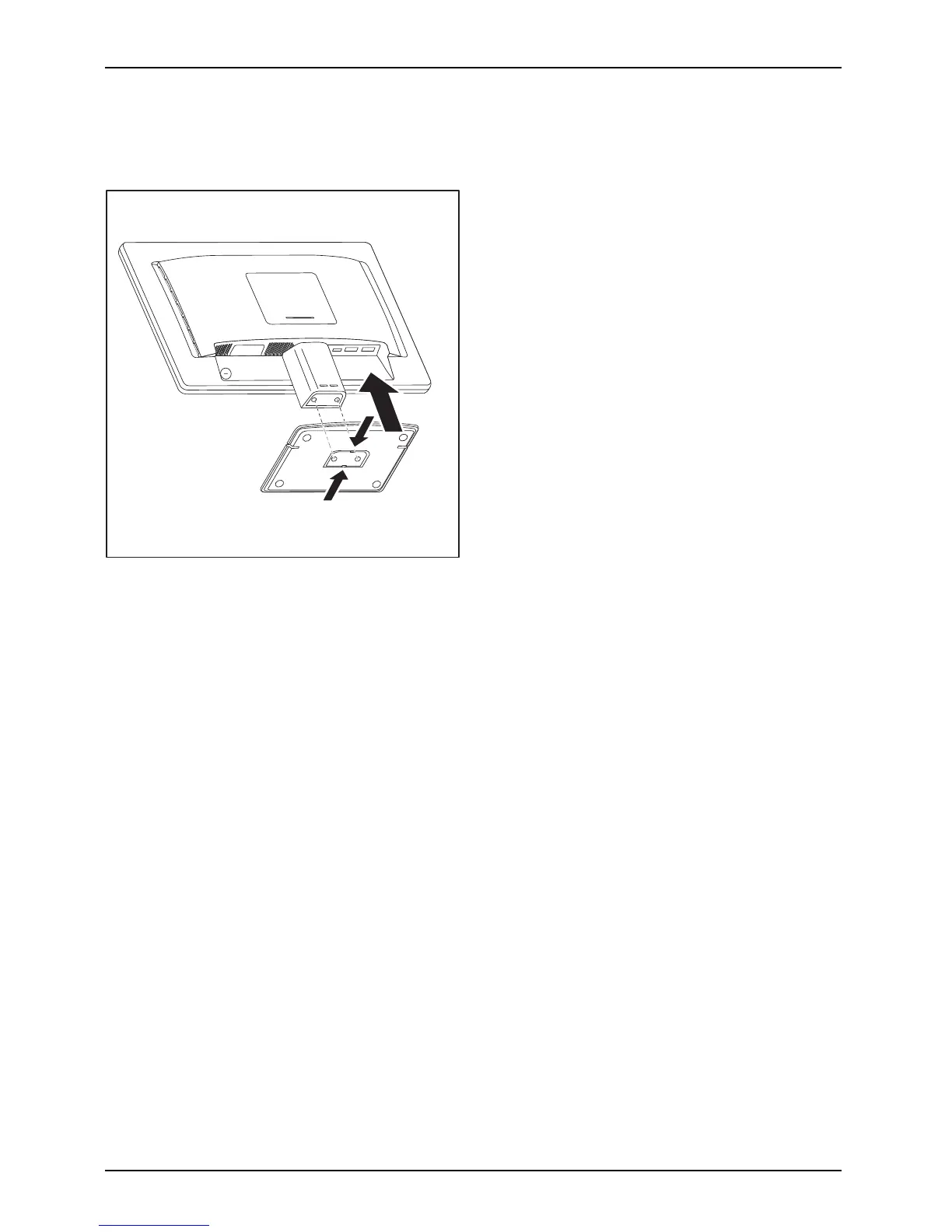

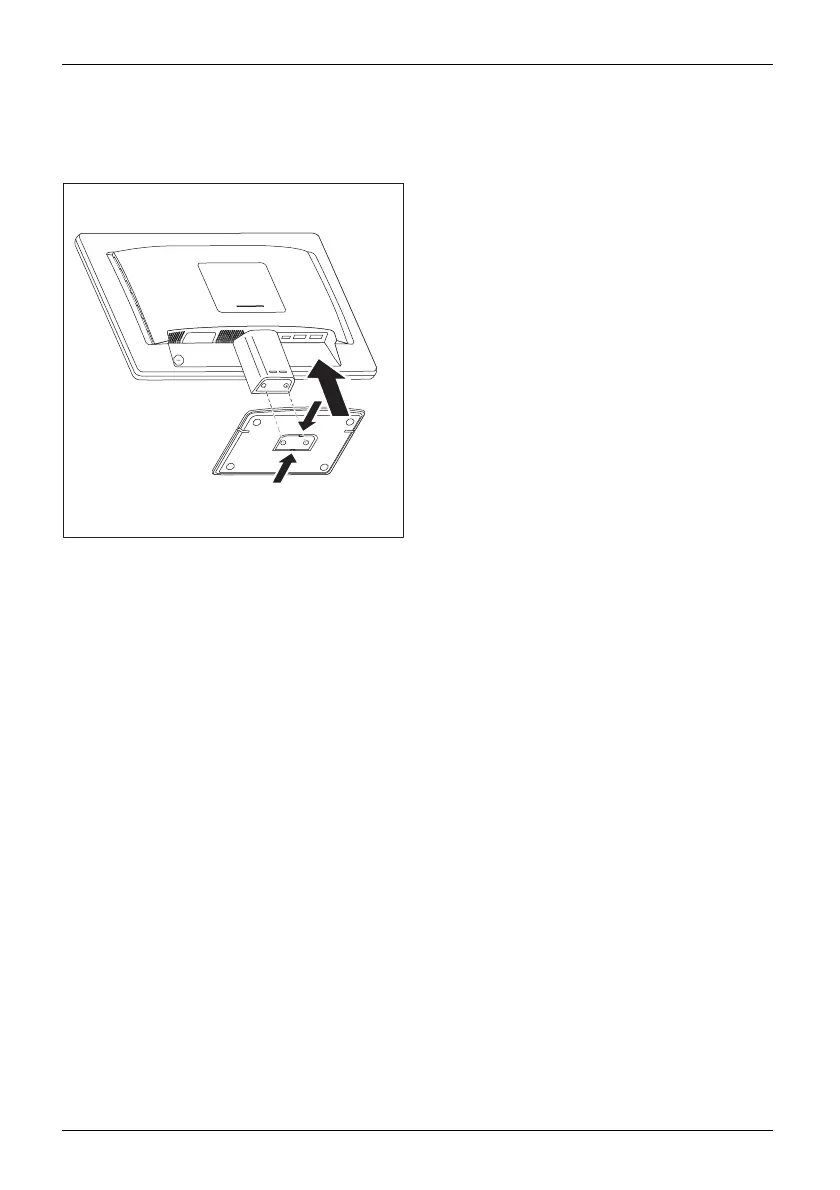

Mounting the baseplate
The baseplate is not preassembled at delivery.
1
2
1
► Push the locks on the baseplate together
(1) and insert the baseplate in the foot (2).
► Place the monitor in ope rating position.
Adjusting the inclination
The inclination of the mon itor can be adjusted by –5° (forward) and +20°
(backwards) from its vertical position.
► Hold the monitor with both hands on the left and right sides of the casing
and m ove it to the desired angle.
