2
1.1 Units

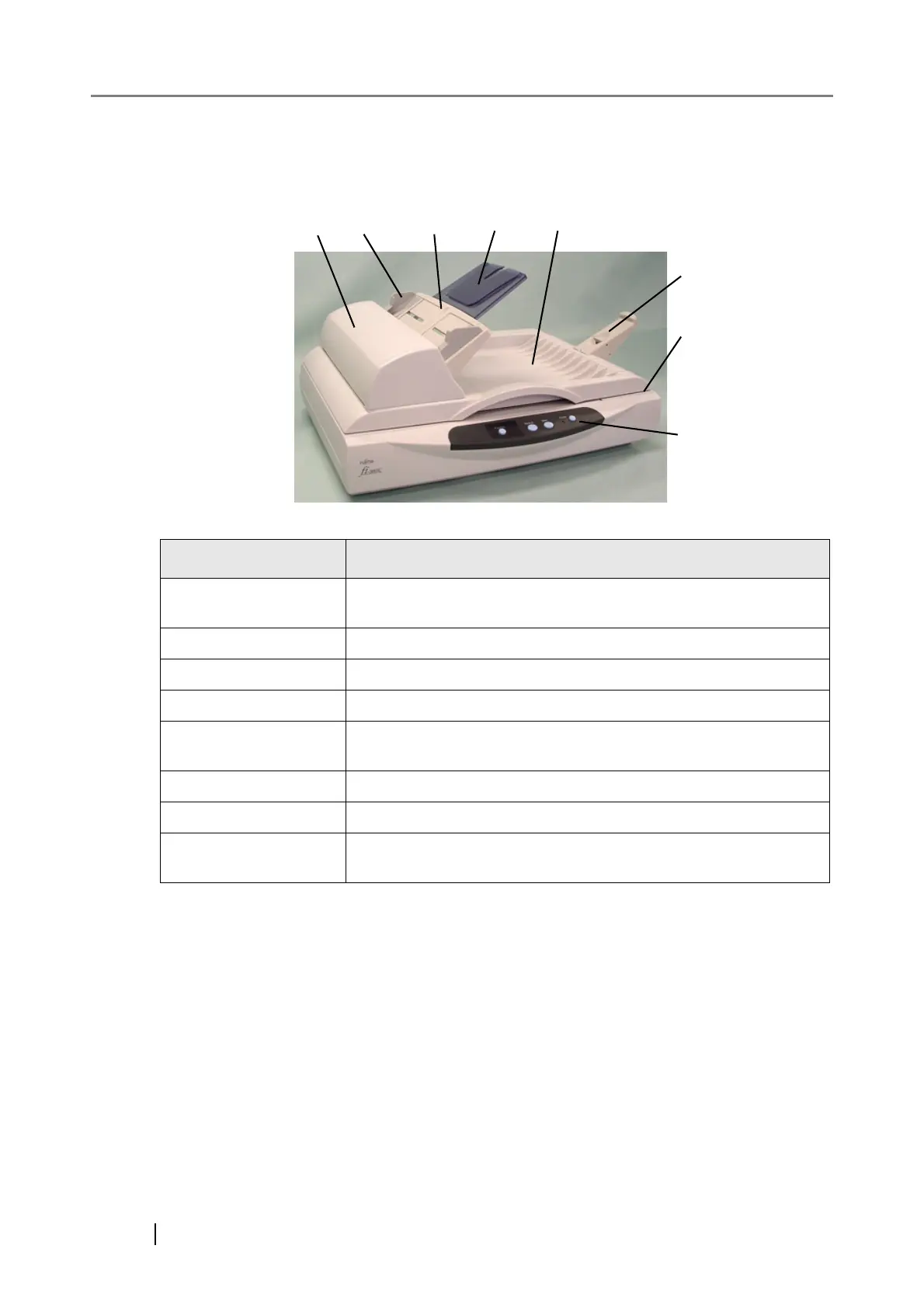

1. Front side
Part Function
1. Automatic docu-
ment feeder (ADF)
Automatically feeds documents one by one to the reading position in the
scanner.
2. Side guides Holds the documents straight.
3. ADF paper chute Holds the documents to be fed by the automatic document feeder (ADF).
4. Extension Extended when long documents are set.
5. Document cover Stacks the documents after being scanned by ADF.
Holds the document to be scanned on Flatbed.
6. Document stopper Prevents ejected documents from dropping off the scanners exit tray.
7. Flatbed Used when the ADF is not appropriate to scan the document.
8. Operator panel Turns on/off the scanner, starts scanning by [Send to] or [Scan] button, or
displays function number.
1
2
3
4
5
6
7
8
To Next Page
