2.2LoadingDocumentsontheADFforScanning(1)


1
2 3 4

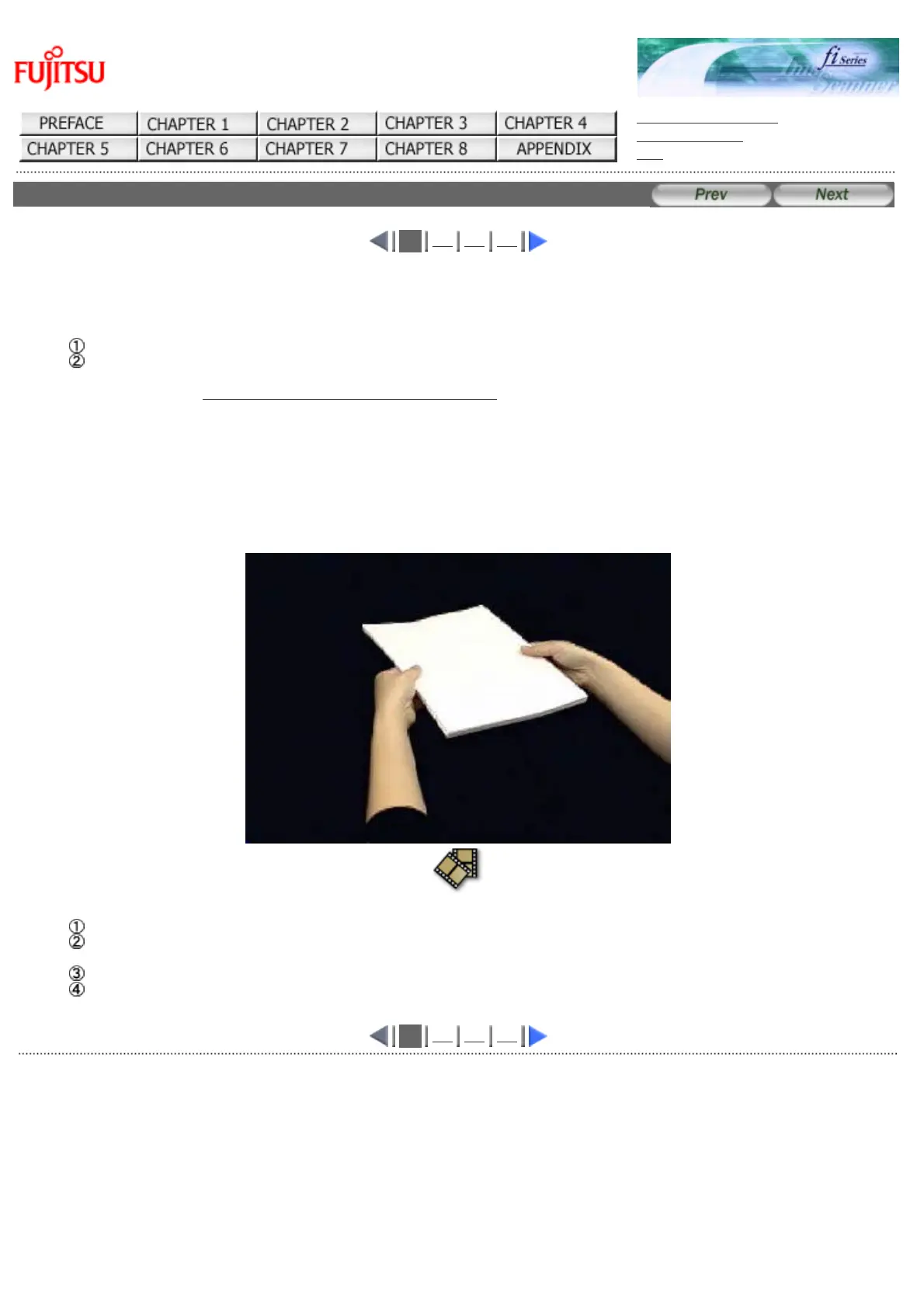

1. Align the edges of the documents.
Confirm that all the documents have the same width.
Check the number of sheets in the document stack.
The standard number of sheets that can be loaded on the scanner is as follows:
(For details, see
"7.3 Maximum Document Loading Capacity")
● A4-size paper or smaller that makes a document stack of 5mm or less
● Maximum 50 sheet at A4, 20 lb, or 80 g/m
2
2. Fan the documents as follows:
Lightly grip both ends of the document with both hands, and bend the document as follows.
Firmly holding the document with both hands, bend back the document as follows so that the bent section rises
up in the middle of the document as follows.
Repeat steps 1) to 2) a few times.
Rotate the document 90 degrees, and fan again.
1
2 3 4
AllRightsReservedCopyright2006©PFULIMITED
file://///Hd-htgle21/Manual/fi-5120C5220C-lynx2/OG/R03/contents/EN/02/c020201.htm2006/08/2915:59:52

Fujitsu fi-5220C Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	2 sec/page
Scanner type	Flatbed & ADF scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	SCSI, USB 2.0
Bundled software	-FJ TWAIN driver. -Scandall. -Adobe Acrobat. -ISIS Driver. -QuickScan (demo). -Soft IPC (demo). -VRS 4.1 Basic.
Dimensions (WxDxH)	302 x 569 x 229 mm
Power requirements	100-240 VAC
Power consumption (standby)	6 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Weight	8400 g
