NOTES:
• Setting of the external static pressure is switchable into modes by using the remote con-
troller.
• According to the resistance of the connecting duct, perform the setting of the external static
pressure with referring “Fan performance curve_2” above.
• The default setting is set at "Normal SP".

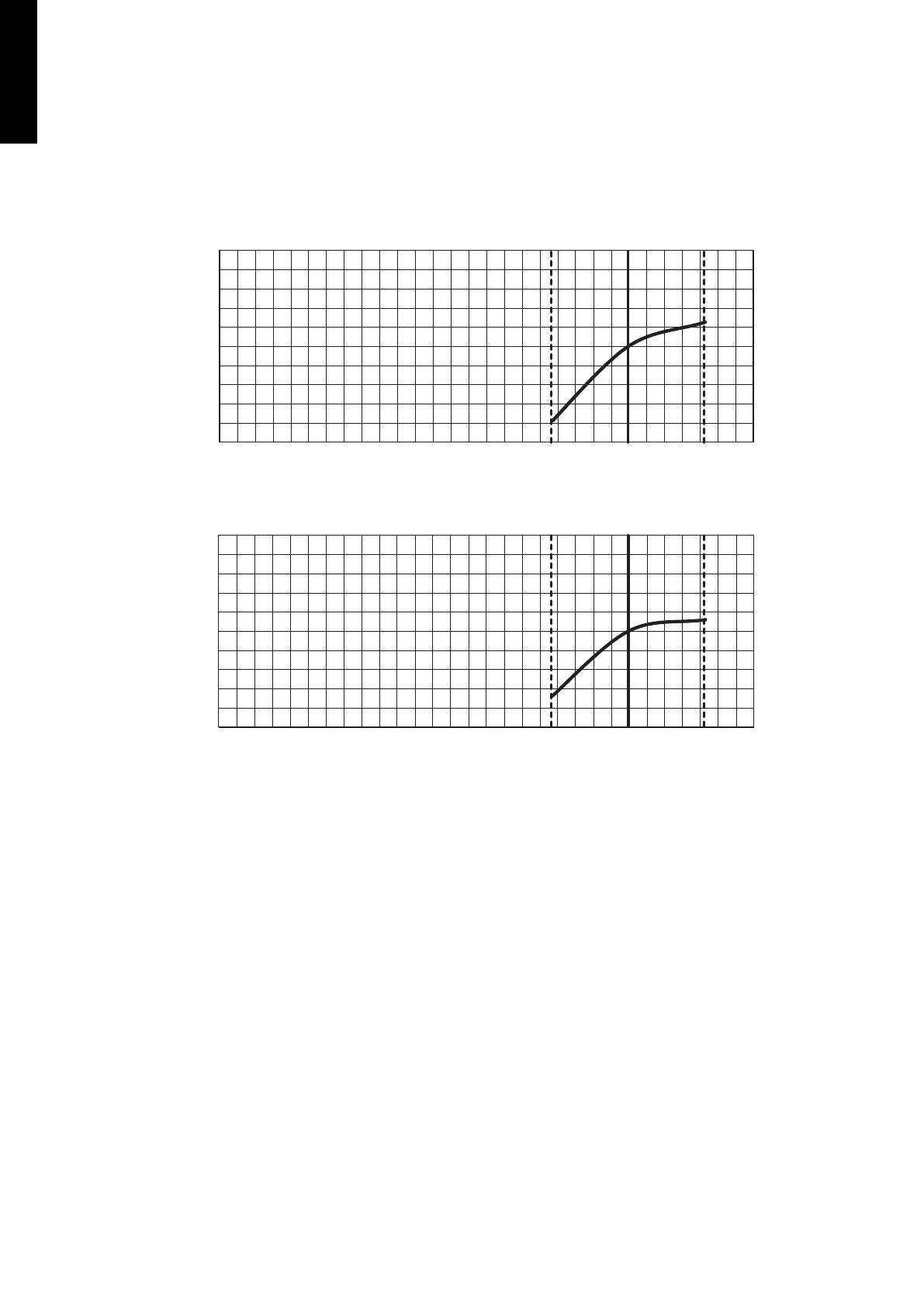

Characteristics of air volume and capacity
• Cooling
[l/s]
[m
3
/h]
Airflow
1,389556 695 833 972
1,111
1,250
2,000 2,500 3,000 3,500
4,000
4,500 5,000
100
105
95
Capacity [%]
• Heating
[l/s]
[m
3
/h]
Airflow
1,389556 695 833 972
1,111
1,250
2,000 2,500 3,000 3,500
4,000
4,500 5,000
100
105
95
Capacity [%]
DESIGN & TECHNICAL MANUAL
- 12 -
DUCT TYPE
ARHG72-90LHTA
