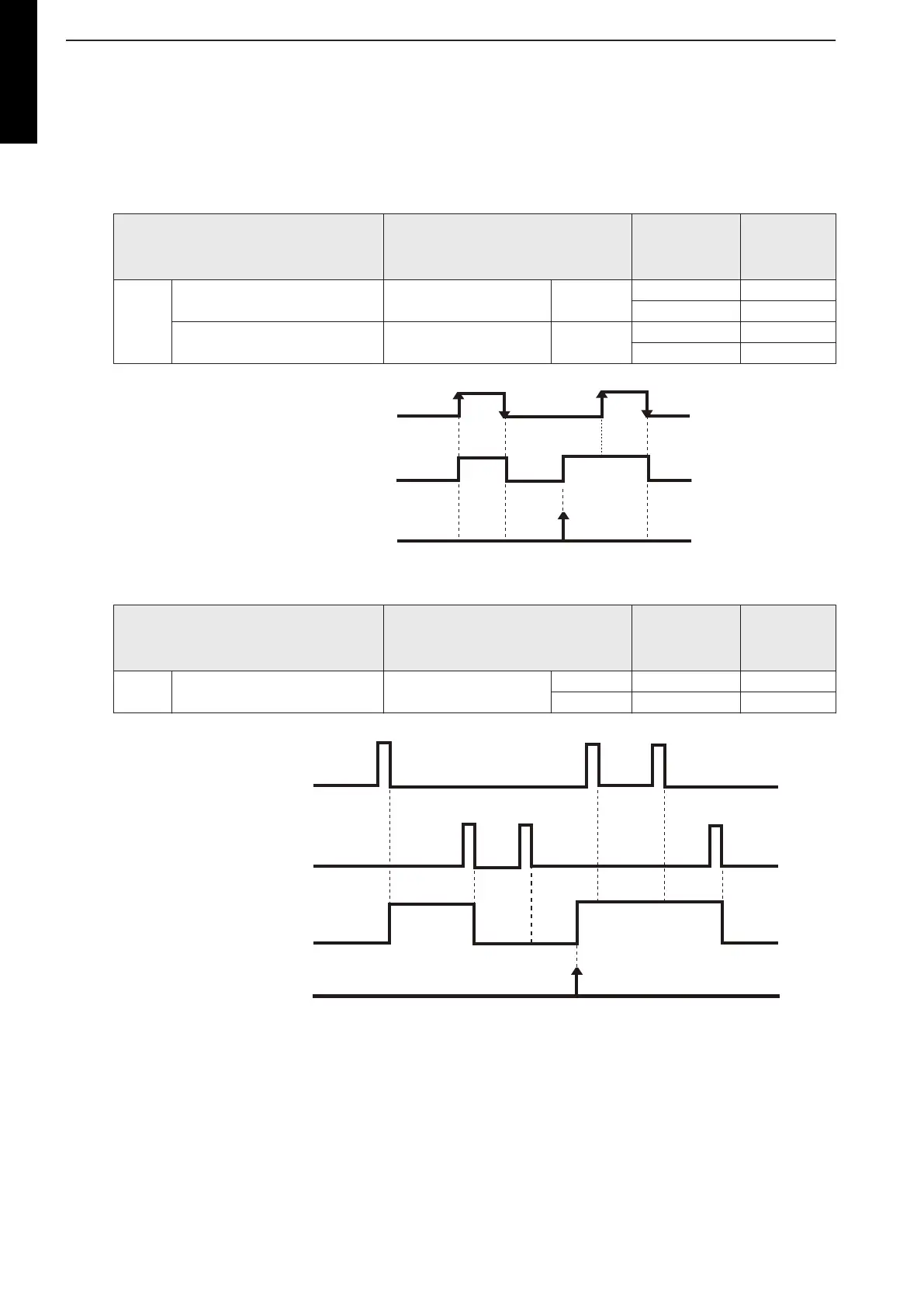

10-4. Details of function
¢
Control input function

When function setting is "Operation/Stop" mode 1
• In the case of "Edge" input
Function
setting /
Rotary SW of
External input and
output PCB
External input Input signal Command
46-00
- Input of indoor unit Terminal
Off → On Operation
On → Off Stop
60-00 / 1
External input and
output PCB
Input 1
Off → On Operation
On → Off Stop
Operation
Stop
Remote controller
On
Off
Indoor unit
On
Input
• In the case of "Pulse" input
Function
setting /
Rotary SW of
External input and
output PCB
External input Input signal Command
46-00 60-00 / 1
External input and
output PCB
Input 1 Pulse Operation
Input 2 Pulse Stop
On
On
Off
Operation
Stop
Remote controller
On
Off
Indoor unit
Input 1
Input 2
NOTES:
• The last command has priority.
• The indoor units within the same remote controller group operates in the same mode.
DESIGN & TECHNICAL MANUAL
- 26 -
DUCT TYPE ARHG72-90LHTA
