Fujitsu GENERAL ARHG72LHTA - Dimensions; Models: ARHG72 LHTA and ARHG90 LHTA

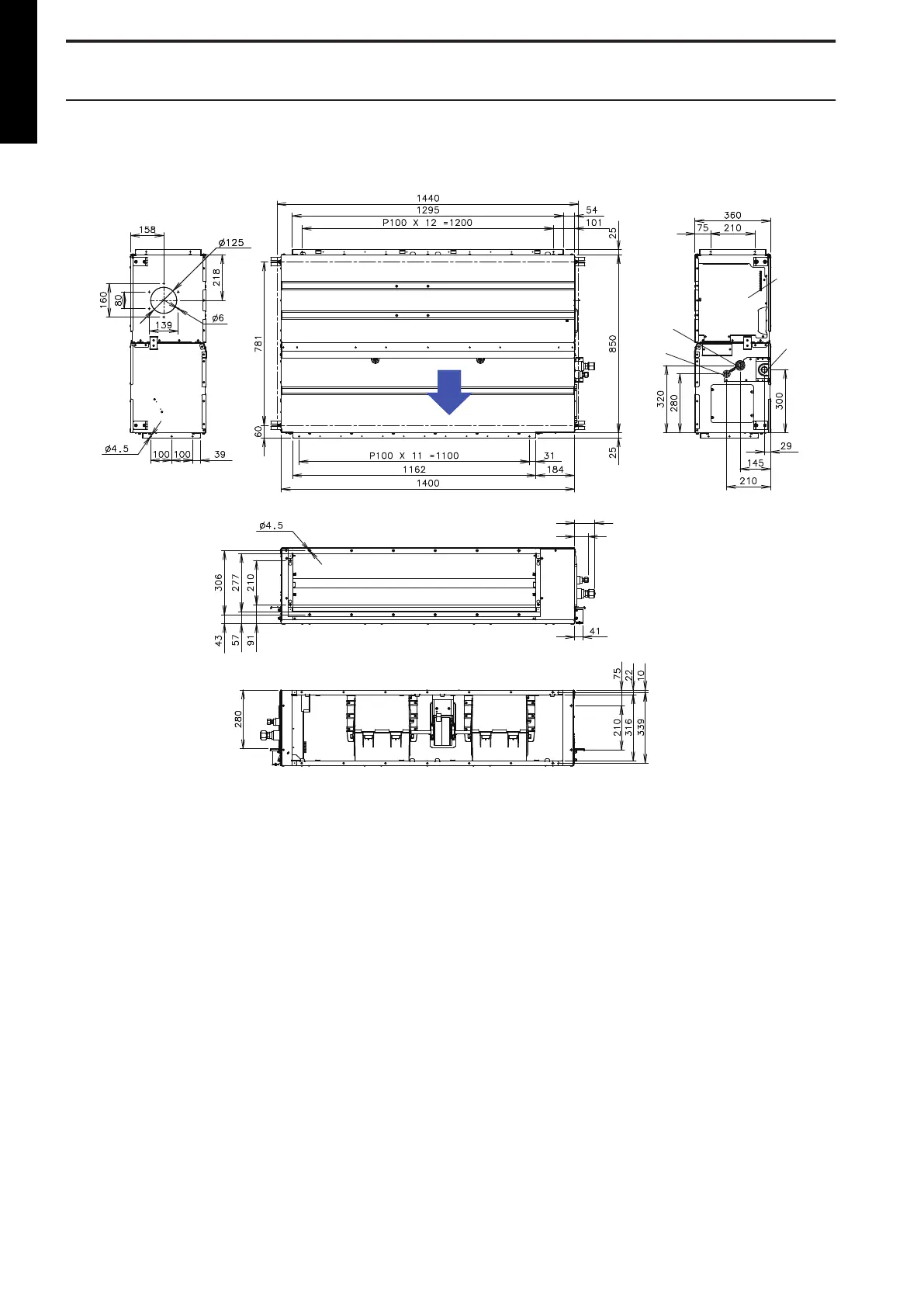

3. Dimensions
3-1. Models: ARHG72LHTA and ARHG90LHTA
Unit: mm
Gas pipe
Drain port
Control box
Liquid pipe
Air
Side view (R)Top viewSide view (L)
Front view
Rear view
90
88
DESIGN & TECHNICAL MANUAL
- 4 -
DUCT TYPE ARHG72-90LHTA
