Ports and operating elements
Ports and operating elements
Ports
This chapter presents the individual hardware components of your device. This will provide
you with an o verview o f the ports and operating elements on the device. Please familiarise
yourself with these components before starting to work with your device.
Notebook open
Camera(optional)MicrophoneLCDscreenLoudspeakerApplicationkeysStatusindicatorsLoudspeakerKeyboardTouchpadandtouchpadbuttonsFingerprints ensorScreenlockL oudspeaker portMicrophone portFireW ire portON/OFFswitchforradiocomponents
5
7
4
7
4
6
2
2
3
8
1
9
13
15
10
11
12
14
16

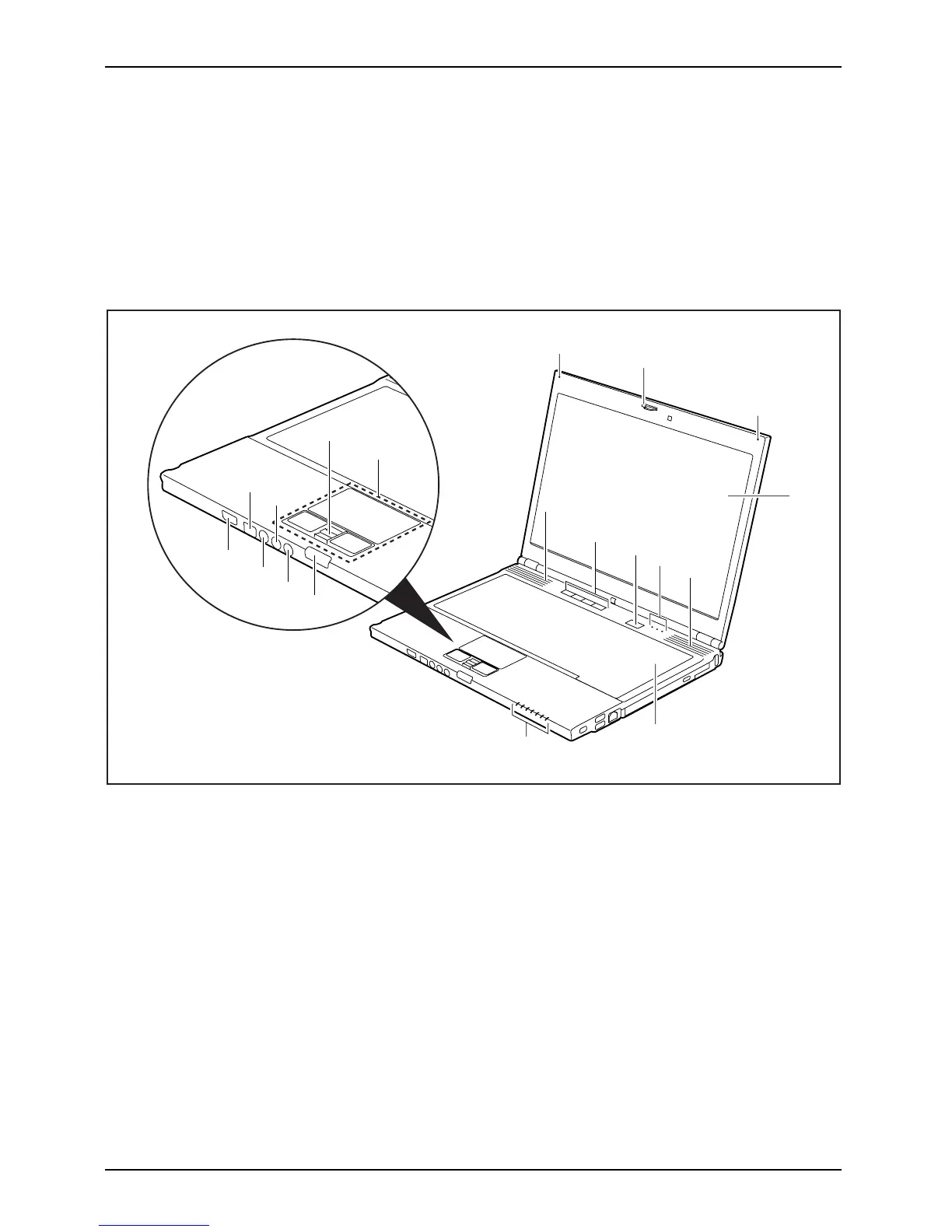

1 = Camera (optional)
2 = Microphone
3 = LCD screen
4 = Loudspeaker
5 = Application keys
6 = ON/OFF switch
7 = Status indicators
8 = Keyboard
9 = Touchpad and touchpad buttons
10 = Fingerprint sensor
11 = Screen lock
12 = S-Video out socket
13 = Microphone port
14 = Loudspeaker port
15 = FireWire po rt
16 = ON/OFF switch fo r radio c omponent s
