Fujitsu LifeBook S6420 - Removing Cover; Removing Memory Modules

Removing and installing components
during servicing

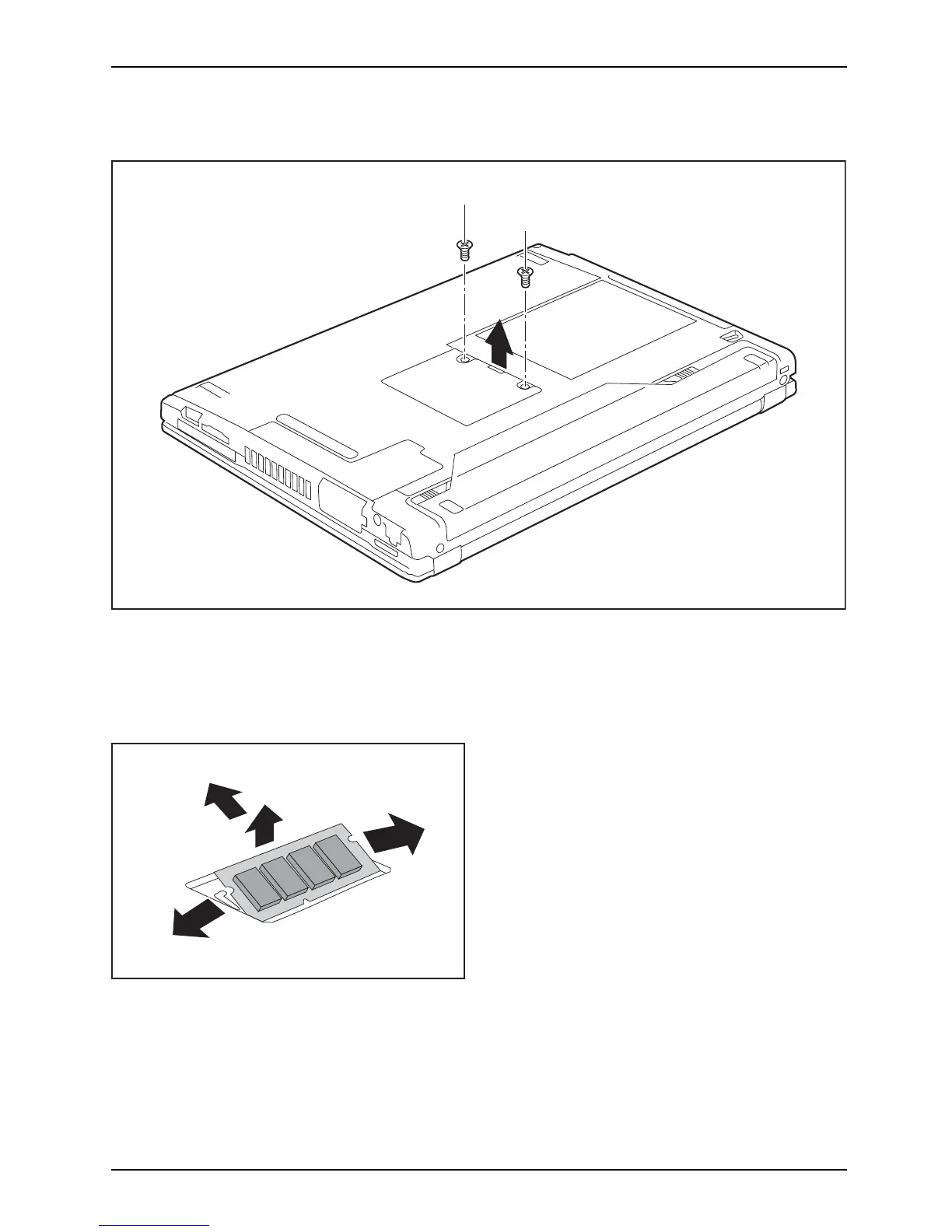

Removing cover
1
1
2
► Remove the screw
s(1).
► Pull the cover off the notebook (2).
Removing memory modules
3
2
1
1
► Carefully push the two mounting
clips outwards (1).
MemoryexpansionMemorymodule

The memory module snaps upw ards (2).
► Pull the memory module out of its slot
in the direction of the arrow (3).
A26391-K273-Z220-1 -7619 , edition 1 27
