Installing a second non-hot-plug hard disk Hard disks

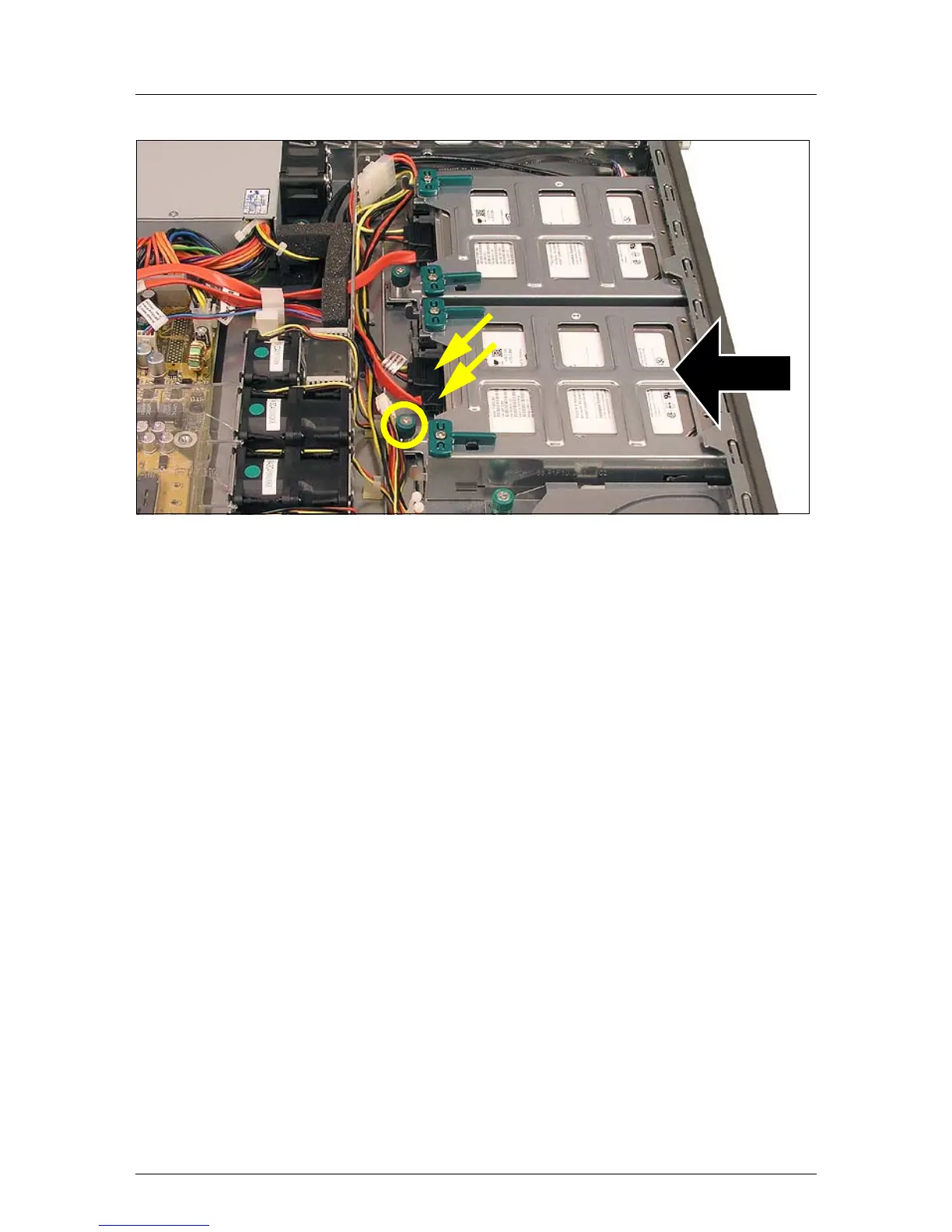

Figure 11: Inserting the new hard disk
Ê Push the mounting frame with the new hard disk into the bay and fasten the
mounting frame with a knurled screw (see circle) to the housing.
Ê Connect the data cable to the hard disk (see the cabling plans in the
Appendix).
Ê Connect the power cable to the hard disk (see the cabling plans in the
Appendix).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 37 et seqq. .
