RemoteView Service Board S2 LP RemoteView components

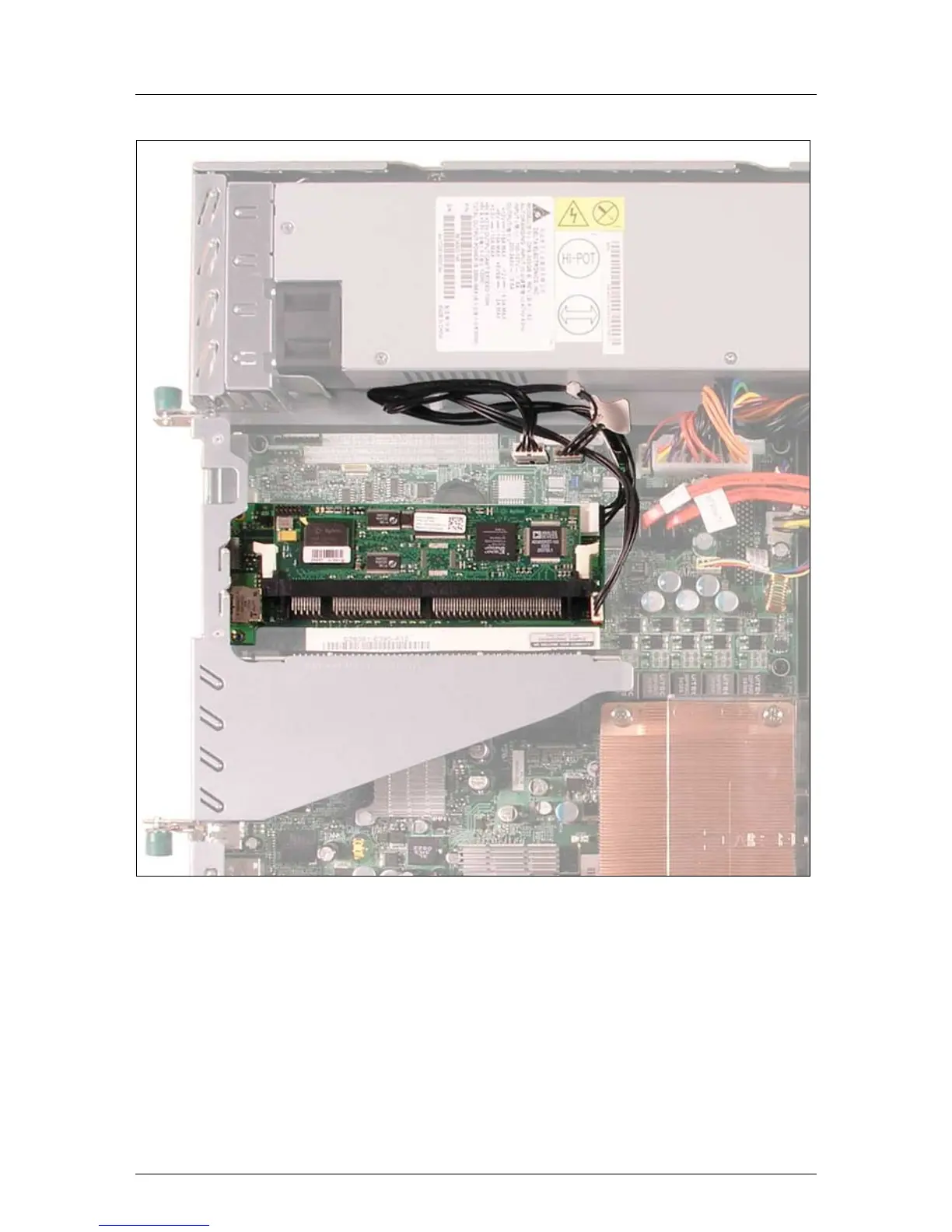

Figure 17: Connecting cables to the system board
Ê Connect the data cable to the connector CN9 (1) and the power cable to the
connector CN8 (2) on the system board.
