Fujitsu Primergy RX100 S3 - 2.1 Preparation on the Server

40 Options Guide U41617-J-Z156-1-76
Cabling Appendix

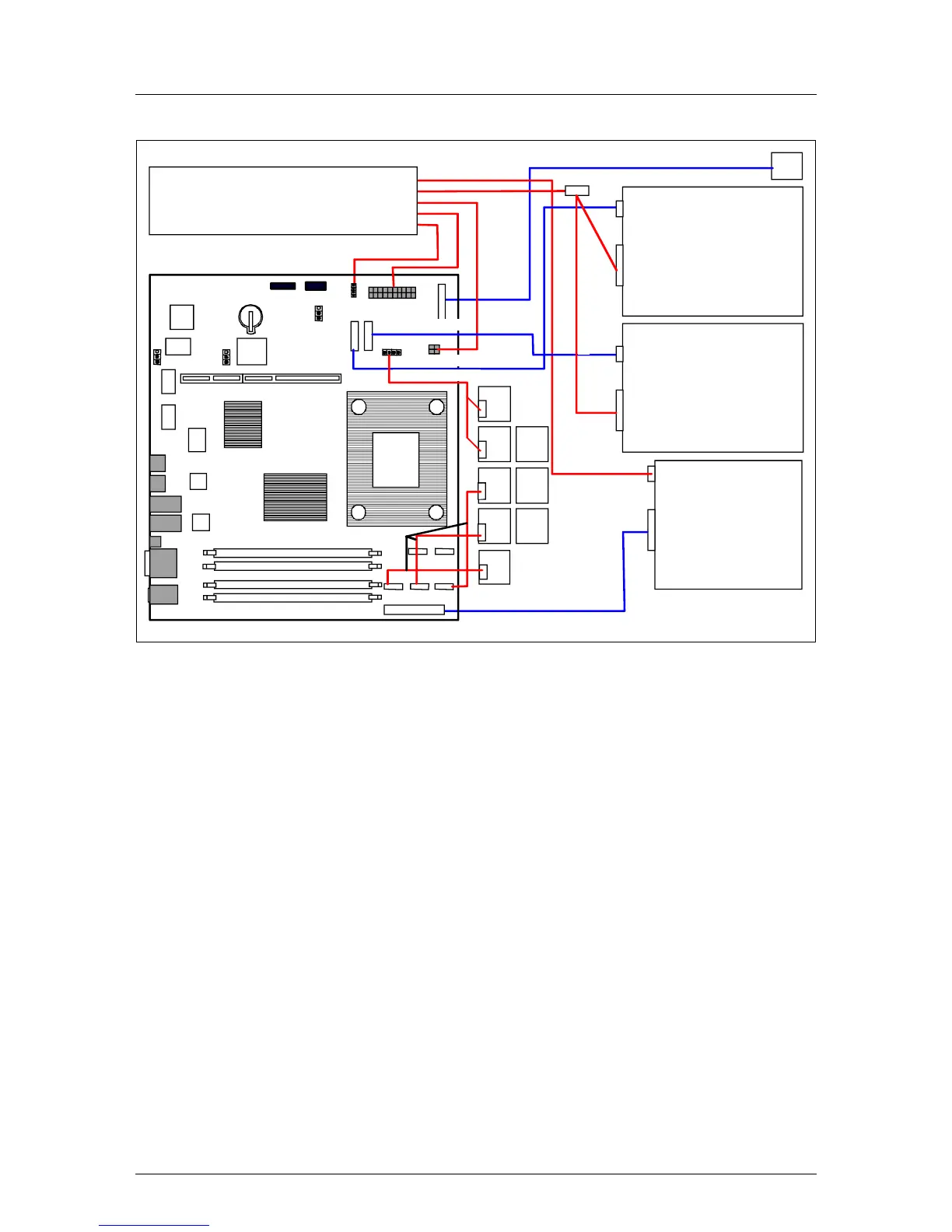

Figure 22: Cabling of the non-hot-plug variant
Non-hot-plug
hard disk 1
Non-hot-plug
hard disk 2
CD-ROM / DVD drive
LED board
PSU
CN8
CPU
DIMM2B
DIMM1B
DIMM2A
DIMM1A
JP4
CN12
CN11
CN14
CN15
CN19
IDE 1
CN16
CN9
LAN 1
LAN 2
SATA1
CN21
CN20
CN22
SATA2
JP2
JP1
CN17
Fan 5
Fan 4
Fan 3
Fan 2
Fan 1
Power supply unit
P5
P4
P2
P3
P1
A3C40052663
A3C40066751
A3C40066751
A3C40068699
A3C40068694
3 x A3C40069325
A3C40071367
