Fujitsu Primergy RX100 S3 Service Supplement

26 Service Supplement RX100 S3
Replacing the processor Replacement routines
© cognitas. Gesellschft für Technik-Dokumentation mbH 2005 Pfad: L:\RX100_S3\RX100S3_ss\RX100S3_ss_e\RX100S3_ss_e.k04

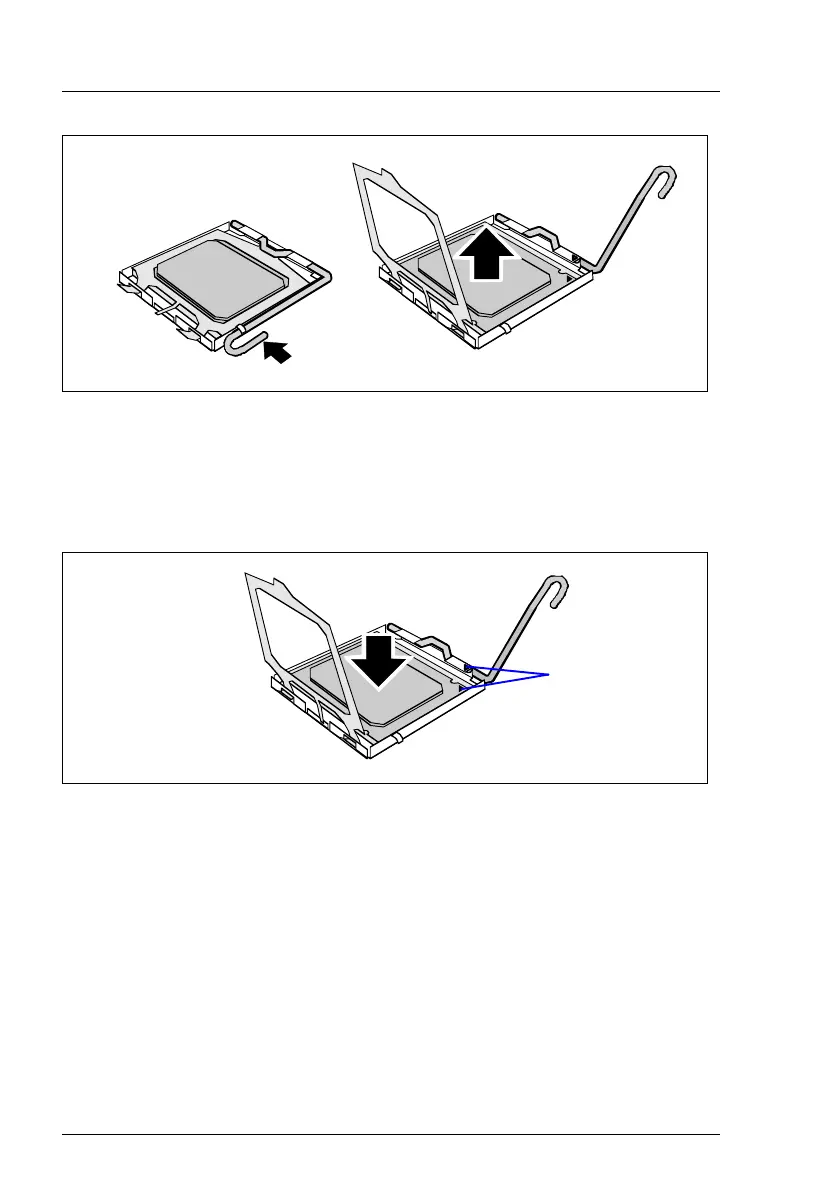

Figure 10: Removing an old processor
Ê Press down the lever (1) and unhook it.
Ê Fold up the frame.
Ê Lift the installed processor carefully out of the socket (2).
Figure 11: Inserting a new processor
Ê Remove the protective cap from the bottom side of the new processor.
Ê Position the new processor over the socket and then carefully press it into
the socket (1).
V CAUTION!
The processor can only be installed in one particular direction. Note
the marking on one of the corners. To avoid damaging the pins or the
processor, do not force it into the socket.
1
2
1
a
